Installation Procedure

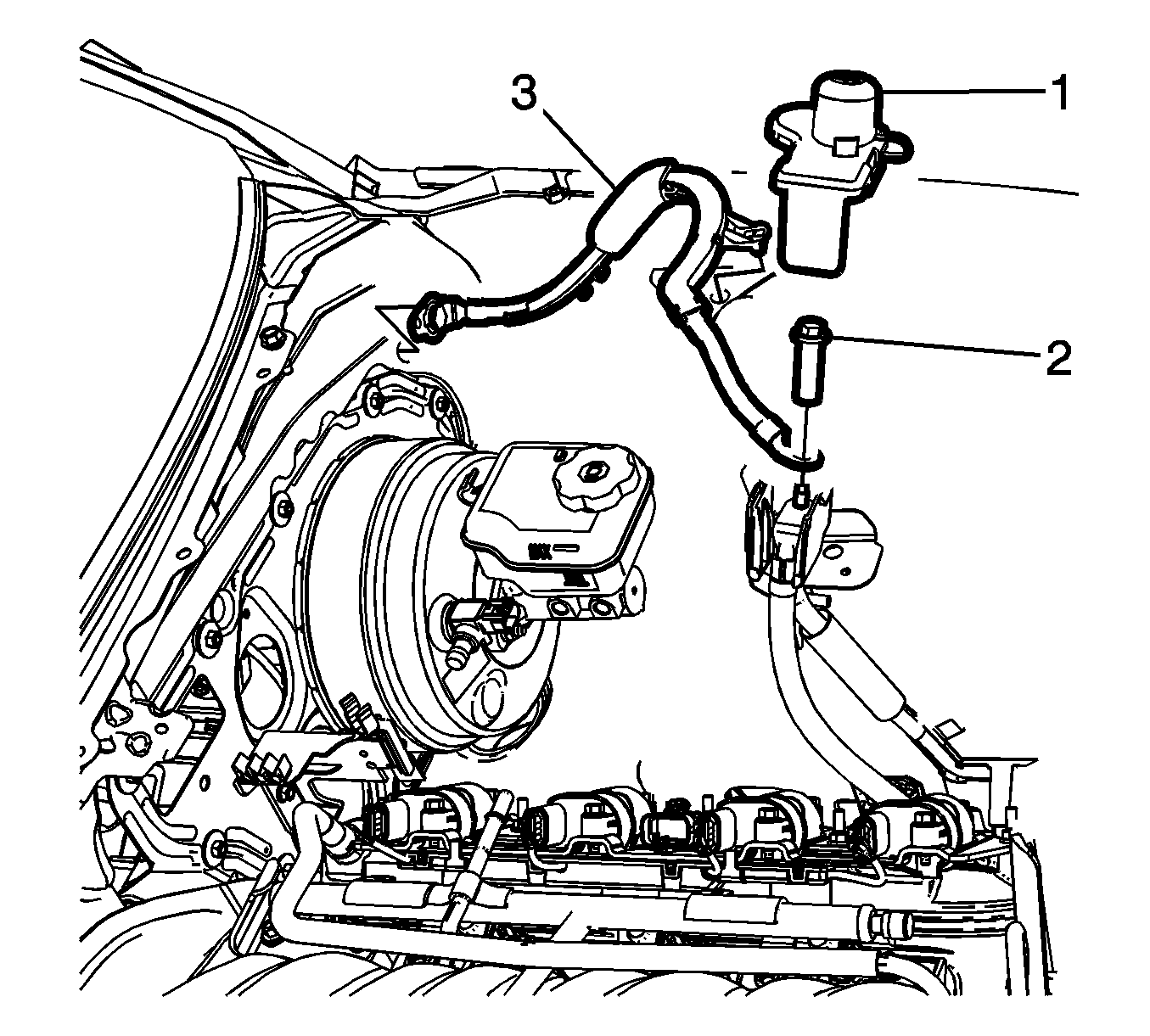

Fig 1: Battery Post Cover

Courtesy of GENERAL MOTORS CORP.

CAUTION:

Install the battery positive extension cable (3) to the junction block and tighten the retainer (2) to 15 N.m (11 lb ft).
Install the junction block cover (1).

Fig 2: Battery Positive Retainer Nut

Courtesy of GENERAL MOTORS CORP.

Install the battery positive cable to the battery positive extension cable bolt and tighten the nut (1) to 5 N.m (44 lb in).
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
