Installation Procedure

    Fig 1: Fuel Pump Flow Control Module
    GM2549062Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel pump flow control module (1) and the harness retainer (2) to the underside of the battery tray (3). Refer to Fuel Pump Flow Control Module Replacement .
    2. Fig 2: Battery Tray Mounting Bolts
    GM2549028Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

  2. Install the battery tray mounting bolts (1) and tighten to 25 N.m (18 lb ft).

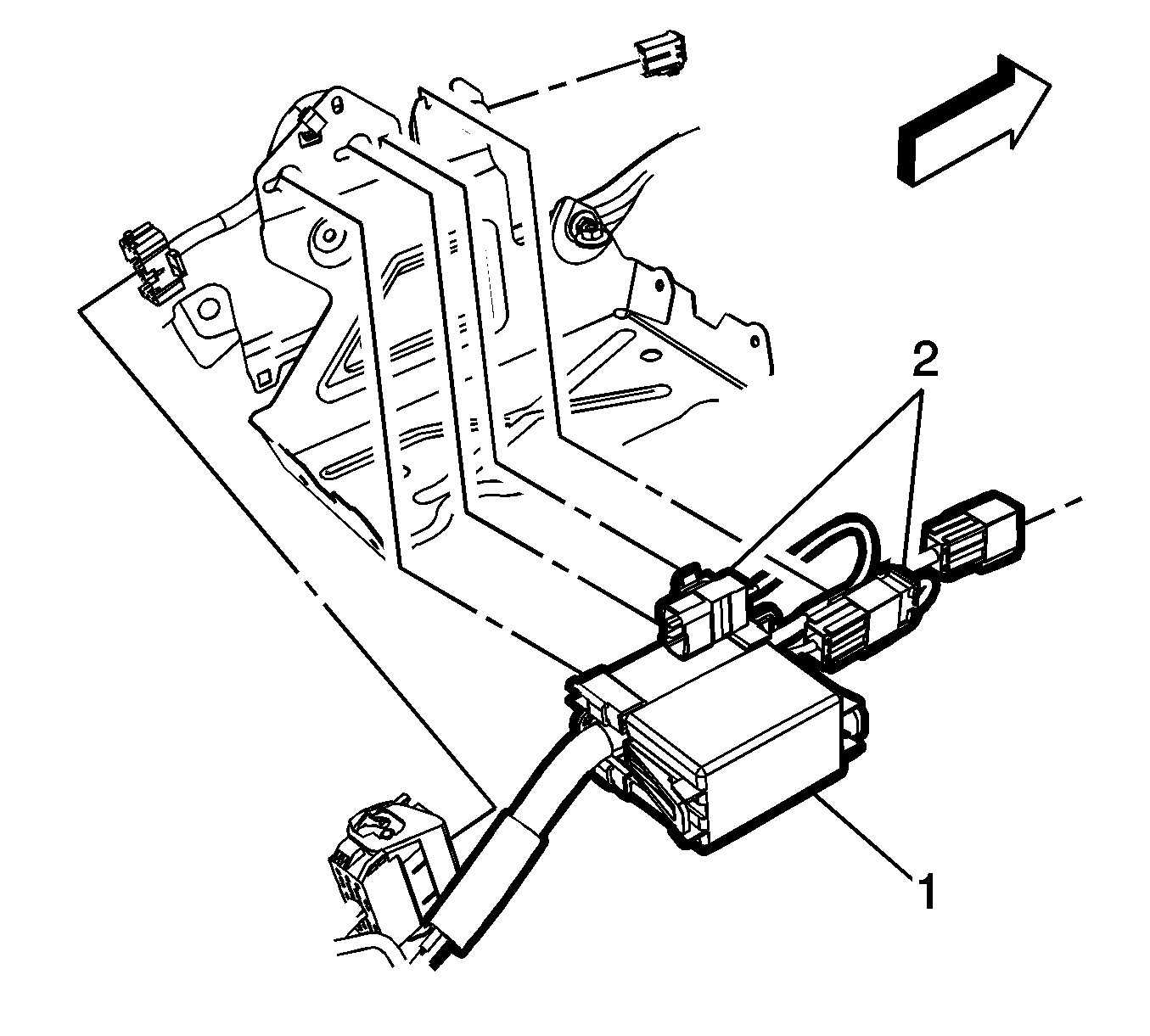

    3. Fig 3: Rear Electrical Center
    GM2549026Courtesy of GENERAL MOTORS CORP.
  3. Install the rear electrical center (1) and body harness connectors (2) to the battery tray retainers.
  4. Install the battery. Refer to Battery Replacement .
