Removal Procedure

    WARNING:

    Refer to Battery Disconnect Warning .

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .

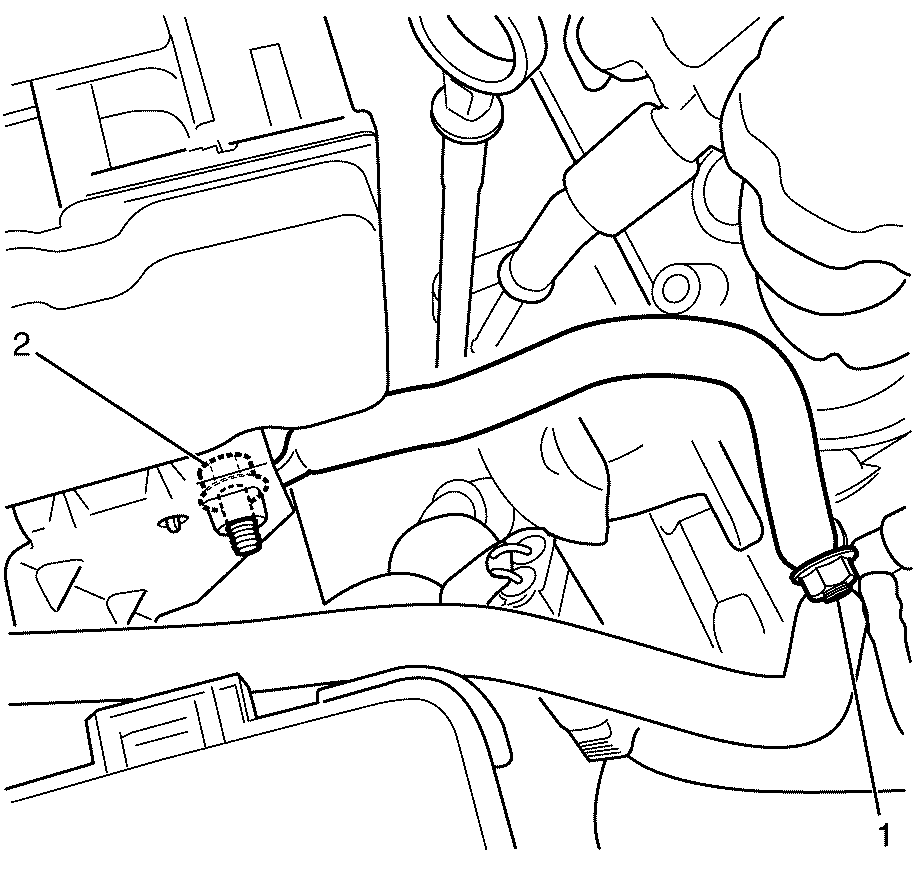

    2. Fig 1: Cylinder Head Ground Stud Retaining Nut
    GM2180631Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine ground strap to cylinder head ground stud retaining nut (1).
  3. Remove the engine ground strap to electronic brake control module mounting bracket retaining bolt (2).
  4. Remove the engine ground strap from the vehicle.
