Radio Antenna Module Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

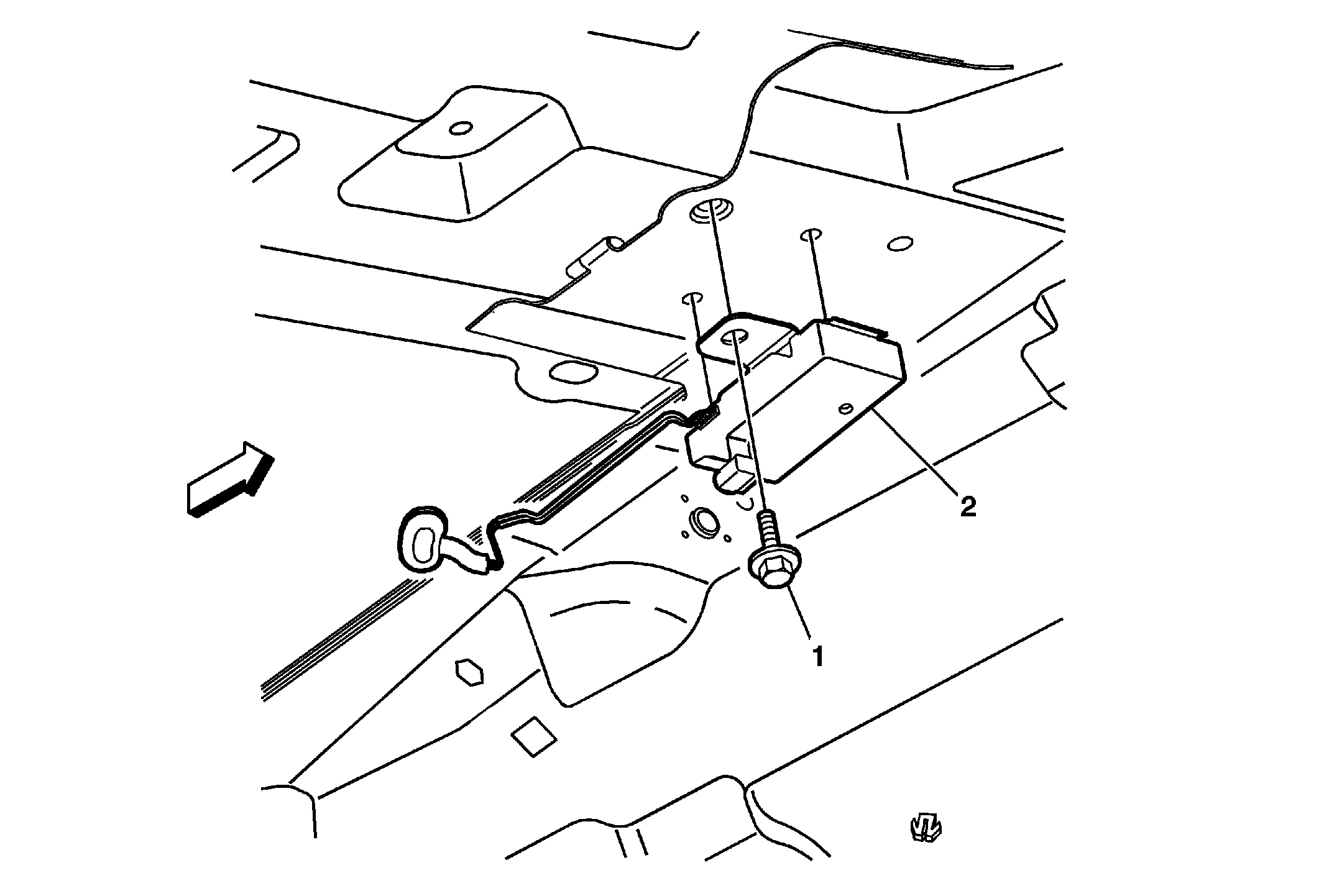

Fig 1: Radio Antenna Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Lower the rear of the headliner trim panel to access the antenna amplifier. Refer to Headlining Trim Panel Replacement or the sunroof panel trim panel, if equipped. Refer to Sunroof Panel Trim Panel Replacement
1	Radio Antenna Module Bolt CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Radio Antenna Module Assembly Procedure Disconnect the electrical connection. Disconnect the antenna cable from the rear glass.

Callout

Component Name

Preliminary Procedure:
Lower the rear of the headliner trim panel to access the antenna amplifier. Refer to Headlining Trim Panel Replacement or the sunroof panel trim panel, if equipped. Refer to Sunroof Panel Trim Panel Replacement

Radio Antenna Module Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Radio Antenna Module Assembly

Procedure

Disconnect the electrical connection.
Disconnect the antenna cable from the rear glass.
