Front Fog Lamp Bulb Replacement (Base/SS)

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

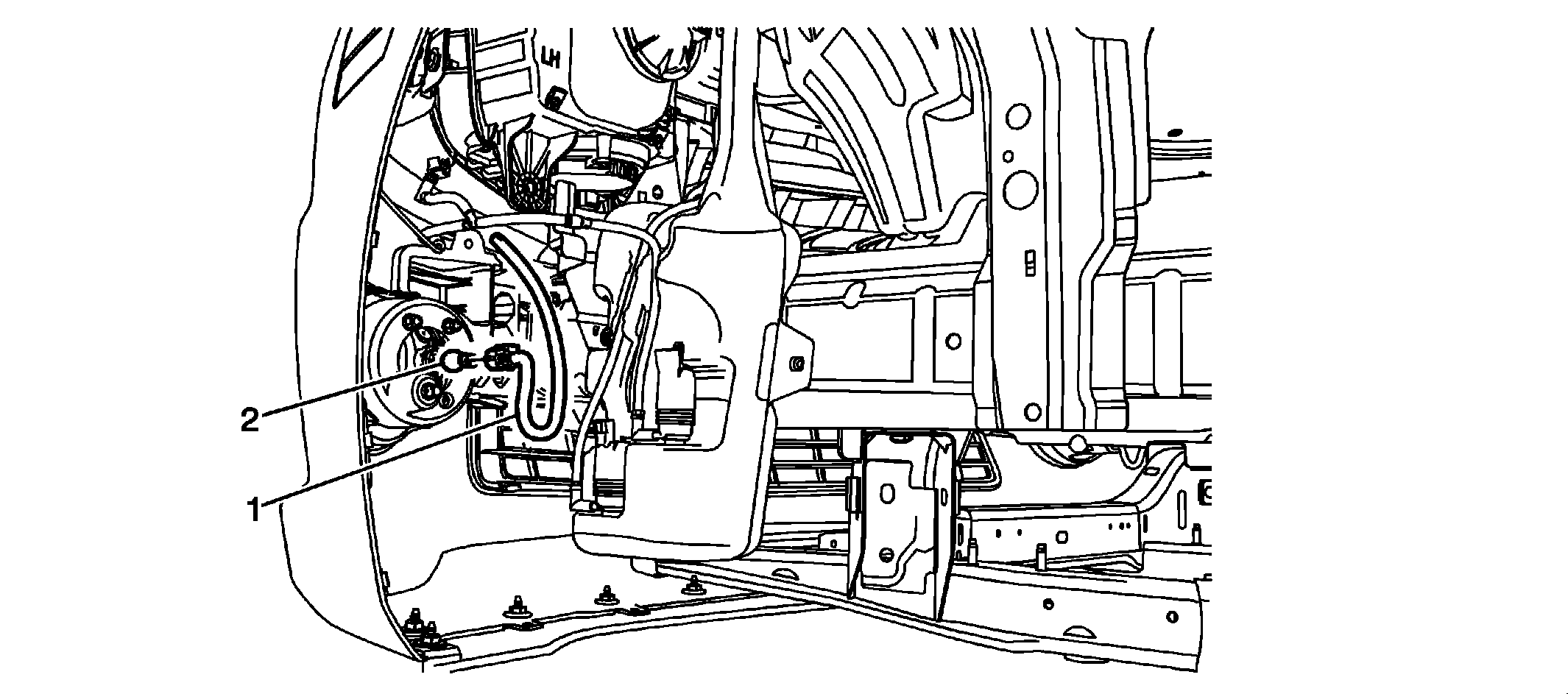

Fig 1: Front Fog Lamp Bulb (Base/SS)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Front Fog Lamp Electrical Connector Tip: Disconnect the fog lamp electrical connector from the fog lamp projector.
2	Front Fog Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Tip: Release the fog lamp bulb from the electrical harness connector.
