Installation Procedure

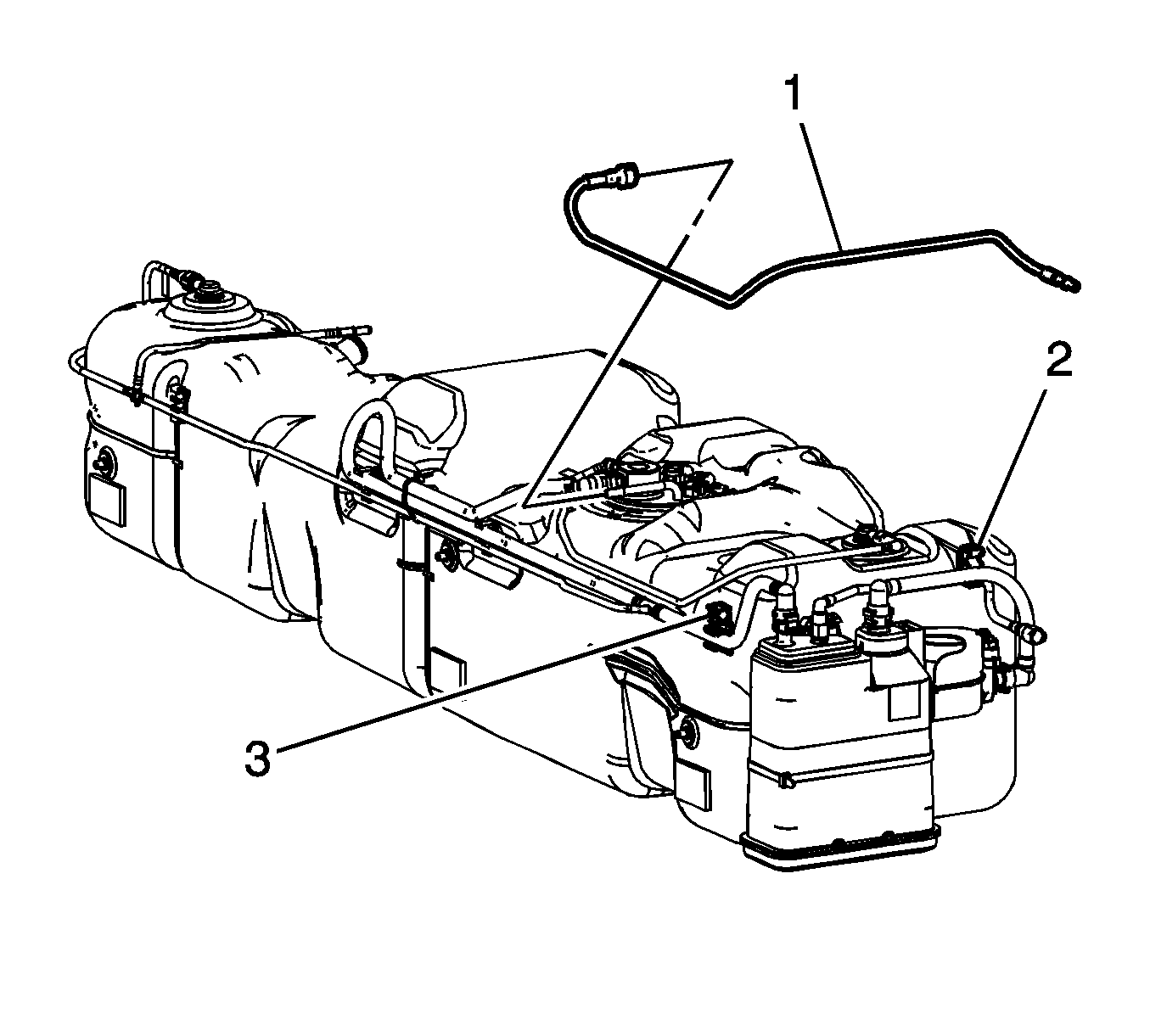

    Fig 1: Fuel Feed Pipe And Quick Connect Fitting
    GM1938263Courtesy of GENERAL MOTORS CORP.
  1. Install and route the fuel feed pipe (1) under the EVAP front pipe.
  2. Connect the fuel feed pipe quick connect fitting to the fuel tank module. Refer to Plastic Collar Quick Connect Fitting Service .
  3. Install the fuel feed pipe to the fuel tank clips (2 and 3).
  4. Install the fuel tank. Refer to Fuel Tank Replacement (E26) , Fuel Tank Replacement (Without E26) .
