Left Side of Engine Components




Powertrain Component Views

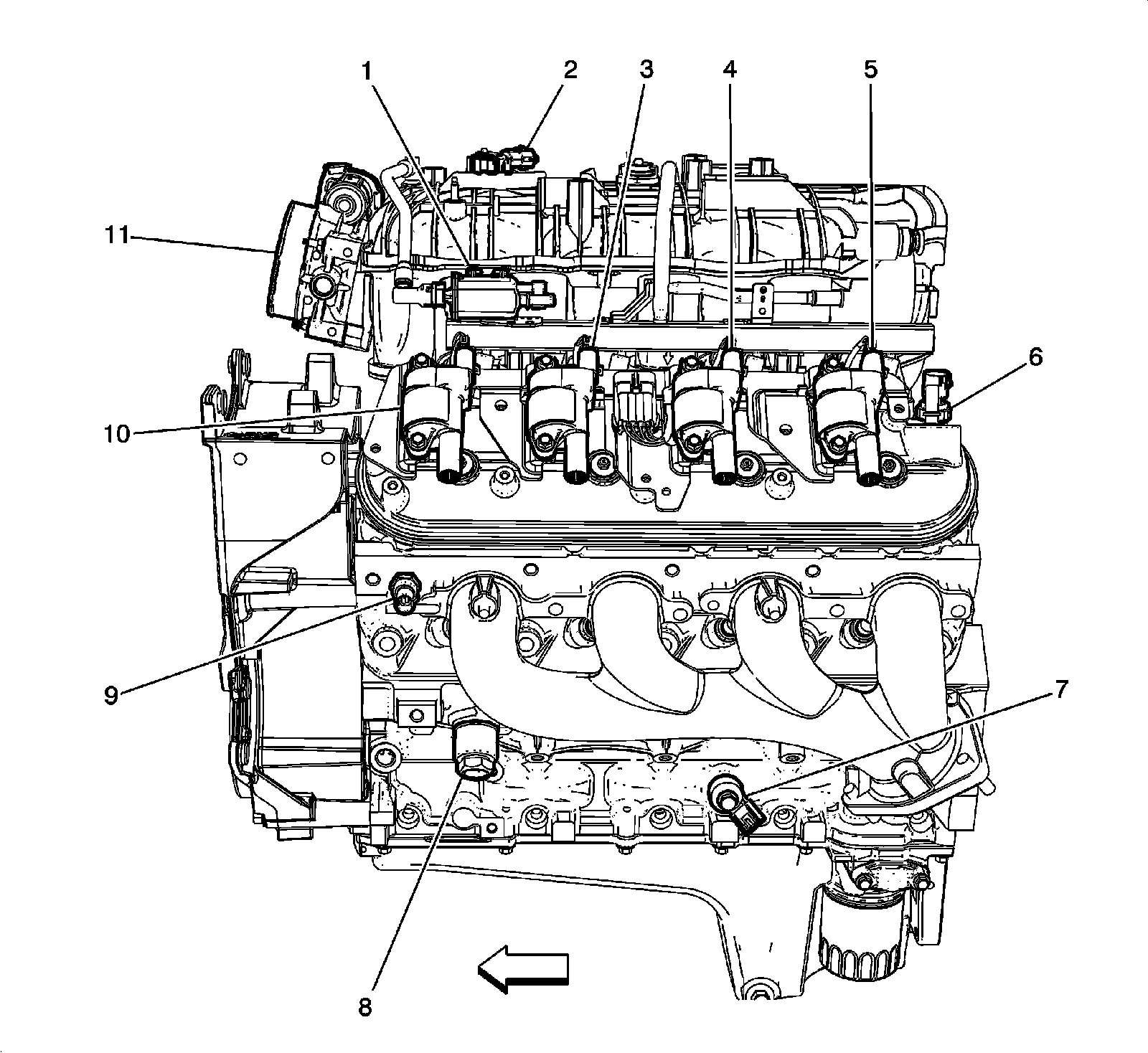

Left Side of Engine Components (LH9)




1 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Ignition Coil 3
4 - Ignition Coil 5
5 - Ignition Coil 7
6 - Engine Oil Pressure (EOP) Sensor
7 - Knock Sensor (KS) 1
8 - Engine Block Heater Connector (K05)
9 - Engine Coolant Temperature (ECT) Sensor
10 - Ignition Coil 1
11 - Throttle Body
