OnStar Wiring Schematics

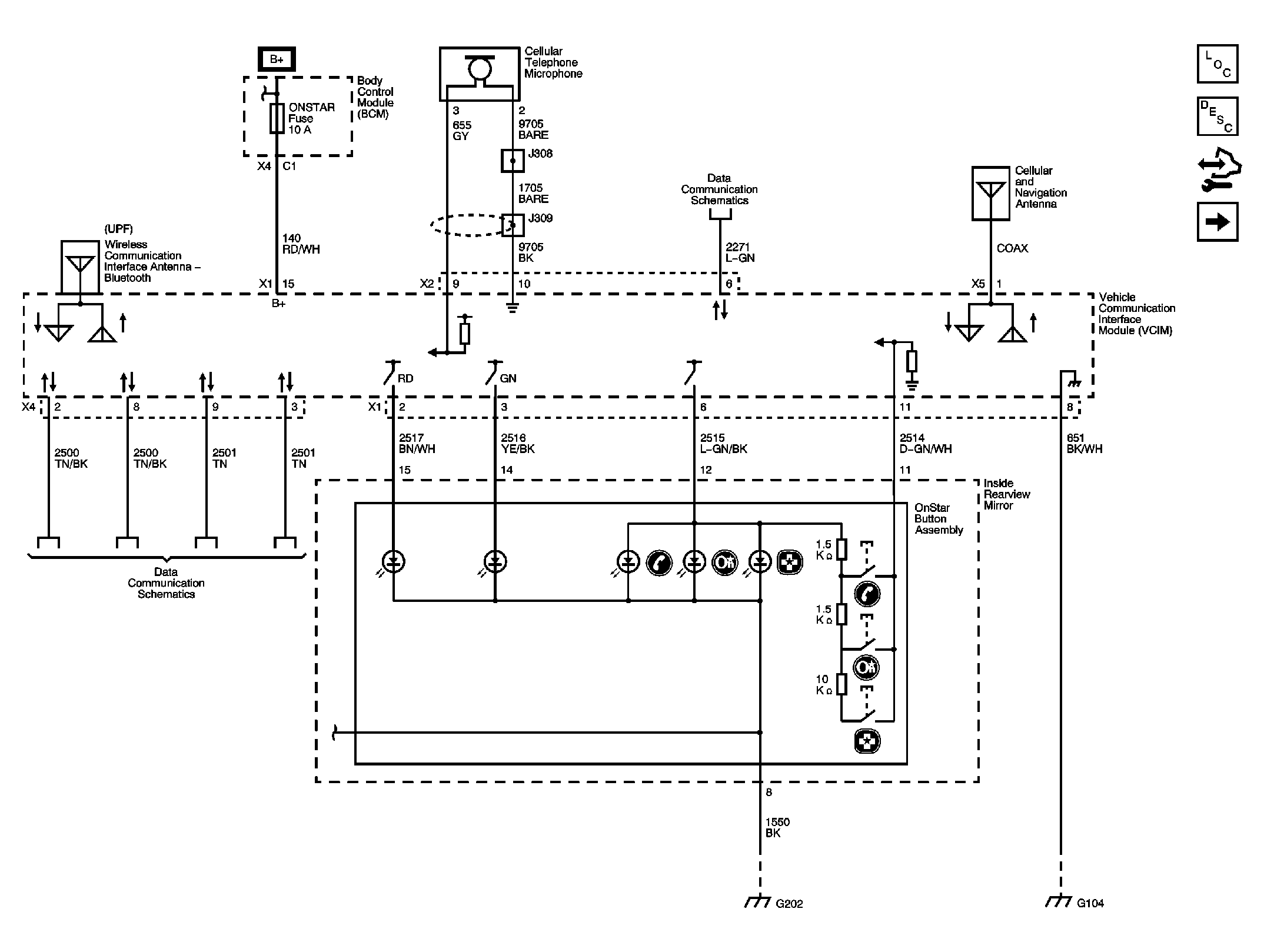

Fig 1: Power, Ground, Serial Data, Antenna, and User Inputs Wiring Schematic
Courtesy of GENERAL MOTORS CORP.

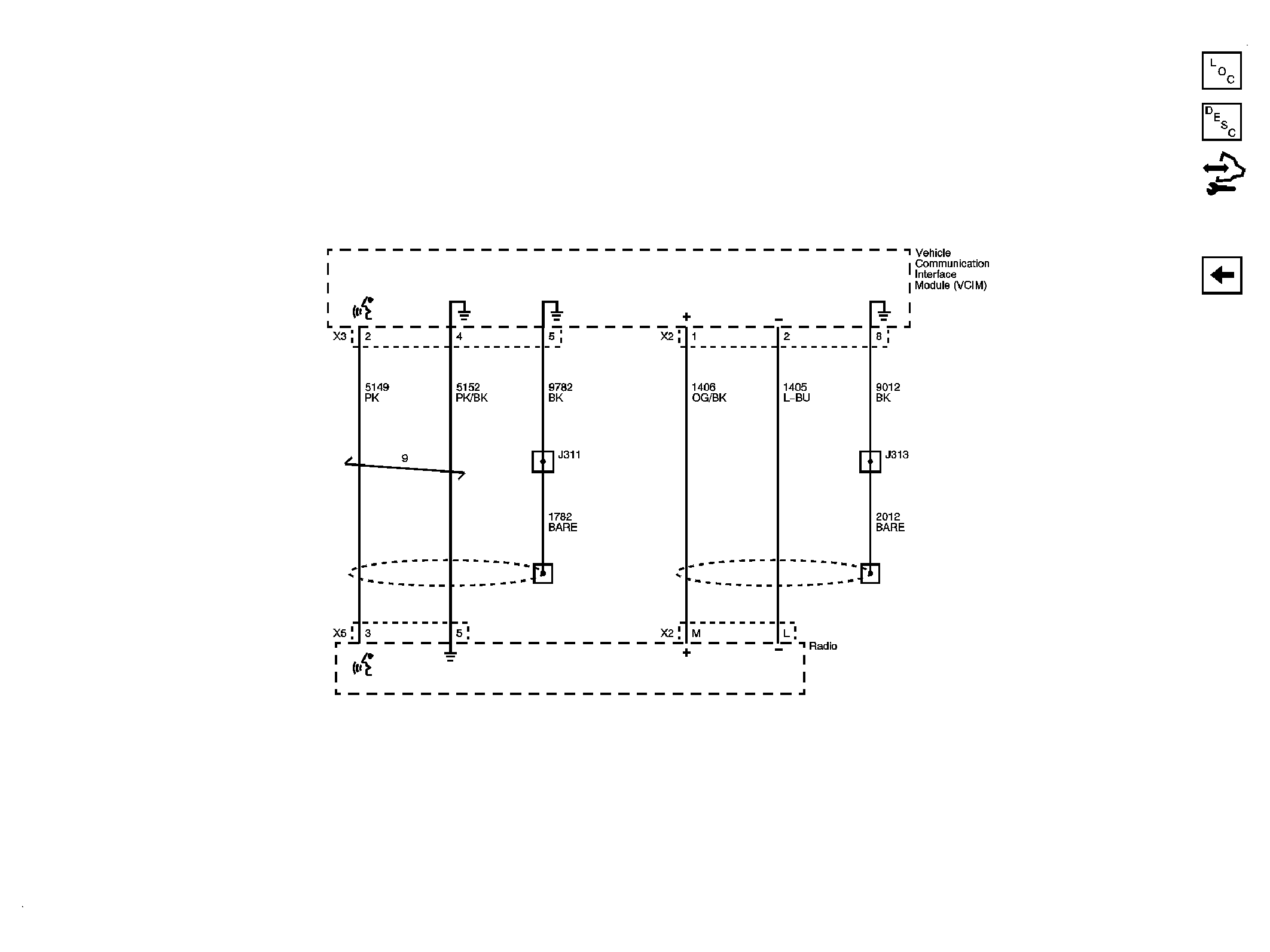

Fig 2: Audio Output Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
