Fuel Pump Flow Control Module Relay X2




Component Connector End Views

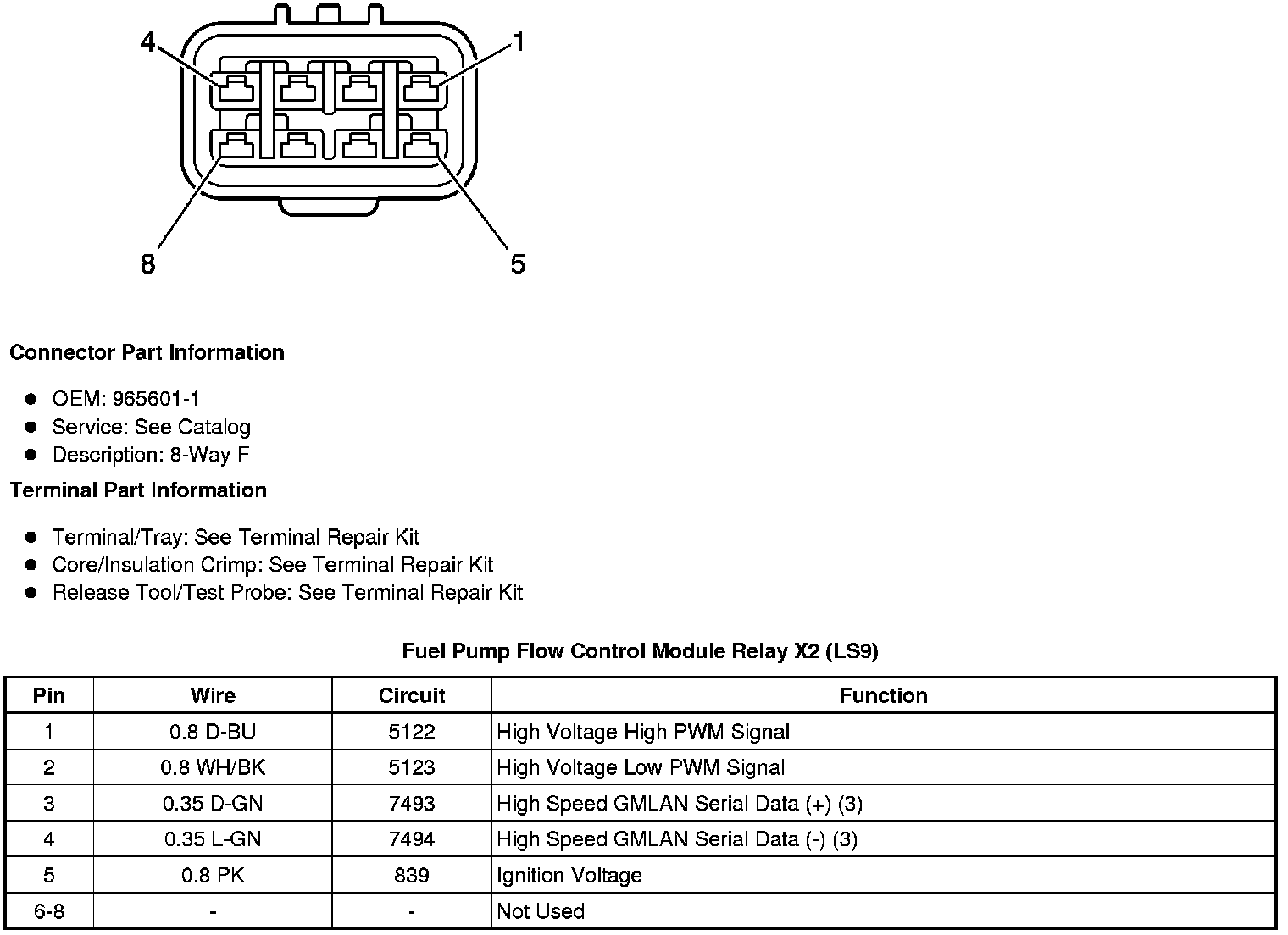

Fuel Pump Flow Control Module Relay X2 (LS9)
