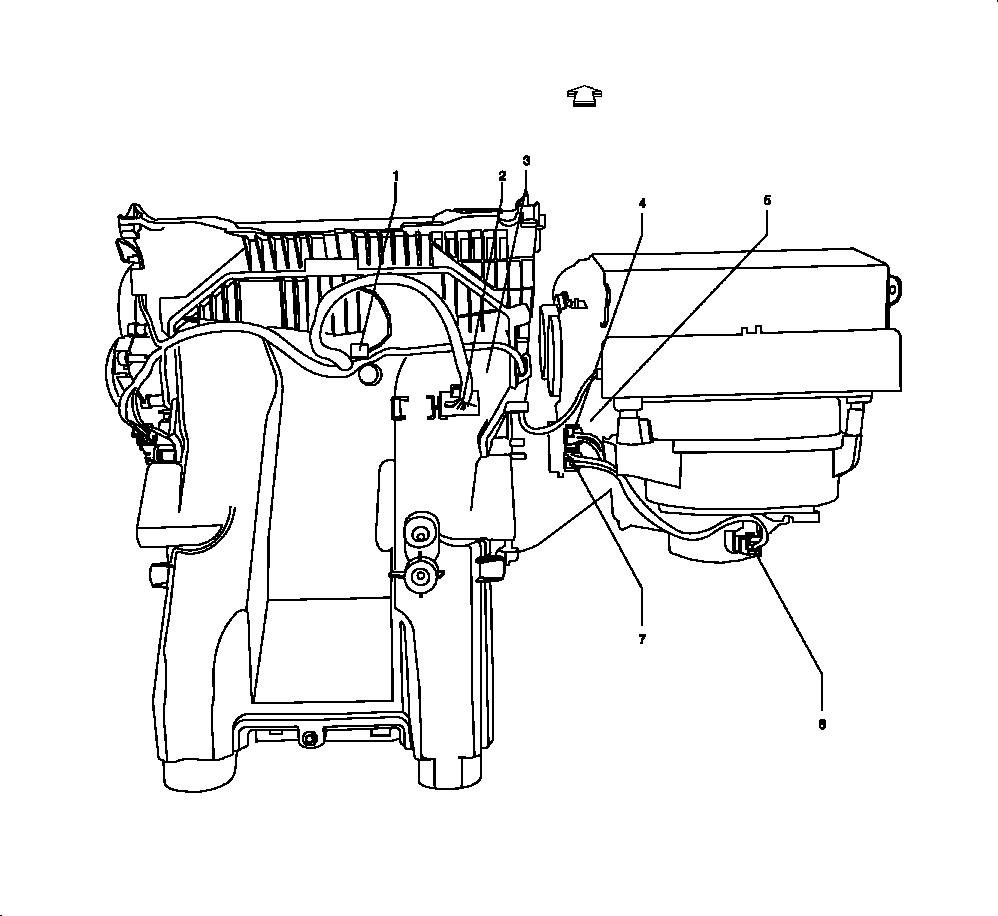

Identifying Behind the Center of the I/P Components (C68)
Identifying Behind the Center of the I/P Components (C68)
| Component Name | Callout |
|---|---|
| X212 Instrument Panel Harness and HVAC Harness | 1 |
| X3 HVAC Control Module X3 | 2 |
| K33 HVAC Control Module | 3 |
| X2 Blower Motor Control Module X2 | 4 |
| K8 Blower Motor Control Module | 5 |
| M8 Blower Motor | 6 |
| X1 Blower Motor Control Module X1 | 7 |
