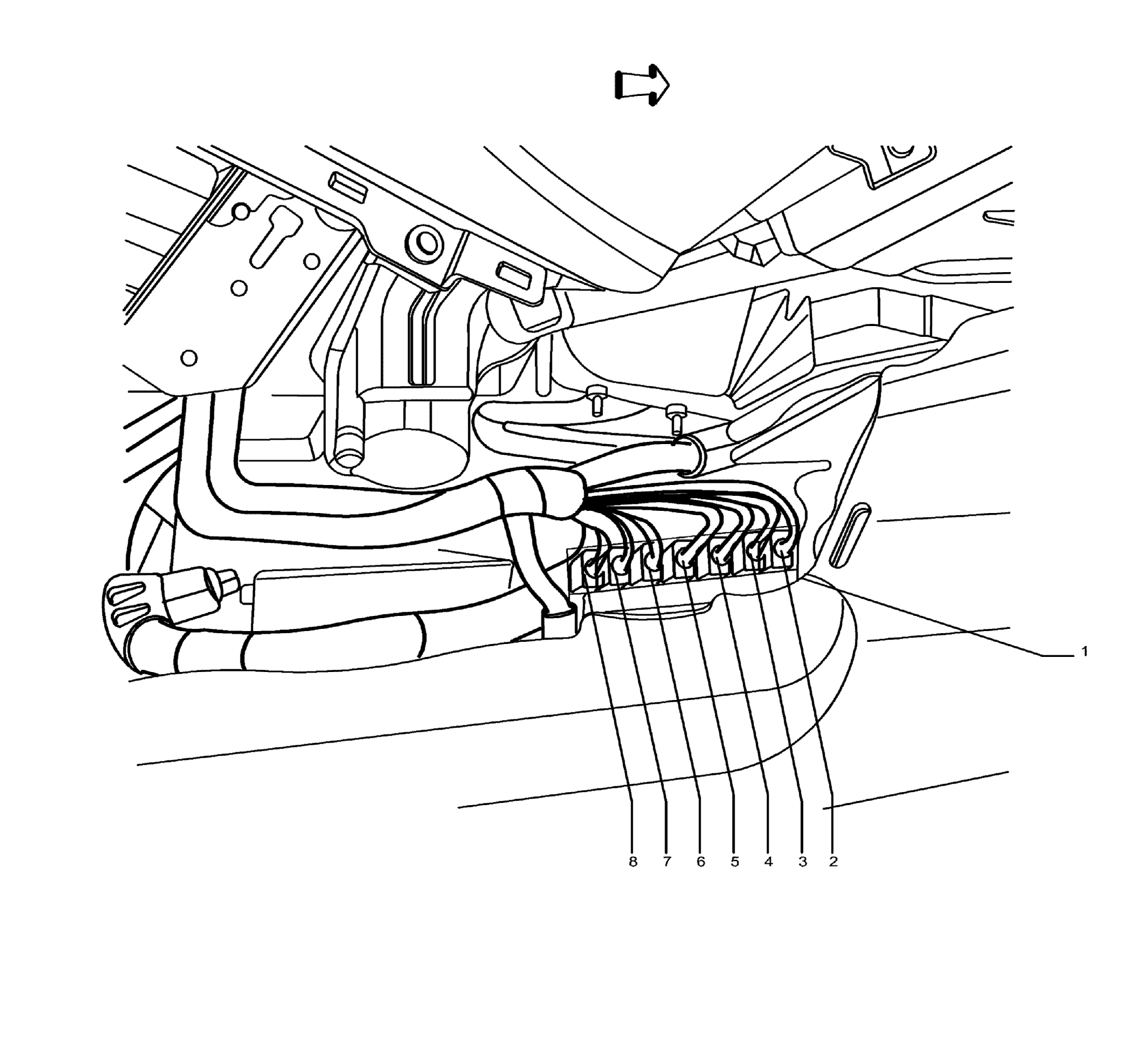

Identifying Behind the Center of the I/P Components 1 of 4
Identifying Behind the Center of the I/P Components 1 of 4
| Component Name | Callout |
|---|---|
| K9 Body Control Module | 1 |
| X7 Body Control Module X7 | 2 |
| X6 Body Control Module X6 | 3 |
| X5 Body Control Module X5 | 4 |
| X4 Body Control Module X4 | 5 |
| X3 Body Control Module X3 | 6 |
| X2 Body Control Module X2 | 7 |
| X1 Body Control Module X1 | 8 |
