Identifying Behind the Center of the I/P Components 4 of 4

Identifying Behind the Center of the I/P Components 4 of 4

Component Name	Callout
X5 Radio X5	1
X4 Radio X4	2
X1 Radio X1	3
A11 Radio	4
X3 Radio X3	5
X6 Radio X6	6
X2 Radio X2	7

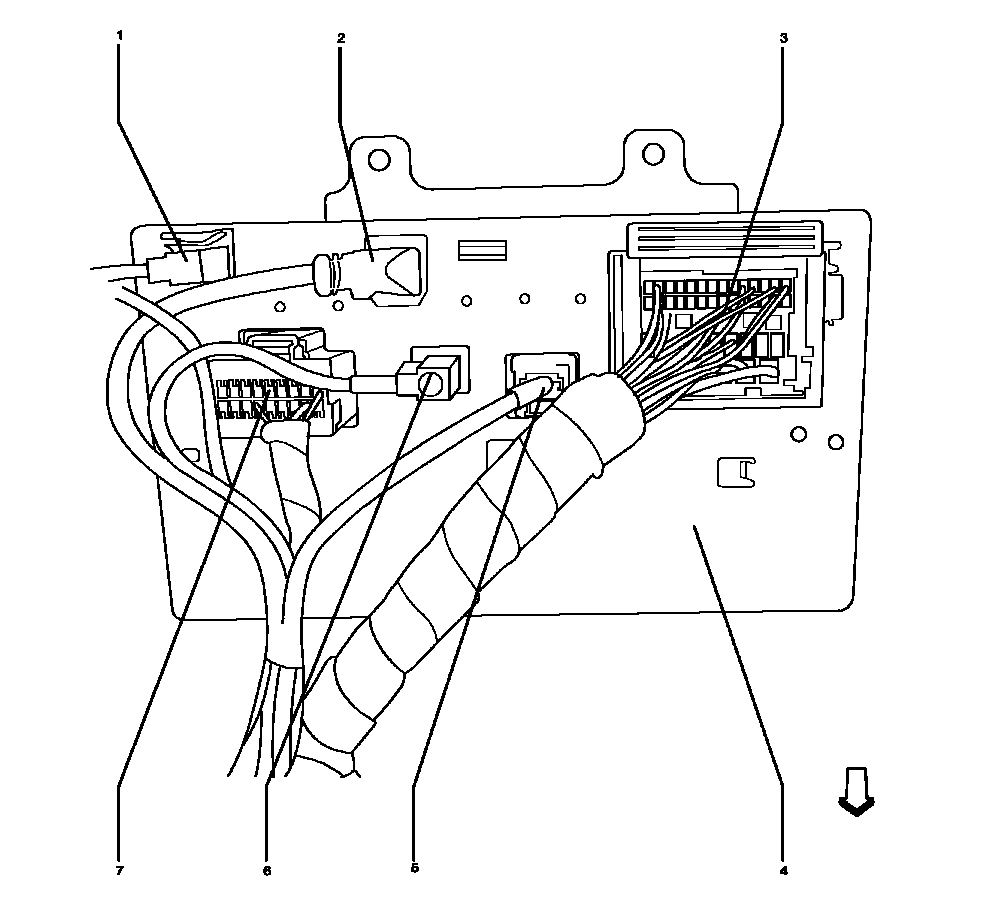

Fig 1: Identifying Behind the Center of the I/P Components 4 of 4

Courtesy of GENERAL MOTORS CORP.
