Instrument Panel/Center Console Component Views
>>
Identifying Behind the Left Side of the I/P Components (C67)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Identifying Behind the Left Side of the I/P Components (C67)
Identifying Behind the Left Side of the I/P Components (C67)
Component Name
Callout
M37 Mode Door Actuator
1
M6L Air Temperature Door Actuator - Left
2

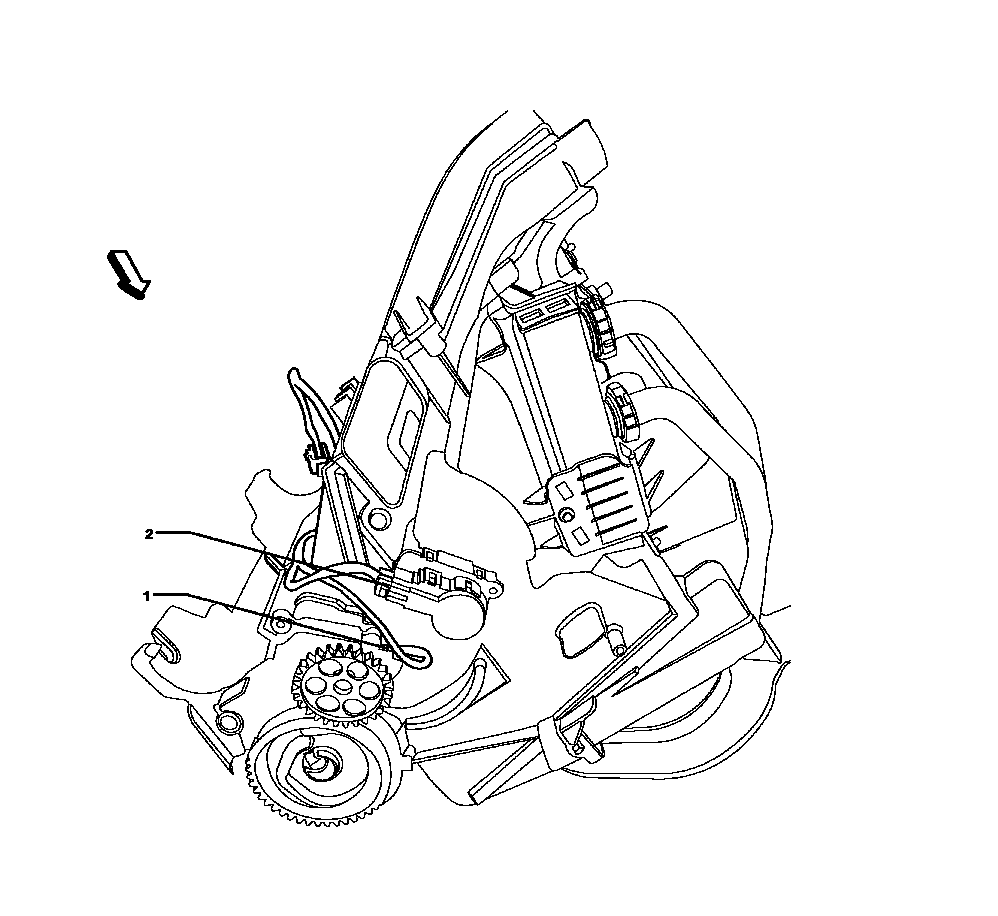

Fig 1: Identifying Behind the Left Side of the I/P Components (C67)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
