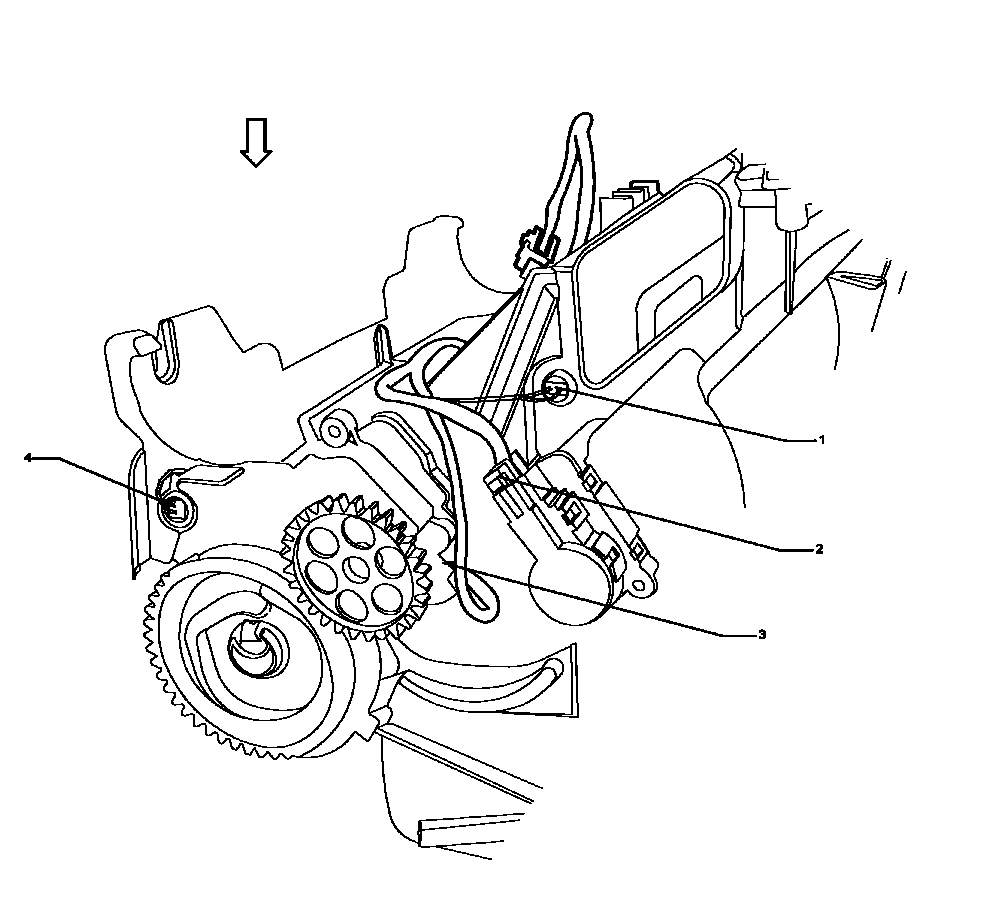

Identifying Behind the Left Side of the I/P Components (C68)
Identifying Behind the Left Side of the I/P Components (C68)
| Component Name |
Callout |
| 7D Air Temperature Sensor - Duct Left Lower |
1 |
| M6L Air Temperature Door Actuator - Left |
2 |
| M37 Mode Door Actuator |
3 |
| B7H Air Temperature Sensor - Duct Left Upper |
4 |
Courtesy of GENERAL MOTORS CORP.
