Identifying Behind the Right Side of the I/P Components 1 of 2

Identifying Behind the Right Side of the I/P Components 1 of 2

Component Name Callout
F105 Passenger Instrument Panel Air Bag 1
K82 Mobile Telephone Control Module 2

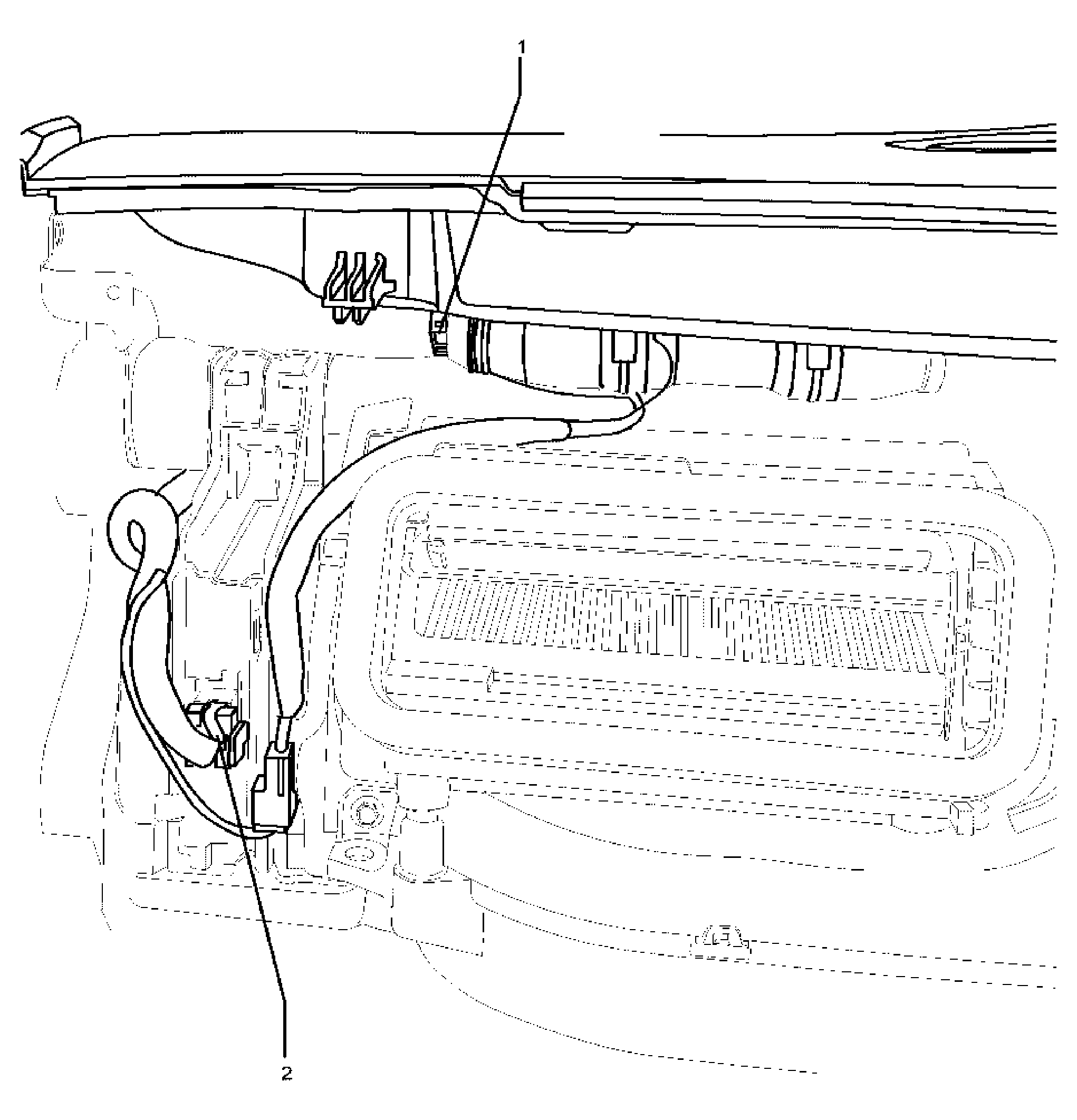

Fig 1: Identifying Behind the Right Side of the I/P Components 1 of 2
GM2224304Courtesy of GENERAL MOTORS CORP.
