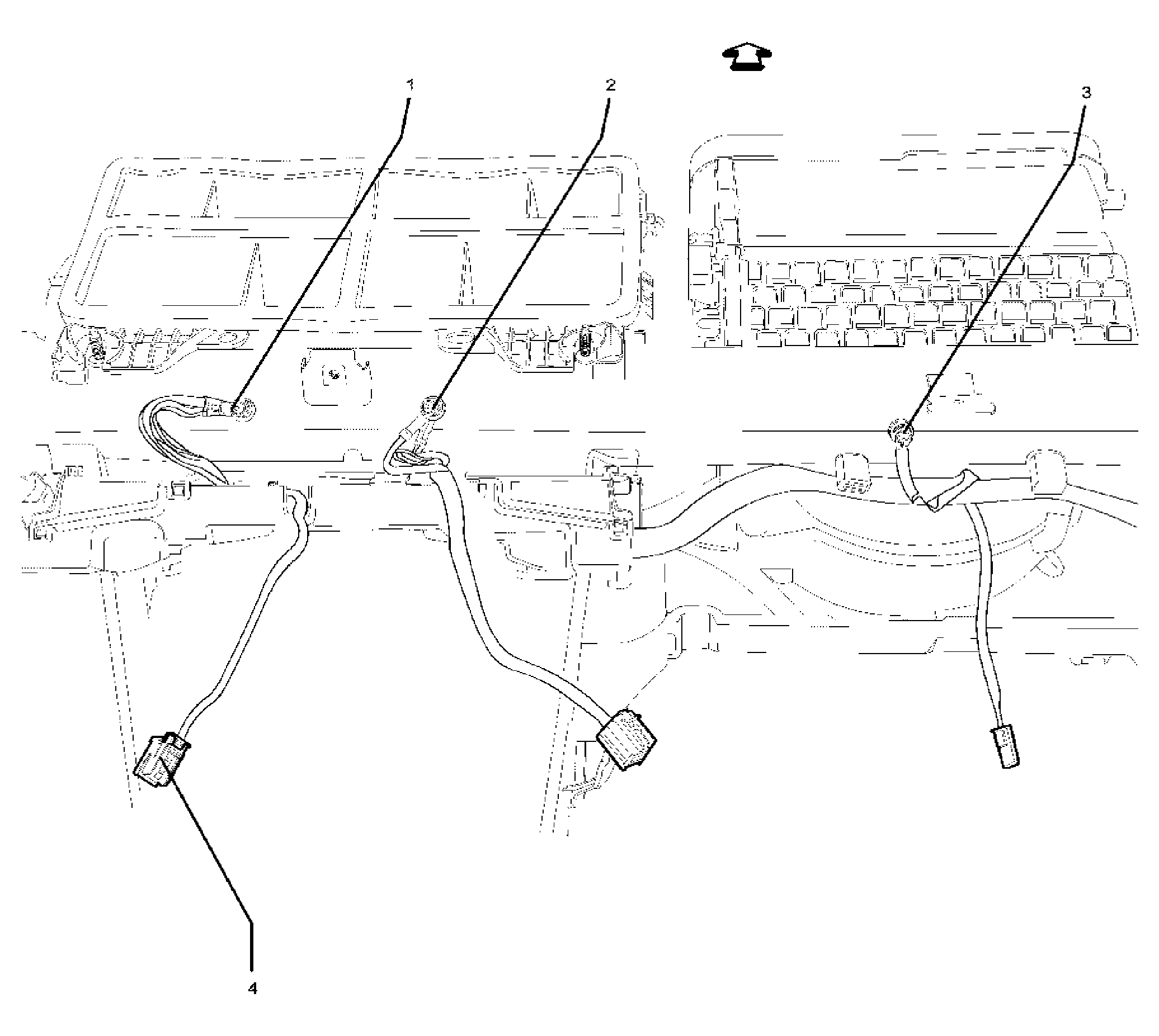

Identifying Behind the Right Side of the I/P Components 2 of 2
Identifying Behind the Right Side of the I/P Components 2 of 2
| Component Name |
Callout |
| G202 Cross Member, Instrument Panel, Behind Radio |
1 |
| G203 Cross Member, Instrument Panel, Behind Radio |
2 |
| G204 Cross Member, Instrument Panel - Right |
3 |
| A11 Radio |
4 |
| X3 Radio X3 |
5 |
| A22 Radio Controls |
6 |
Courtesy of GENERAL MOTORS CORP.
