Remote Control Door Lock Receiver Replacement

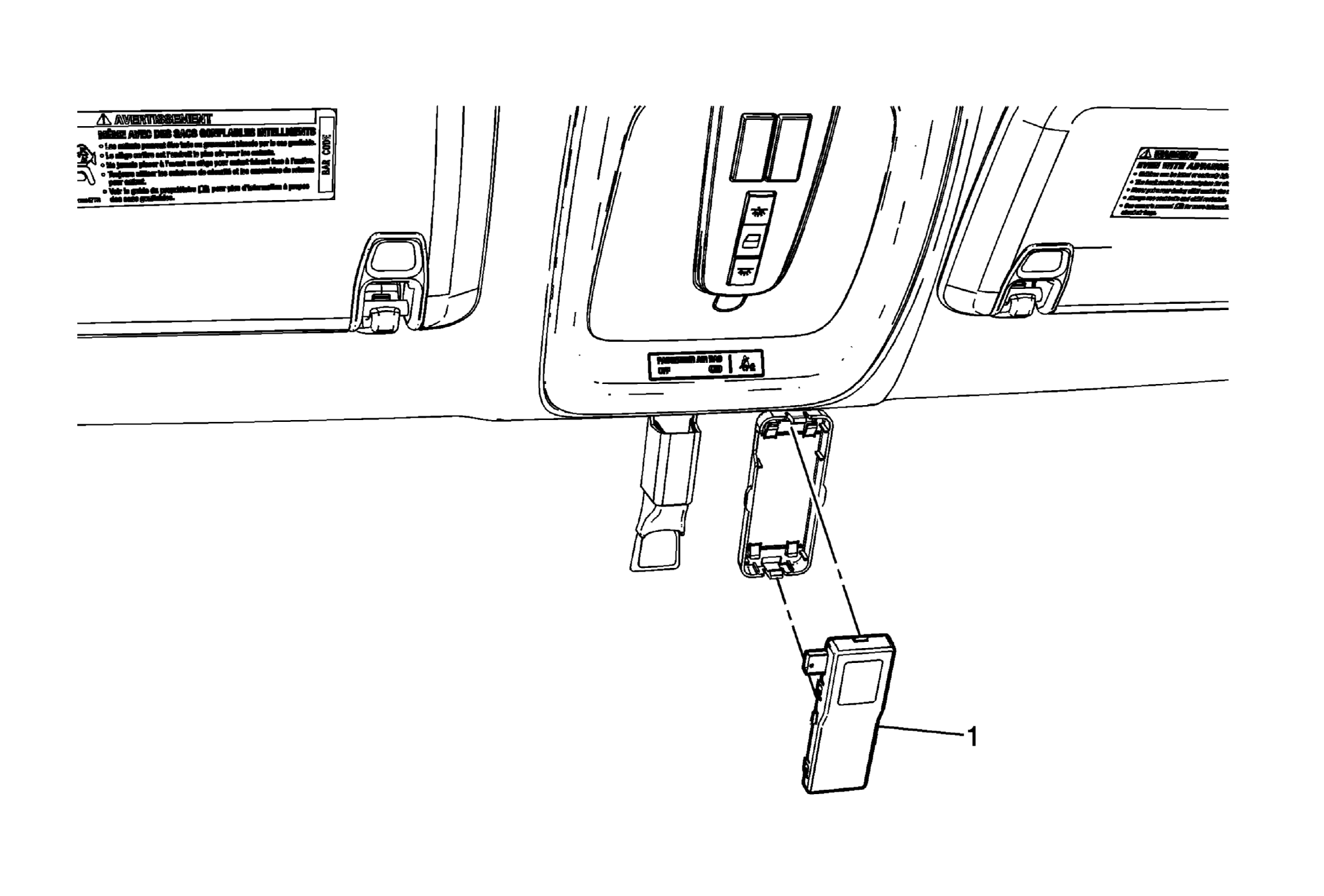

Fig 1: Identifying Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inside rearview mirror mount plate cover.
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Unsnap the receiver from the windshield bracket. For programming and set up, refer to Control Module References

Callout

Component Name

Preliminary Procedure:
Remove the inside rearview mirror mount plate cover.

Remote Control Door Lock Receiver

Procedure
