Fuel Injector Control Module




Component Connector End Views

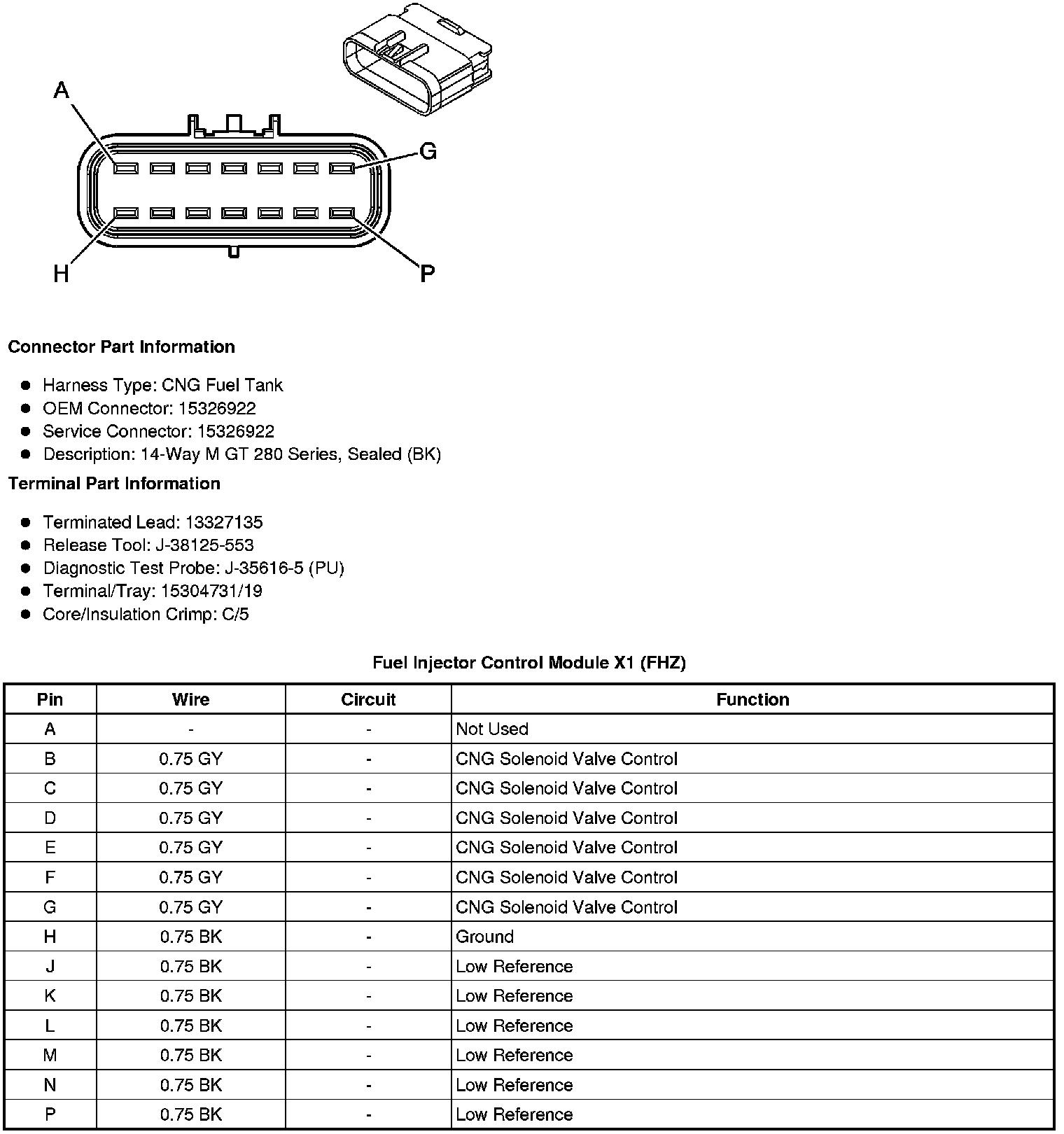

Fuel Injector Control Module X1 (FHZ)

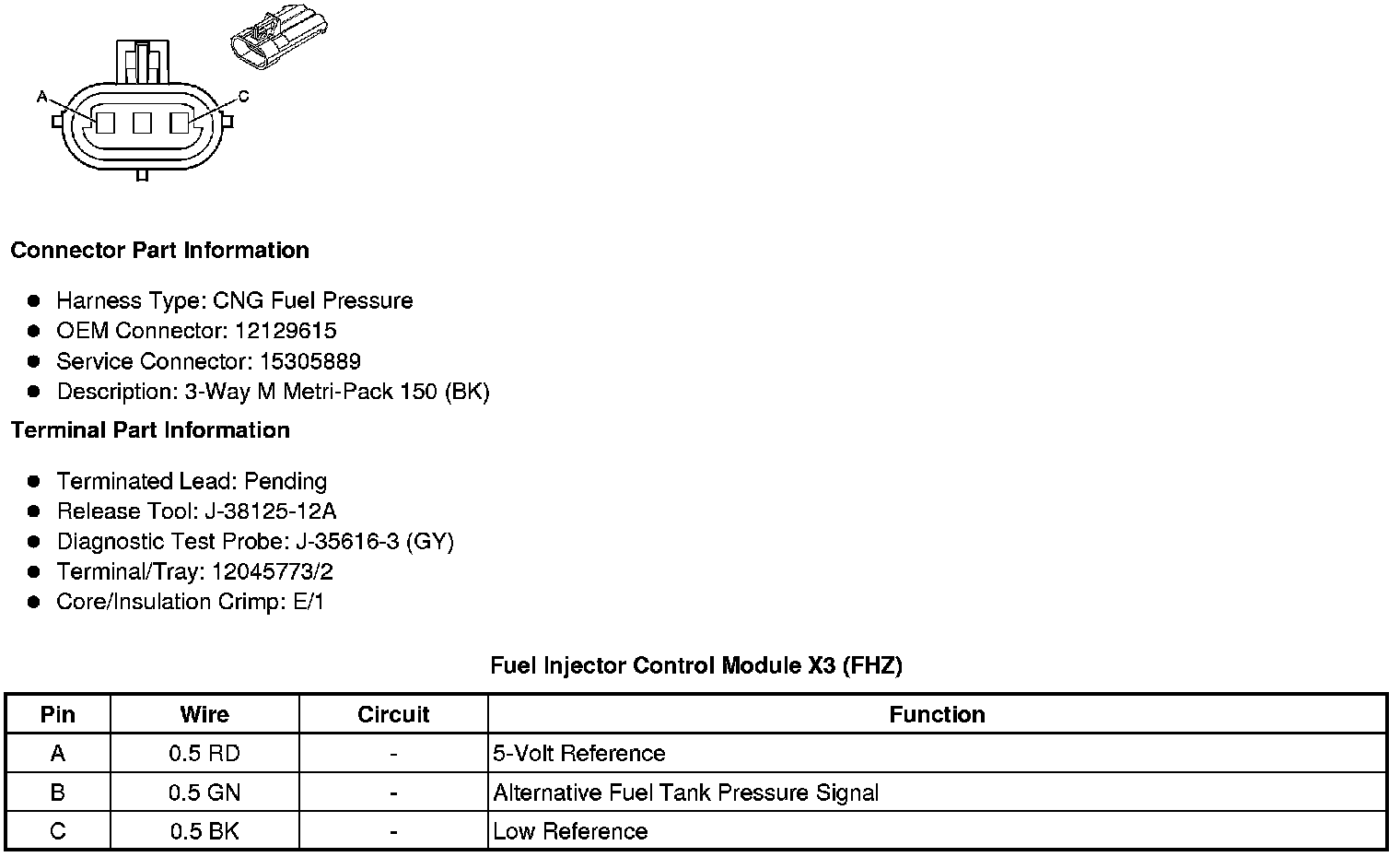

Fuel Injector Control Module X3 (FHZ)

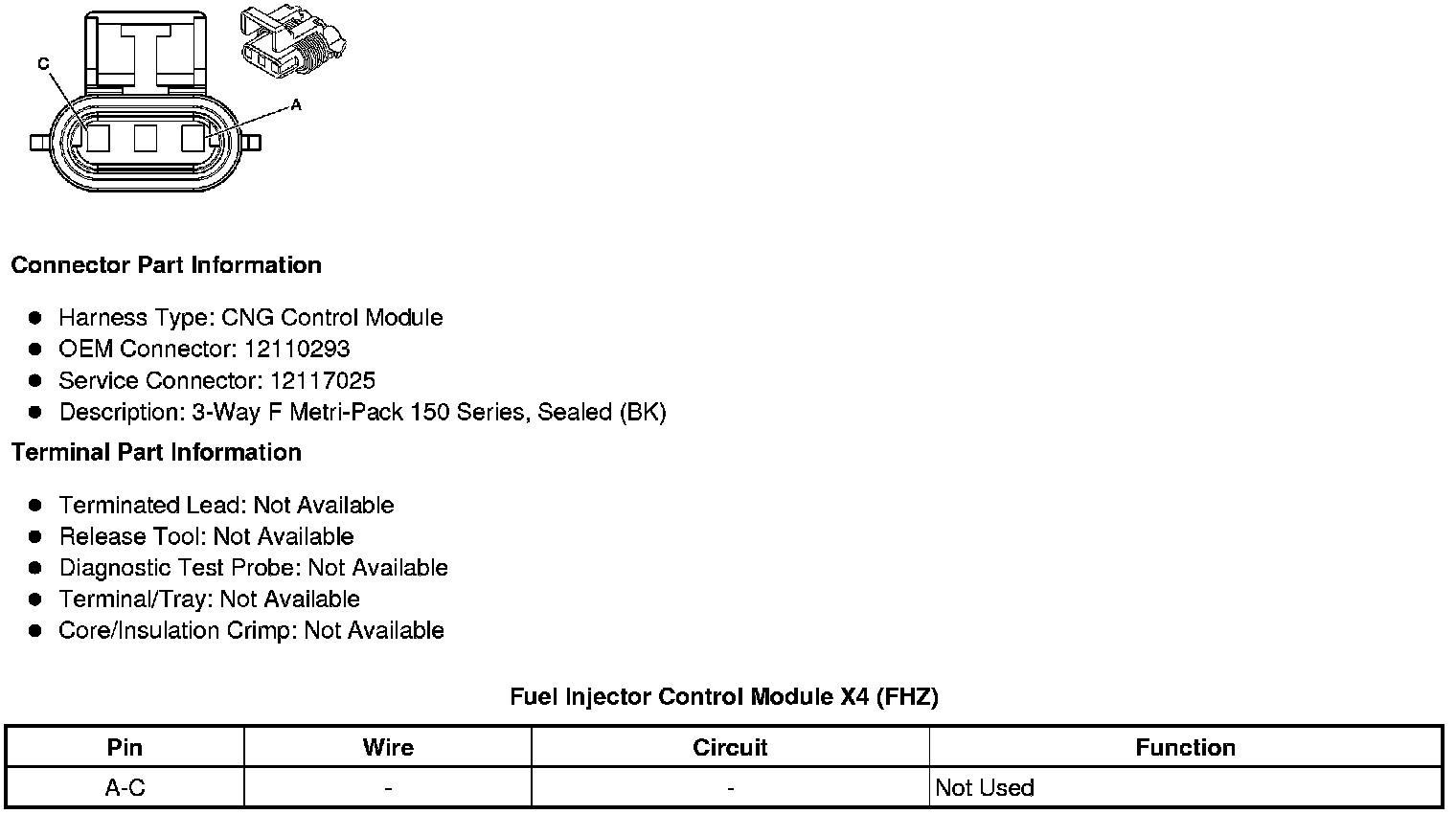

Fuel Injector Control Module X4 (FHZ)
