Fuel Temperature Sensor

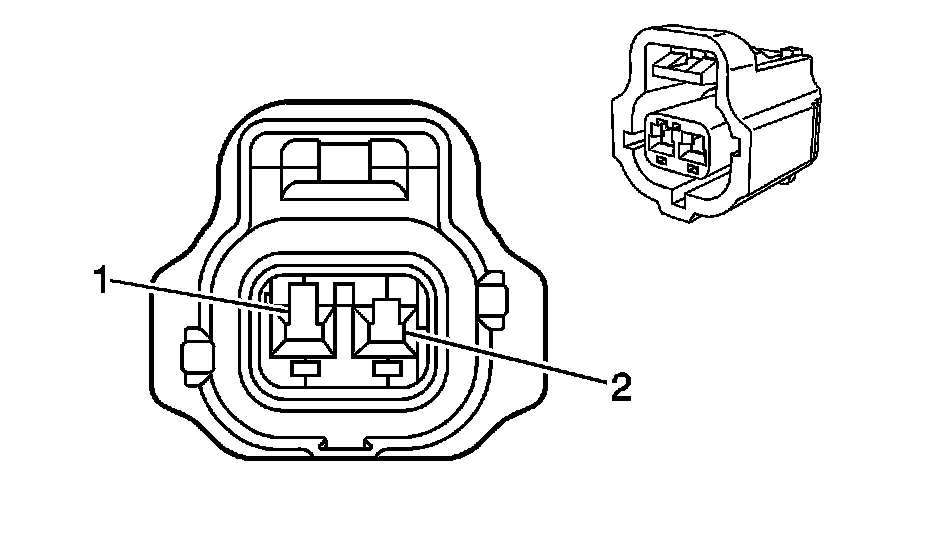

Component Connector End Views

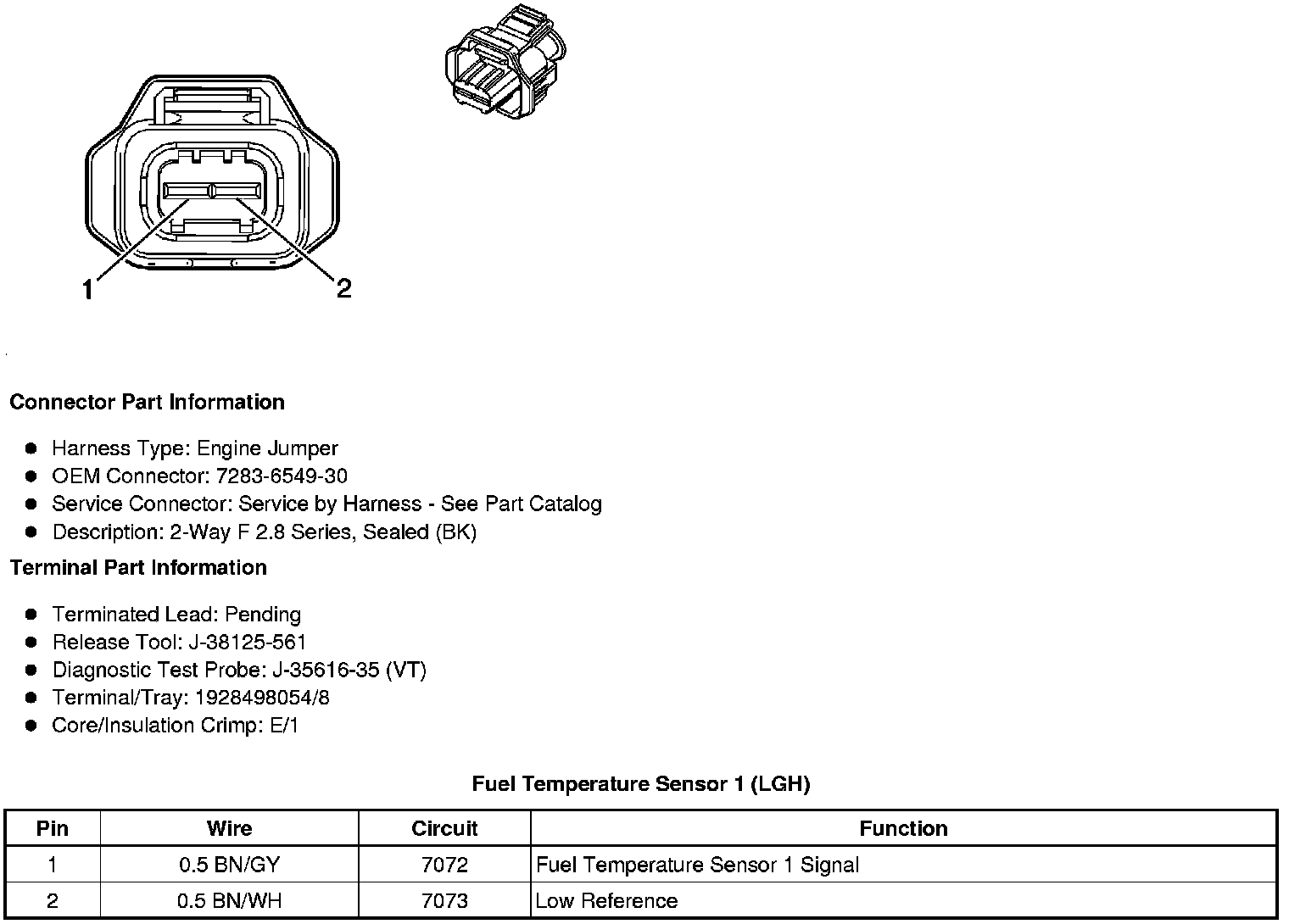

Fuel Temperature Sensor 1 (LGH)

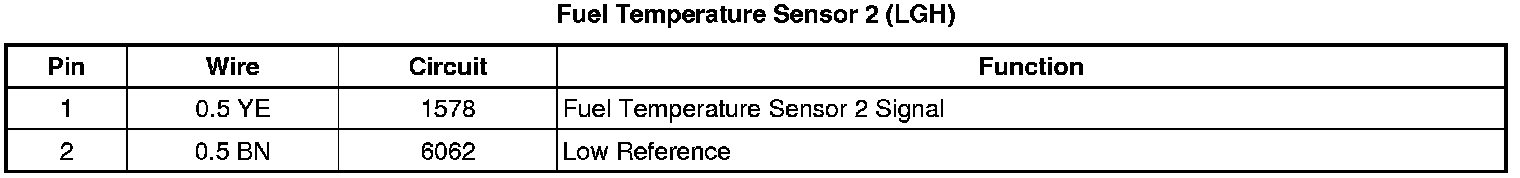

Fuel Temperature Sensor 2 (LGH)
