Fuel Tank Pressure Sensor: Service and Repair

Fuel Tank Pressure Sensor Replacement

Removal Procedure




1. Remove the fuel tank. Refer to Fuel Tank Replacement Removal and Replacement.

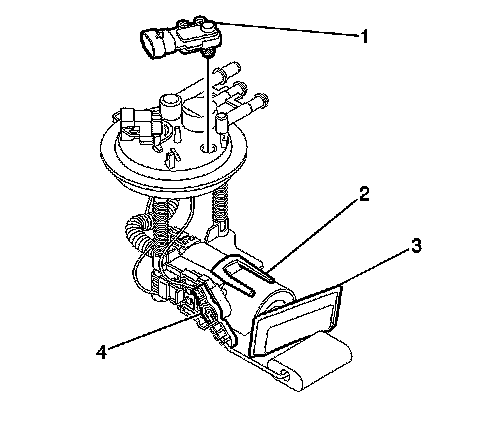

2. Remove the fuel pressure sensor (1).

Installation Procedure




1. Install the fuel pressure sensor (1).
2. Install the fuel tank. Refer to Fuel Tank Replacement Removal and Replacement.
