Air Flow Meter/Sensor: Locations

Powertrain Component Views

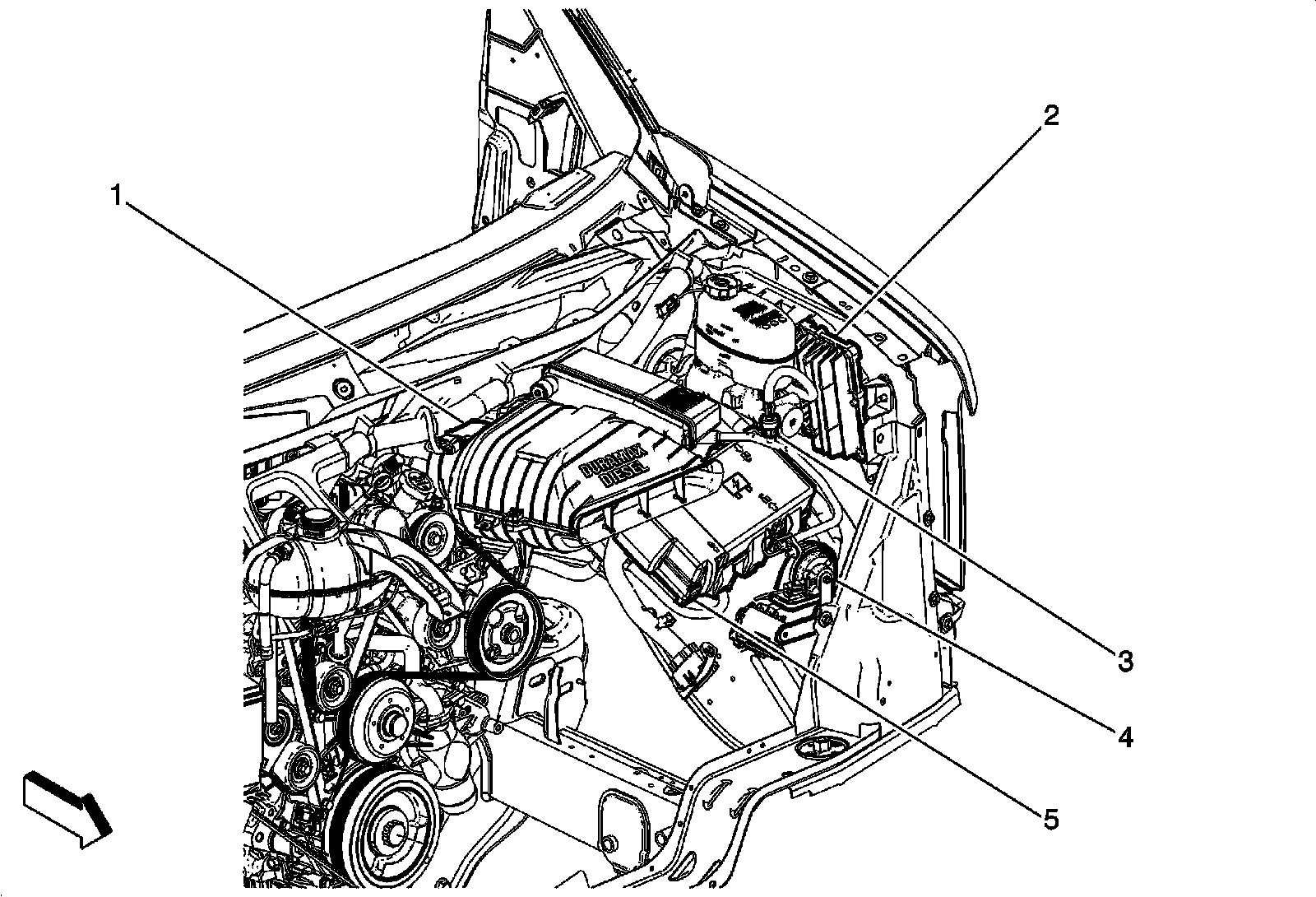

Engine Components (LGH)

1 - Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor
2 - Engine Control Module (ECM)
3 - A/C Refrigerant Pressure Sensor
4 - Horn Assembly
5 - Fuse Block - Underhood
