Thread Repair Specifications




Thread Repair Specifications

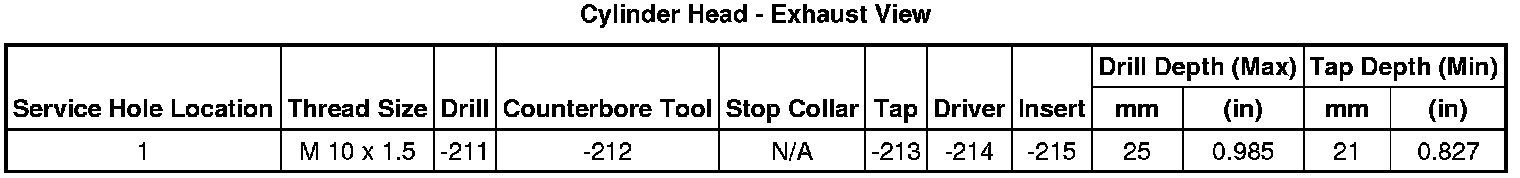

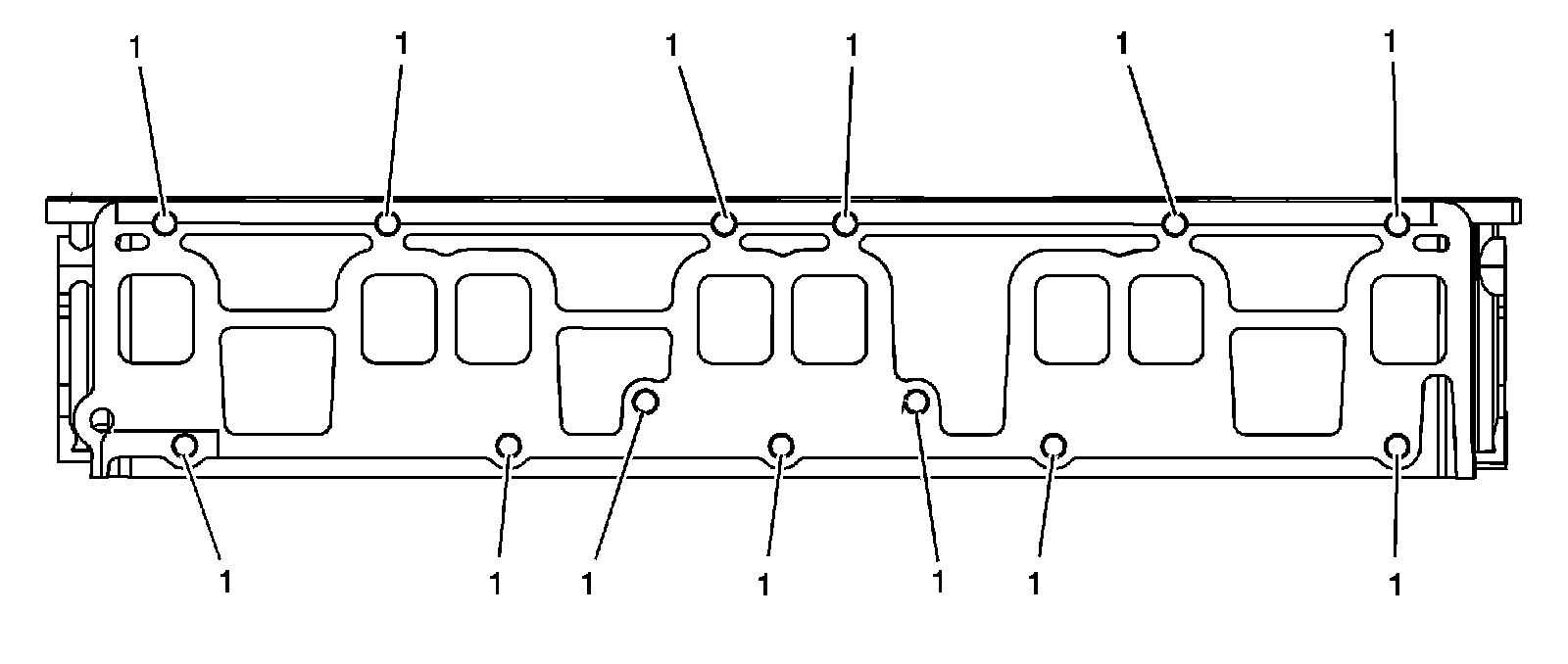

Cylinder Head - Exhaust View

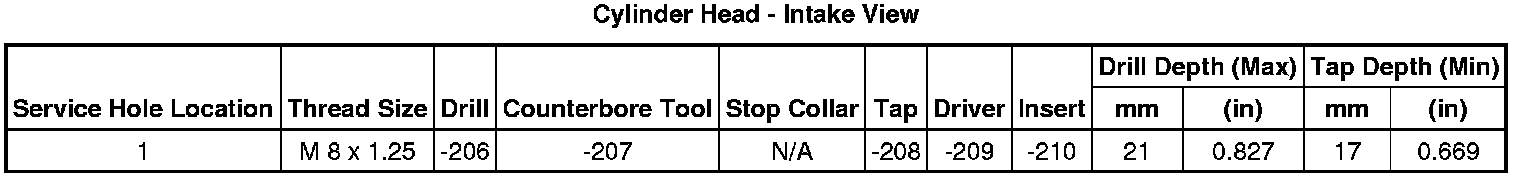

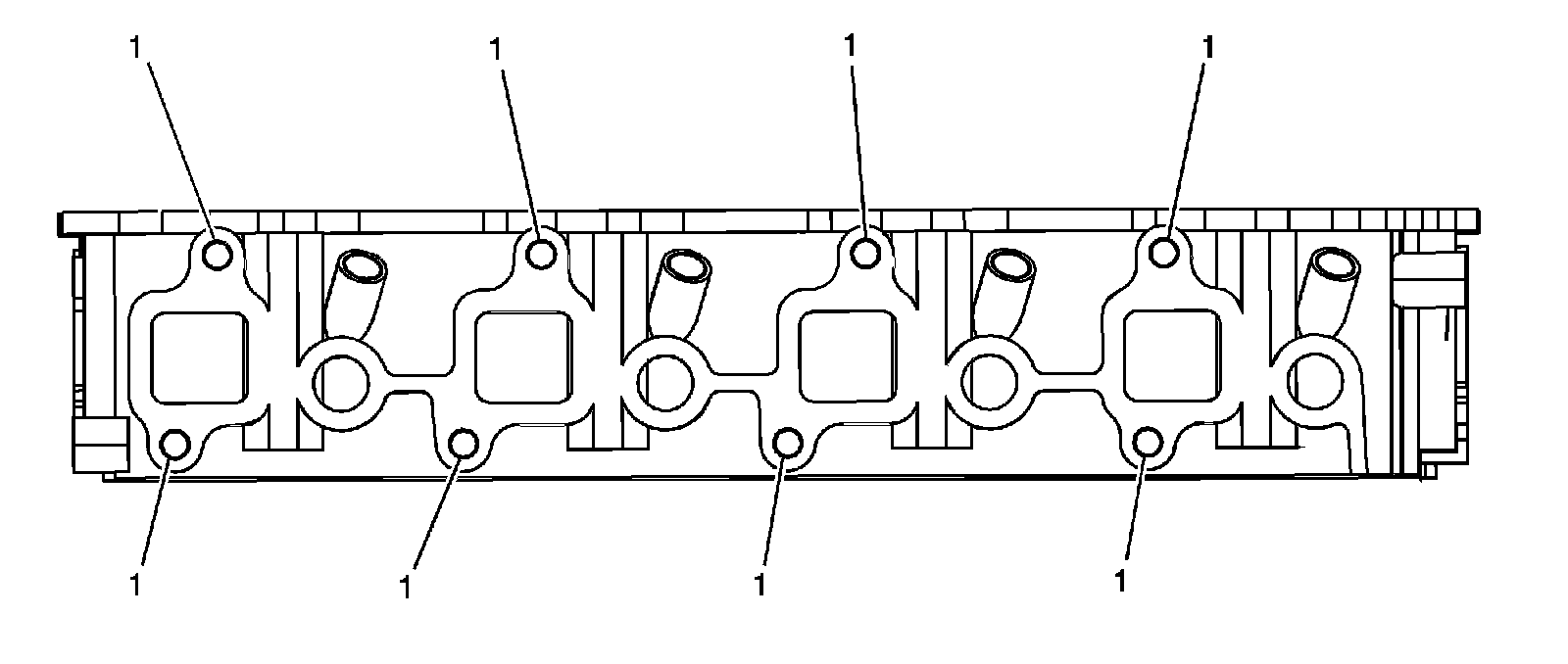

Cylinder Head - Intake View

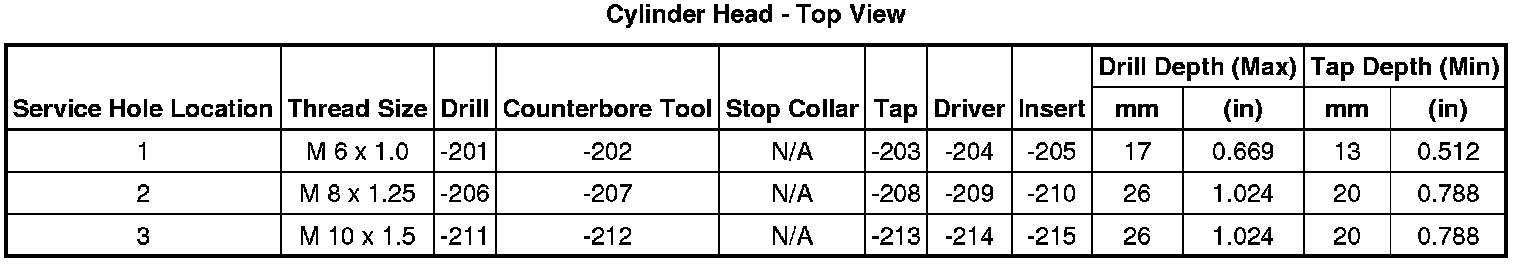

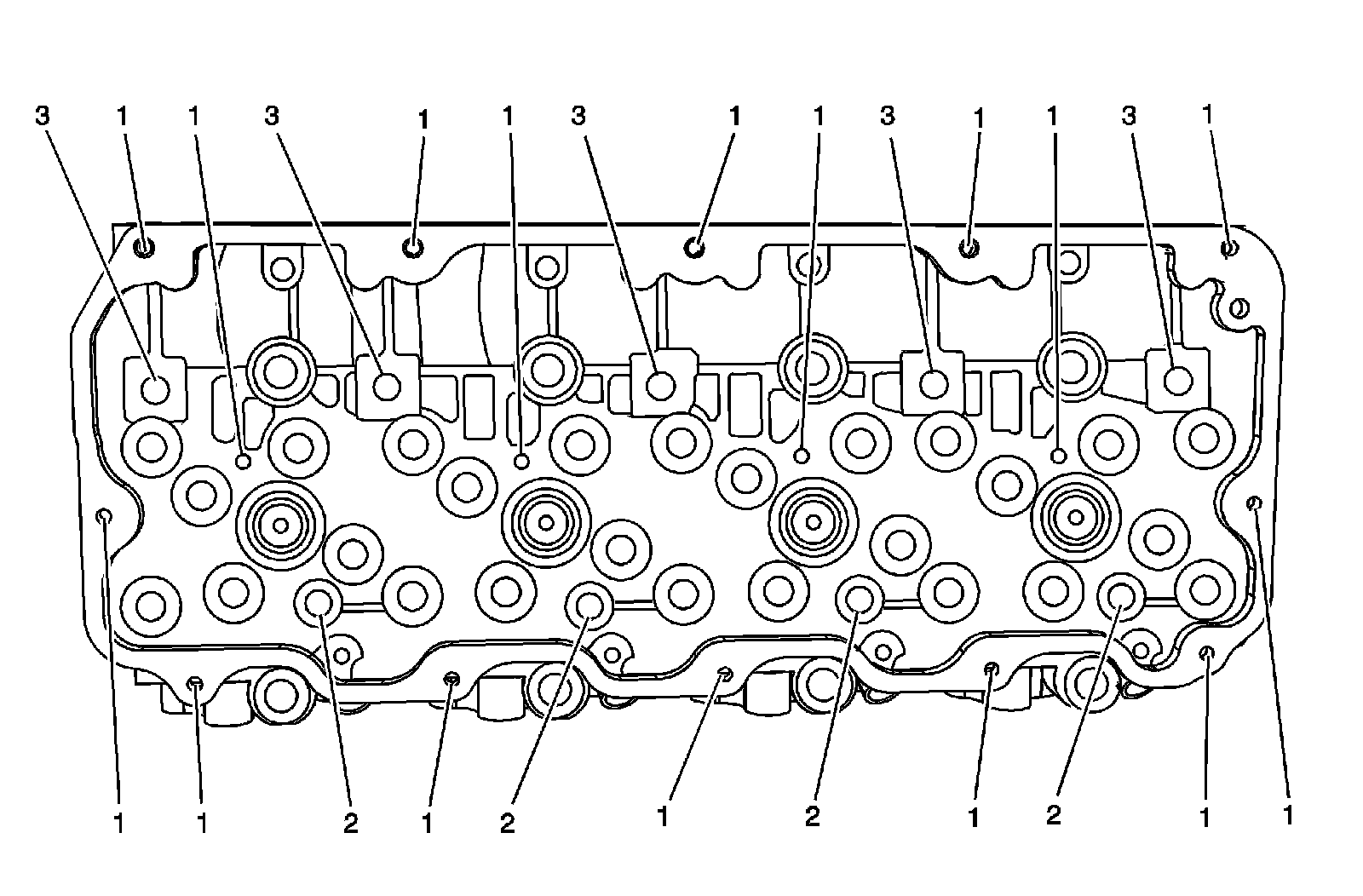

Cylinder Head - Top View

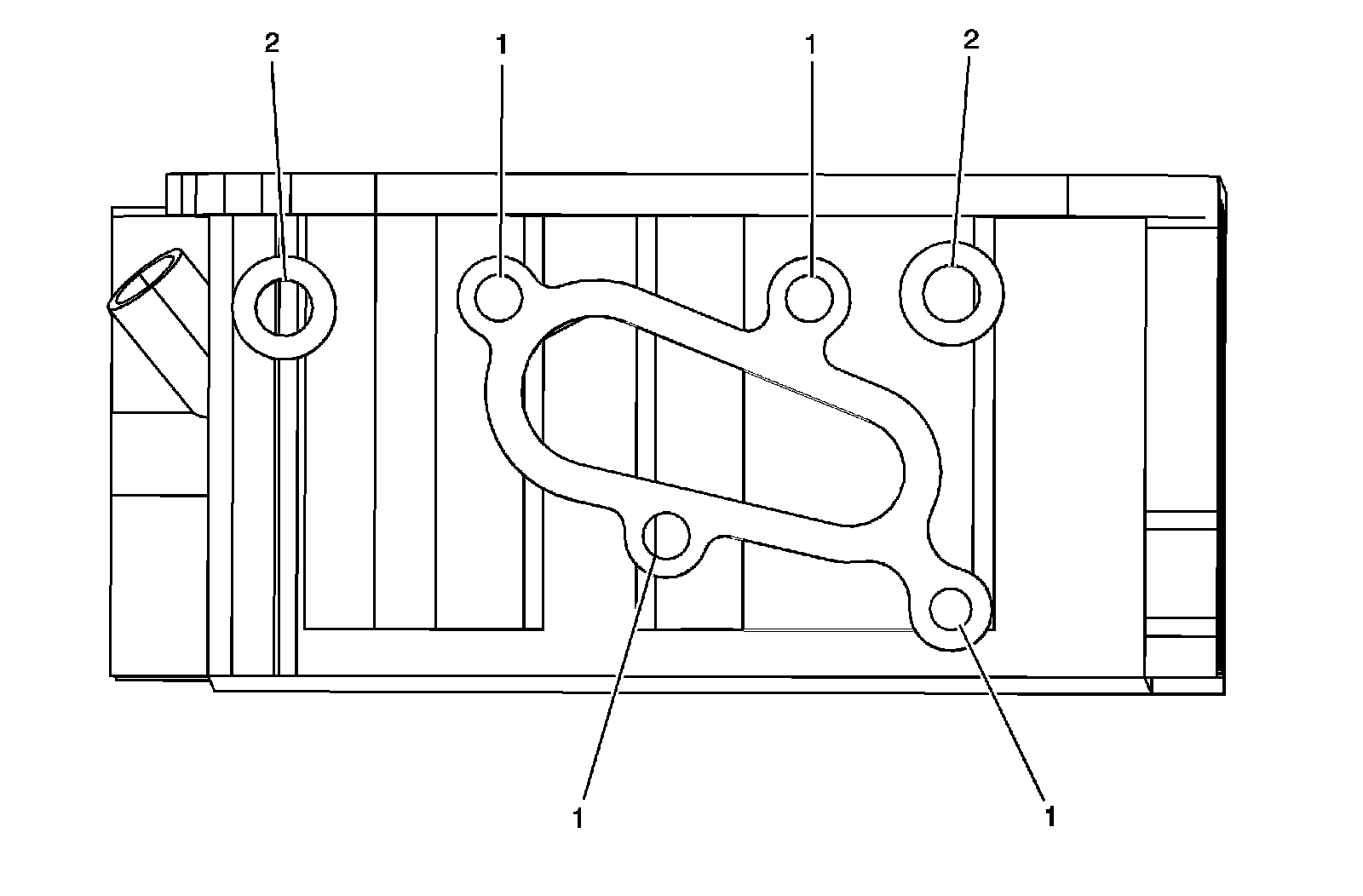

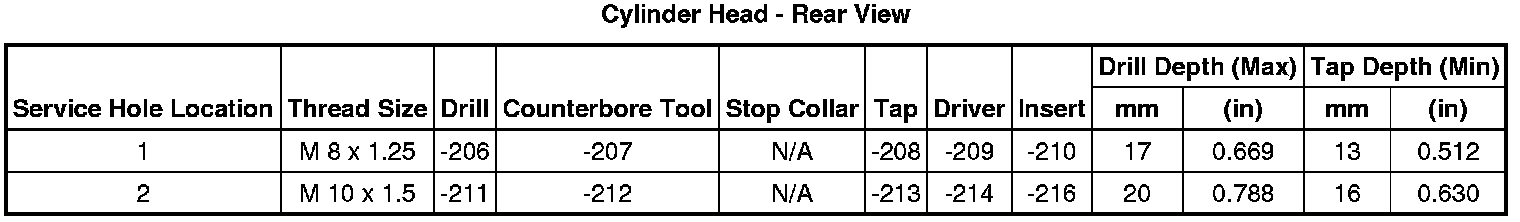

Cylinder Head - Rear View

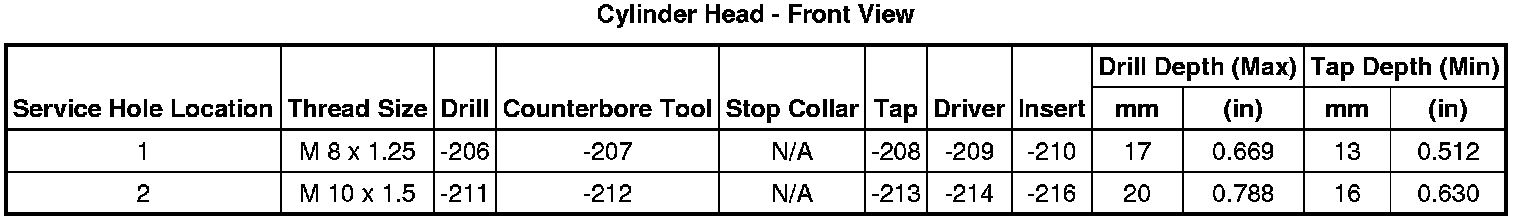

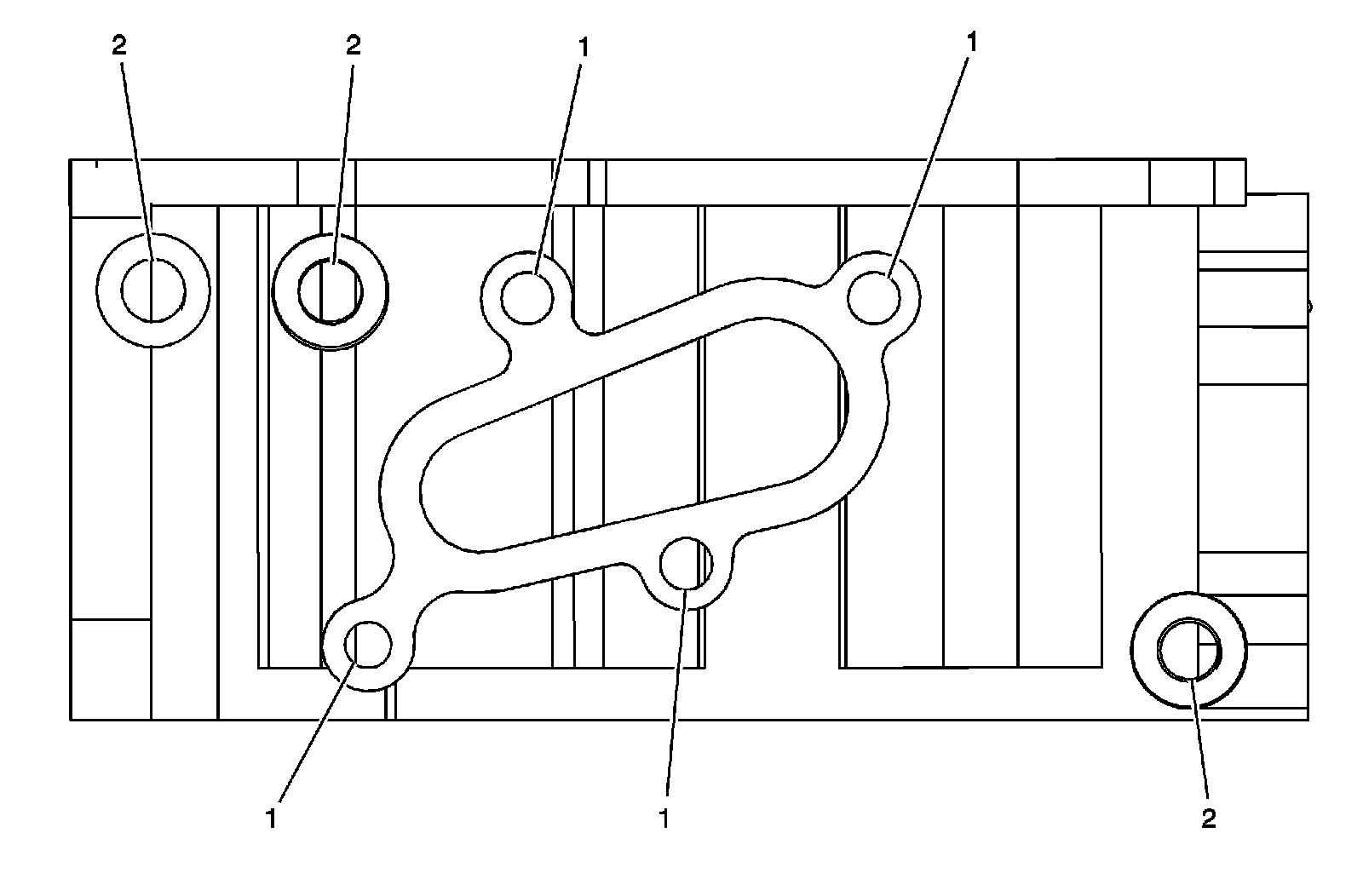

Cylinder Head - Front View
