92. Checkballs Installation




Checkballs Installation

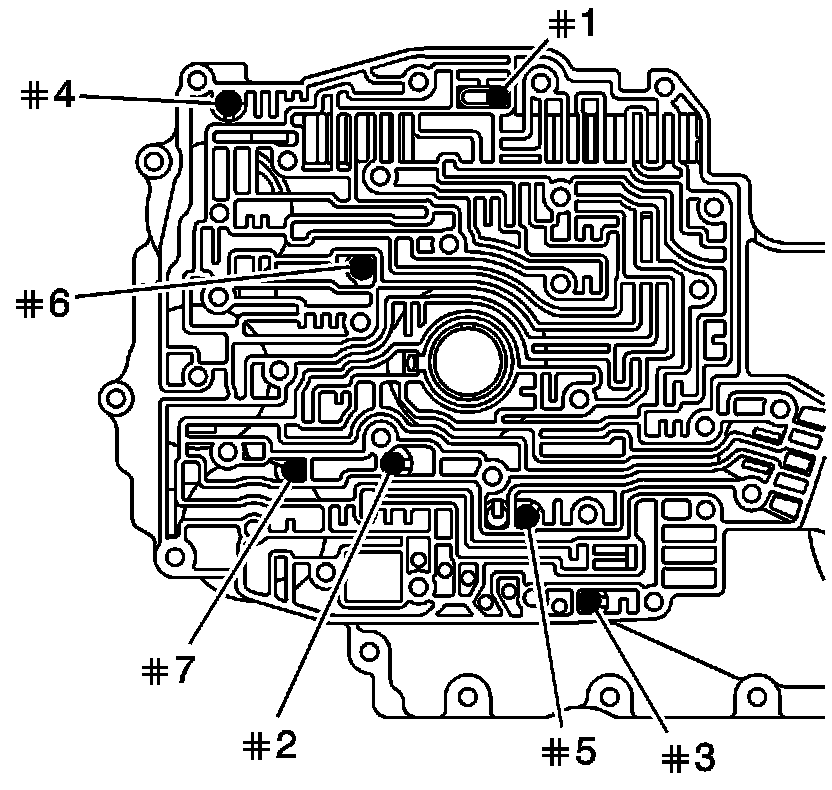

Install the seven checkballs into the proper locations on the channel plate.
