Steering Wheel Controls Wiring Schematics

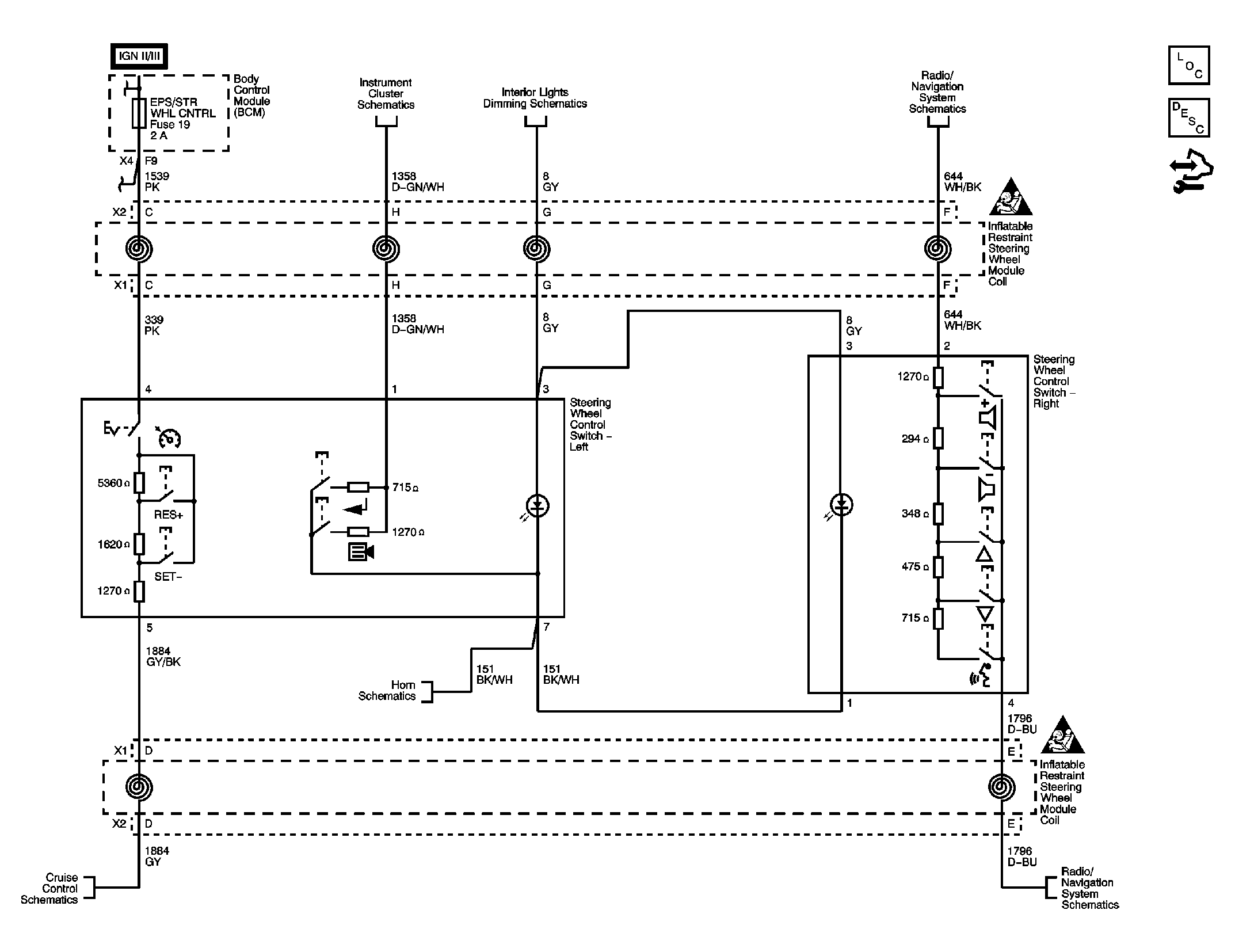

Fig 1: Steering Wheel Controls Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
