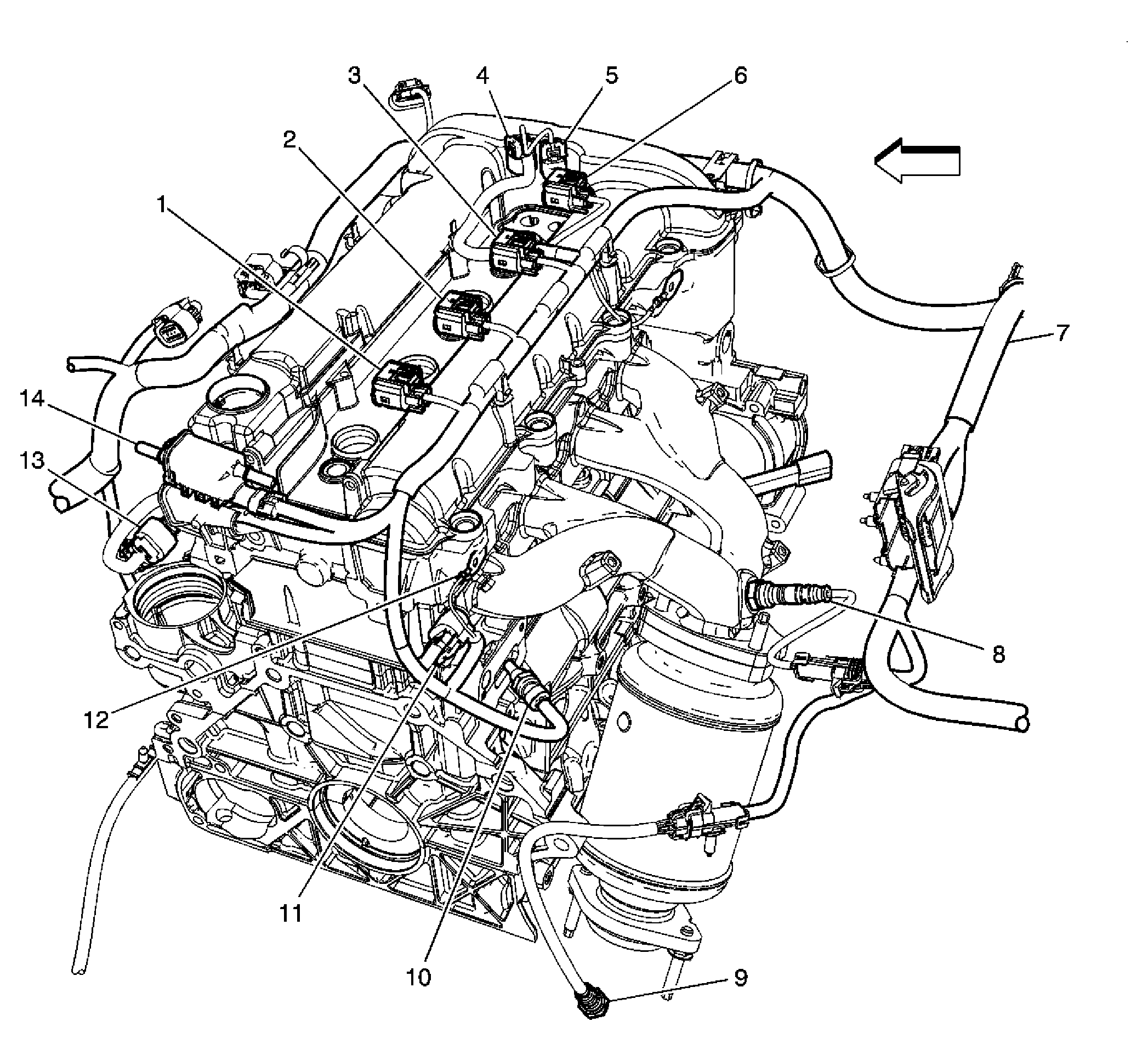

Engine Components - Top
Engine Components - Top
| Component Name | Callout |
|---|---|
| Ignition Coil Module 4 | 1 |
| Ignition Coil Module 3 | 2 |
| Ignition Coil Module 2 | 3 |
| Camshaft Position (CMP) Actuator Solenoid - Intake | 4 |
| Camshaft Position (CMP) Actuator Solenoid - Exhaust | 5 |
| Ignition Coil Module 1 | 6 |
| Engine Harness | 7 |
| Heated Oxygen Sensor (HO2S) 1 | 8 |
| Heated Oxygen Sensor (HO2S) 2 | 9 |
| Engine Coolant Temperature (ECT) Sensor | 10 |
| Camshaft Position (CMP) Sensor - Exhaust | 11 |
| G108 | 12 |
| Camshaft Position (CMP) Sensor - Intake | 13 |
| Evaporative Emission (EVAP) Canister Purge Solenoid Valve | 14 |
