Removal Procedure

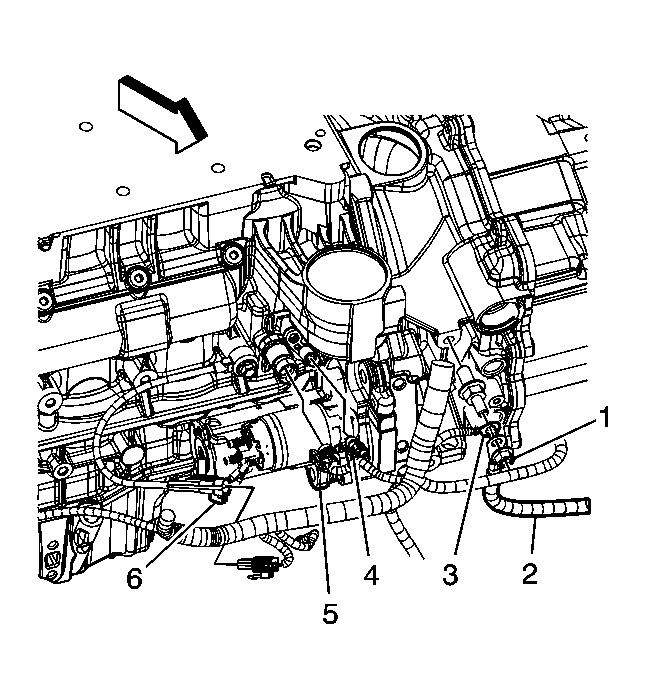

    Fig 1: Engine Harness And Components
    GM1622787Courtesy of GENERAL MOTORS COMPANY
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the knock sensor (KS) electrical connector (6).
    3. Fig 2: Identifying Knock Sensor
    GM1578476Courtesy of GENERAL MOTORS COMPANY
  3. Remove the KS bolt.
  4. Remove the KS.
