Installation Procedure

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

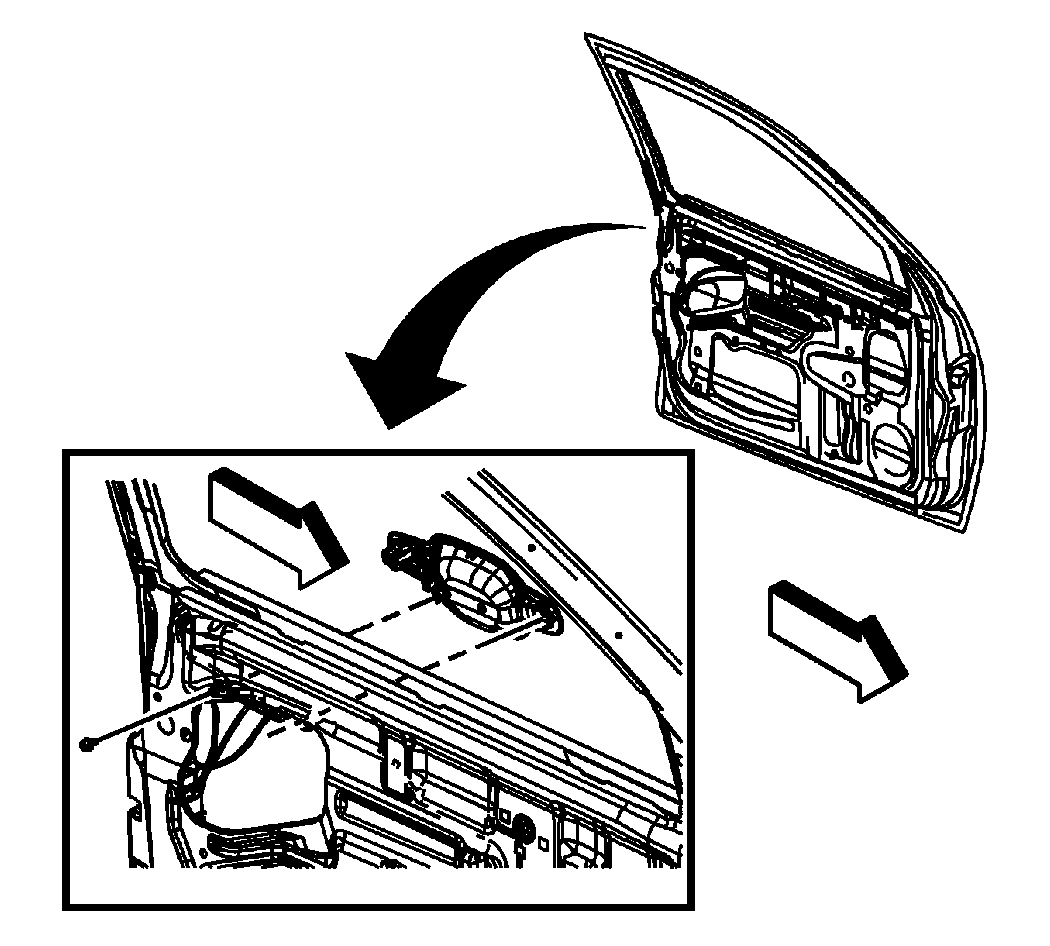

    Fig 1: View Of Outside Door Handle
    GM1252415Courtesy of GENERAL MOTORS CORP.
  1. Install the lock cylinder to the outside door handle. Refer to Front Side Door Lock Cylinder Replacement .
  2. Install the outside door handle to the front door.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the bolts retaining the outside door handle to the door.

    Tighten:  Tighten the outside door handle bolts to 9 N.m (80 lb in).

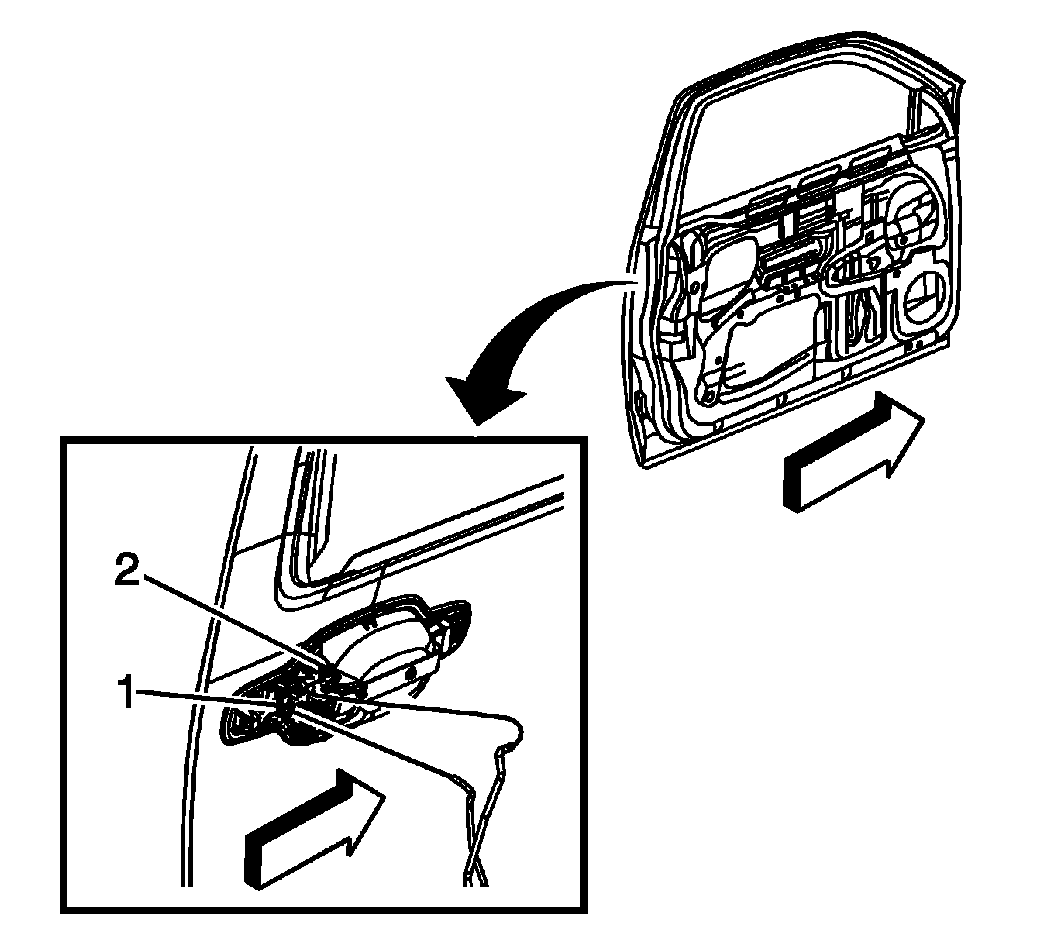

    4. Fig 2: Lock Cylinder Rod & Outside Door Handle Rod Retaining Clips
    GM1252411Courtesy of GENERAL MOTORS CORP.
  4. Connect the lock cylinder rod to the lock cylinder using the retaining clip (1).
  5. Connect the outside door handle rod to the door handle using the retaining clip (2).
  6. Install the front door water deflector. Refer to Front Side Door Water Deflector Replacement .
  7. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
