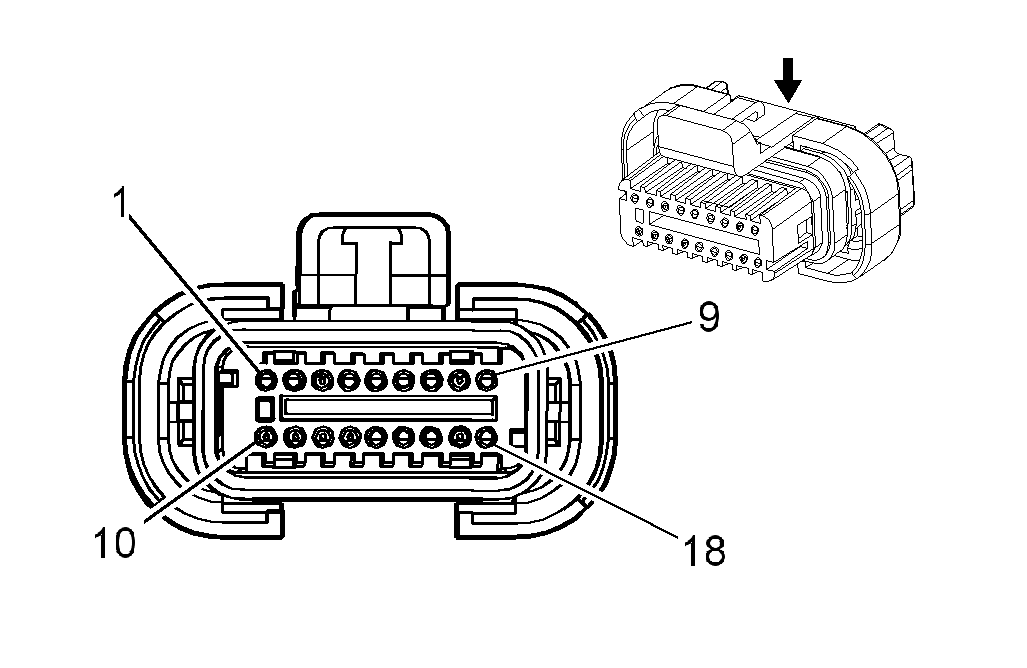

Inflatable Restraint Front Passenger Presence System (PPS) Module (AL0) Connector End View
Courtesy of GENERAL MOTORS COMPANY Inflatable Restraint Front Passenger Presence System (PPS) Module (AL0)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 TN/BK |
723 |
I/P Module On Indicator Control |
| 2 |
0.35 PK |
353 |
I/P Module Off Indicator Control |
| 3 |
- |
- |
Not Used |
| 4 |
0.35 D-BU |
913 |
Passenger Seat Belt Tension Sensor Signal |
| 5 |
0.35 BK/WH |
1250 |
Ground |
| 6 |
0.35 PK/WH |
916 |
PPS Signal |
| 7 |
0.35 D-BU/WH |
918 |
5-Volt Reference |
| 8 |
- |
- |
Not Used |
| 9 |
0.35 PK |
1339 |
Ignition Voltage |
| 10-13 |
- |
- |
Not Used |
| 14 |
0.35 YE |
914 |
Low Reference |
| 15 |
0.35 YE/WH |
917 |
Low Reference |
| 16 |
0.35 PK/BK |
915 |
5-Volt Reference |
| 17 |
- |
- |
Not Used |
| 18 |
0.35 PK |
5018 |
Occupant Sensor Serial Data |
Connector Part Information
- Harness: Seat
- OEM: 15431682
- Service: Service by Harness - See Part Catalog
- Description: 18-Way F Micro-Pack 100W Series, Sealed (BK)
|
Terminal Part Information
- Terminal/Tray: Service with Terminated Lead
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: 12122523/J-35616-6 (BN)
|
