Electrical Component Locator - Passenger Compartment/Roof Component Views
>>
Passenger Compartment/Roof Component Views
>>
Pedal Assembly Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Pedal Assembly Components
Pedal Assembly Components
Component Name
Callout
Clutch Pedal Position (CPP) Sensor (M86 or MU3)
1
Brake Pedal Position Sensor
2
Accelerator Pedal Position (APP) Sensor
3
Floor Panel
4

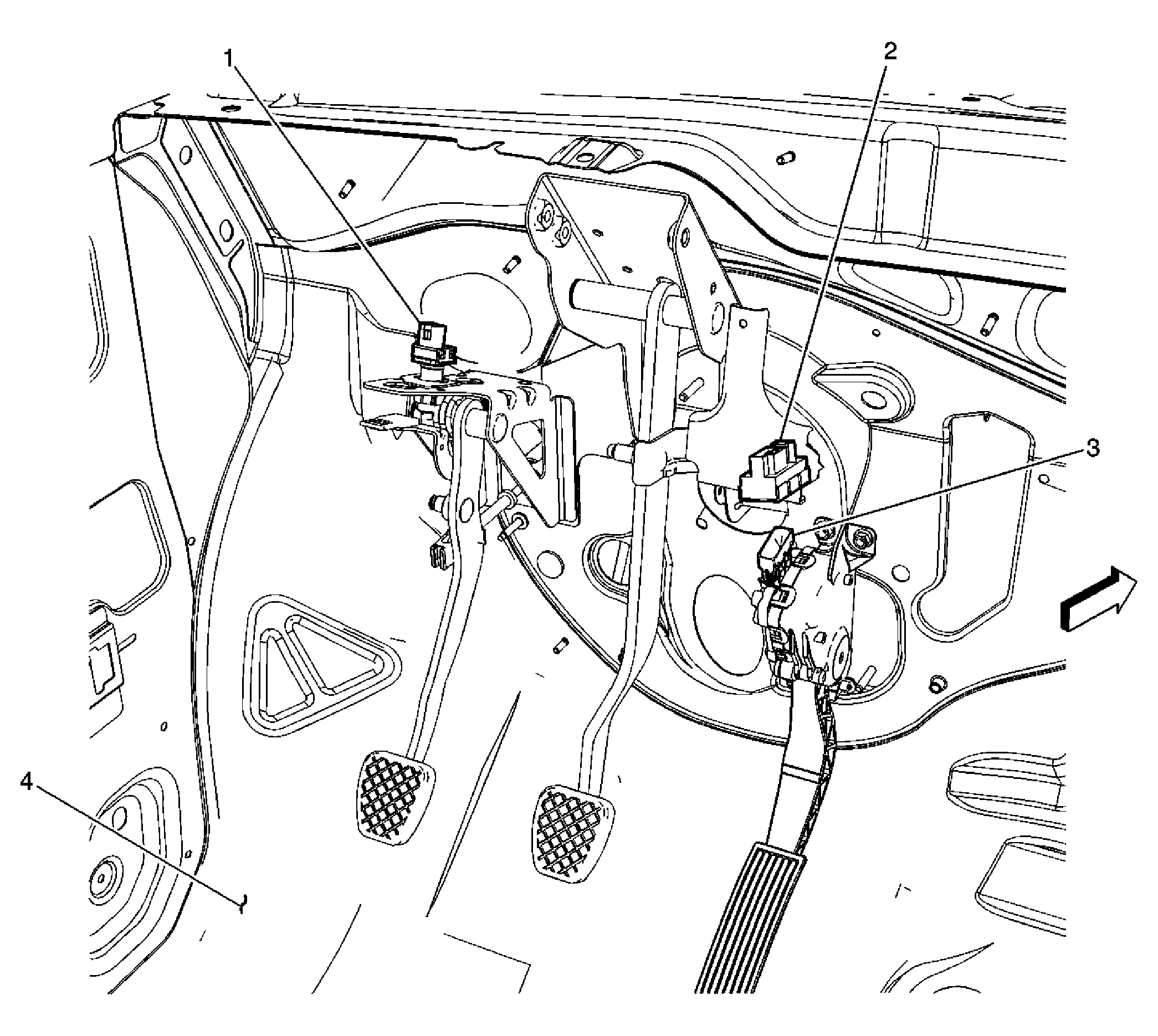

Fig 1: Pedal Assemblies
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
