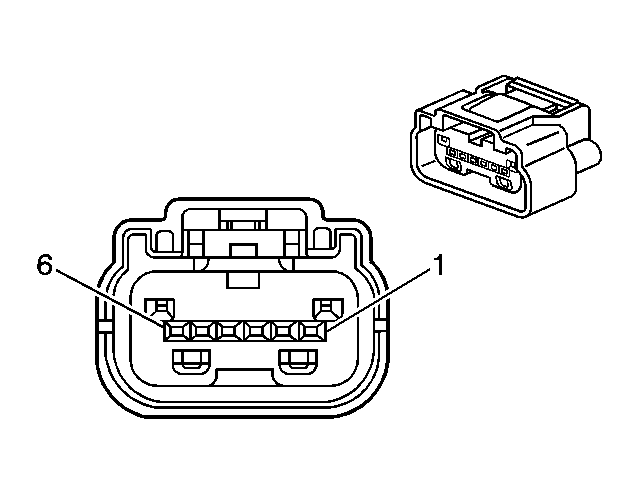

Inflatable Restraint Vehicle Rollover Sensor Connector End View
Courtesy of GENERAL MOTORS COMPANY Inflatable Restraint Vehicle Rollover Sensor
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 PK |
1339 |
Ignition 2 and 3 Voltage |
| 2-4 |
- |
- |
Not Available |
| 5 |
0.35 PK |
5018 |
Serial Data |
| 6 |
0.35 BK/WH |
1551 |
Ground |
Connector Part Information
- Harness: Body
- OEM: 6189-1024
- Service: 88987982
- Description: 6-Way F 64 Series (YE)
|
Terminal Part Information
- Terminal/Tray: See 8100-3426/22
- Core/Insulation Crimp: J/J
- Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
|
