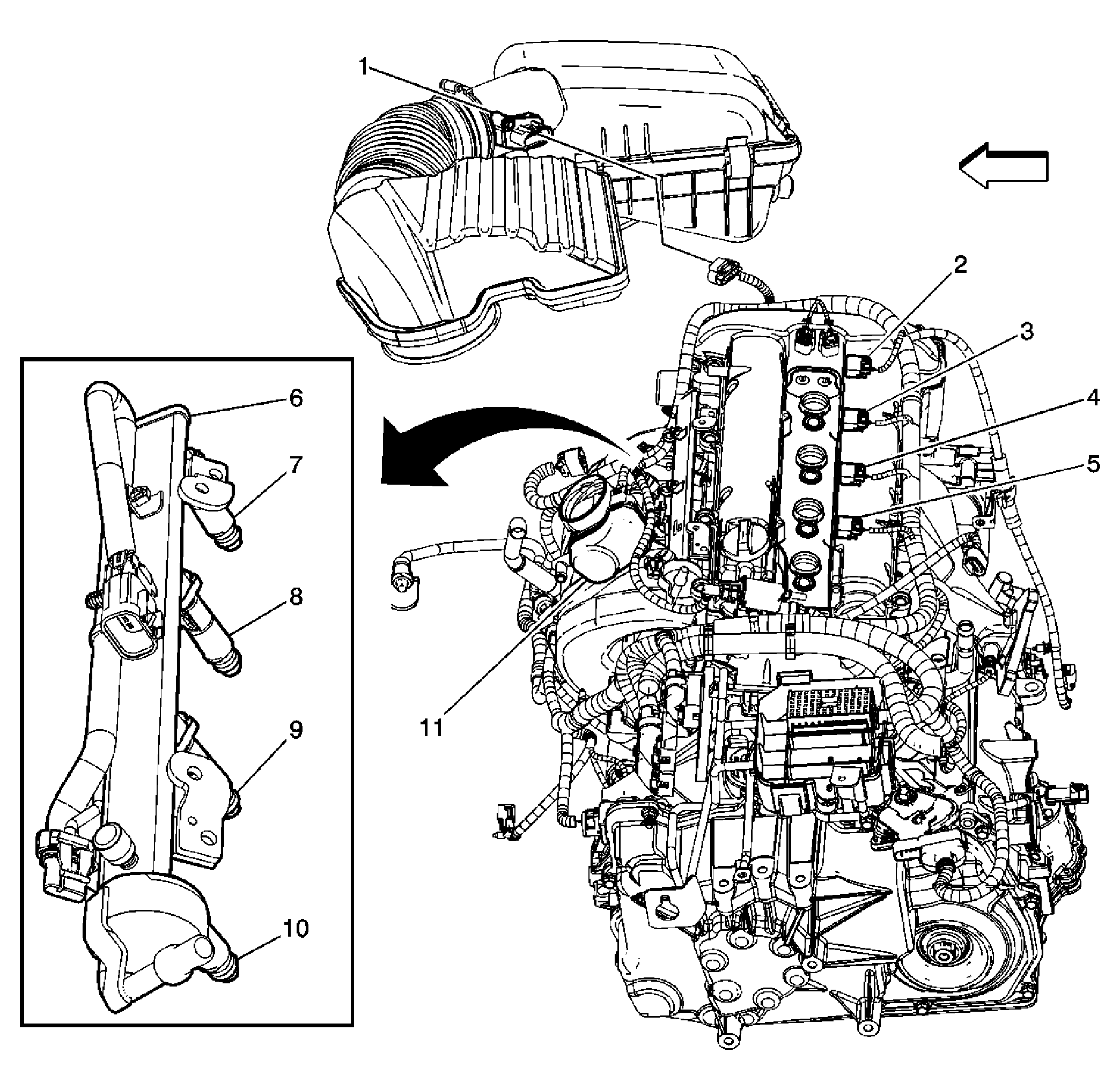

Engine Components- Left
Engine Components- Left
| Component Name | Callout |
|---|---|
| Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor | 1 |
| Ignition Coil Module 1 Connector | 2 |
| Ignition Coil Module 2 Connector | 3 |
| Ignition Coil Module 3 Connector | 4 |
| Ignition Coil Module 4 Connector | 5 |
| Fuel Rail | 6 |
| Fuel Injector 1 | 7 |
| Fuel Injector 2 | 8 |
| Fuel Injector 3 | 9 |
| Fuel Injector 4 | 10 |
| Throttle Actuator Control (TAC) Module | 11 |
