Engine Components- Lower Front

Engine Components- Lower Front

Component Name Callout
Generator 1
Starter 2
A/C Refrigerant Pressure Sensor 3
A/C Compressor Clutch 4

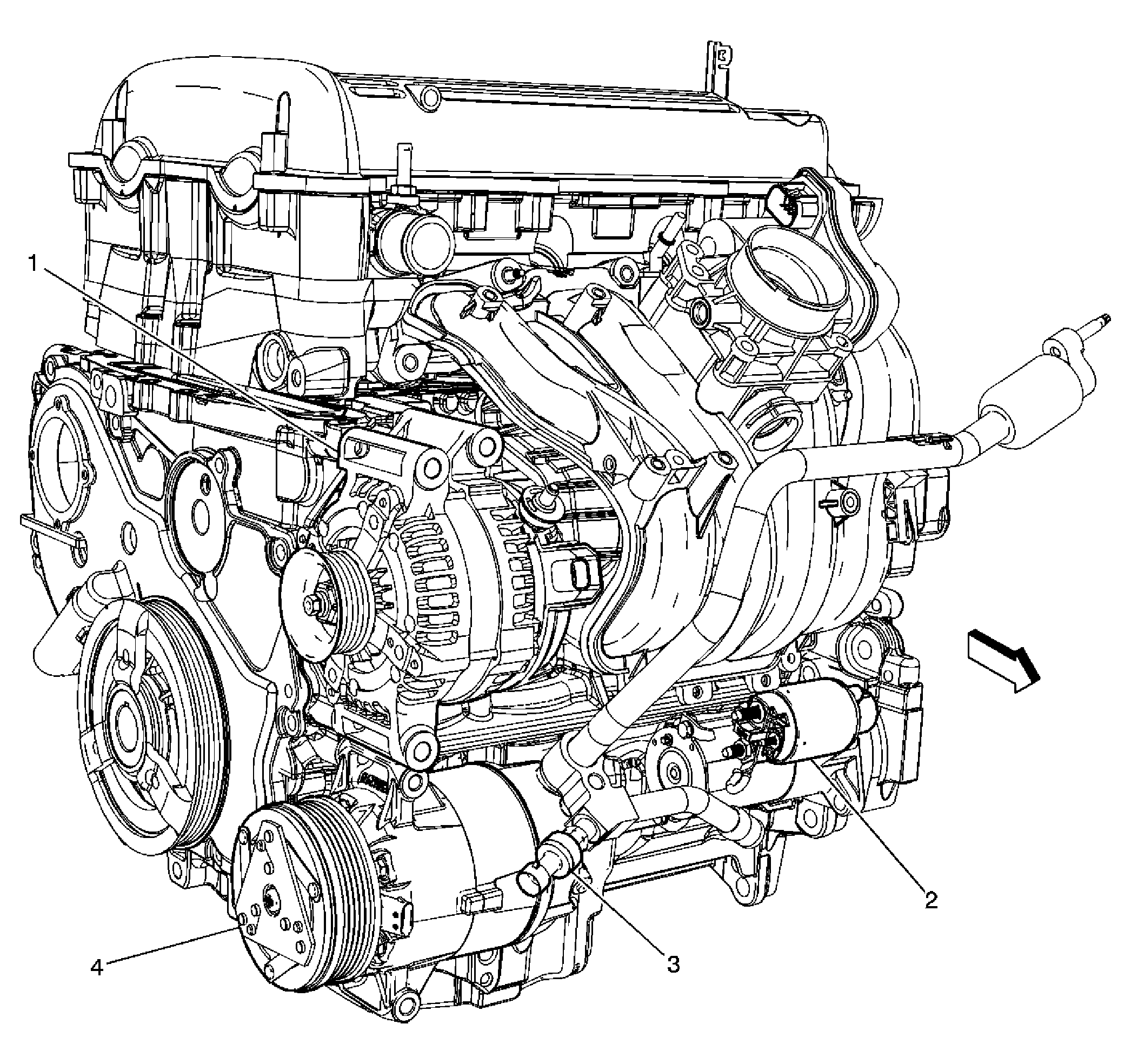

Fig 1: Lower Front Of Engine
GM1659164Courtesy of GENERAL MOTORS COMPANY
