Installation Procedure

    Fig 1: Throttle Body
    GM1623767Courtesy of GENERAL MOTORS COMPANY
  1. Install the throttle body.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the throttle body bolts and tighten to 10 N.m (89 lb in).

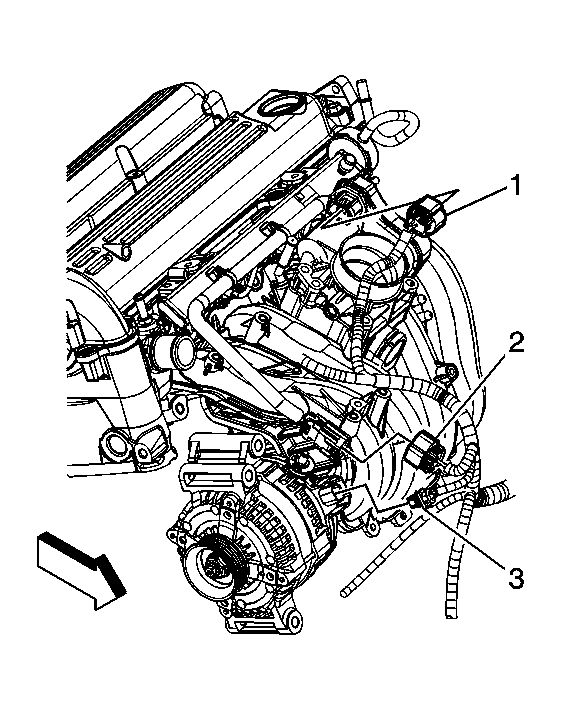

    3. Fig 2: TAC, Fuel Injector Harness & Generator Electrical Connectors
    GM1623764Courtesy of GENERAL MOTORS COMPANY
  3. Connect the TAC electrical connector (1).
  4. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  5. Perform the throttle learn procedure. Refer to Throttle/Idle Learn .
