Disassembled Views

Disassembled Views

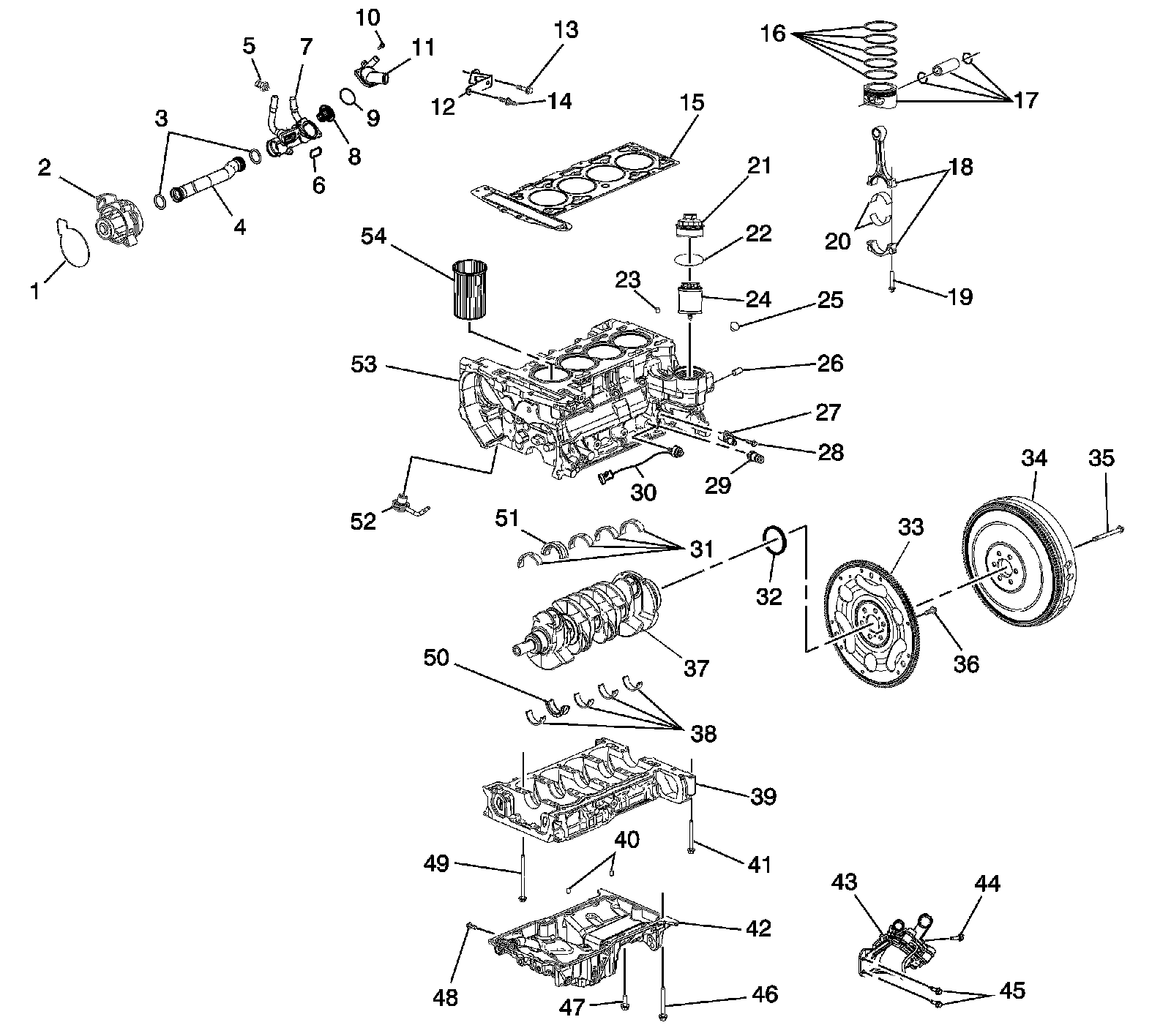

Engine Block and Components




1 - Water Pump to Engine Block Seal
2 - Water Pump
3 - Water Transfer Pipe O-ring Seals
4 - Water Transfer Pipe
5 - Coolant Temperature Sensor
6 - Thermostat Housing to Block Gasket
7 - Thermostat Housing
8 - Thermostat
9 - Thermostat Gasket
10 - Thermostat Housing Cap Bolt
11 - Thermostat Housing Cap
12 - Water Pipe Support Bracket
13 - Water Pipe Support Bracket Bolt
14 - Water Pipe Support Bracket Bolt Stud
15 - Cylinder Head Gasket
16 - Piston Ring Assembly
17 - Piston Assembly
18 - Connecting Rod
19 - Connecting Rod Cap Bolt
20 - Connecting Rod Bearing
21 - Oil Filter Cap
22 - Oil Filter Cap O-ring
23 - Cylinder Head Alignment Pin
24 - Oil Filter
25 - Engine Block Gallery Plug
26 - Engine Block to Transaxle Alignment Pin
27 - Crankshaft Position Sensor
28 - Crankshaft Position Sensor Bolt
29 - Oil Pressure Switch
30 - Knock Sensor
31 - Crankshaft Bearing - Upper
32 - Crankshaft Rear Seal
33 - Flywheel - Automatic Transmission
34 - Manual Transaxle Flywheel
35 - Manual Transaxle Flywheel Bolt
36 - Automatic Transaxle Flywheel to Crankshaft Bolt
37 - Crankshaft
38 - Crankshaft Bearing - Lower
39 - Lower Crankcase
40 - Engine Oil Pan Alignment Pins
41 - Lower Crankcase Perimeter Bolt
42 - Engine Oil Pan
43 - Air Pump Assembly
44 - Air Pump Assembly Bolt
45 - Air Pump Assembly Bolt
46 - Engine Oil Pan Long Bolt
47 - Engine Oil Pan Bolt
48 - Engine Oil Pan Drain Plug
49 - Lower Crankcase Main Bearing Bolt
50 - Crankshaft Thrust Bearing - Lower
51 - Crankshaft Thrust Bearing - Upper
52 - Piston Oil Nozzle Assembly
53 - Engine Block
54 - Cylinder Bore Sleeve
