Powertrain Component Views




Powertrain Component Views

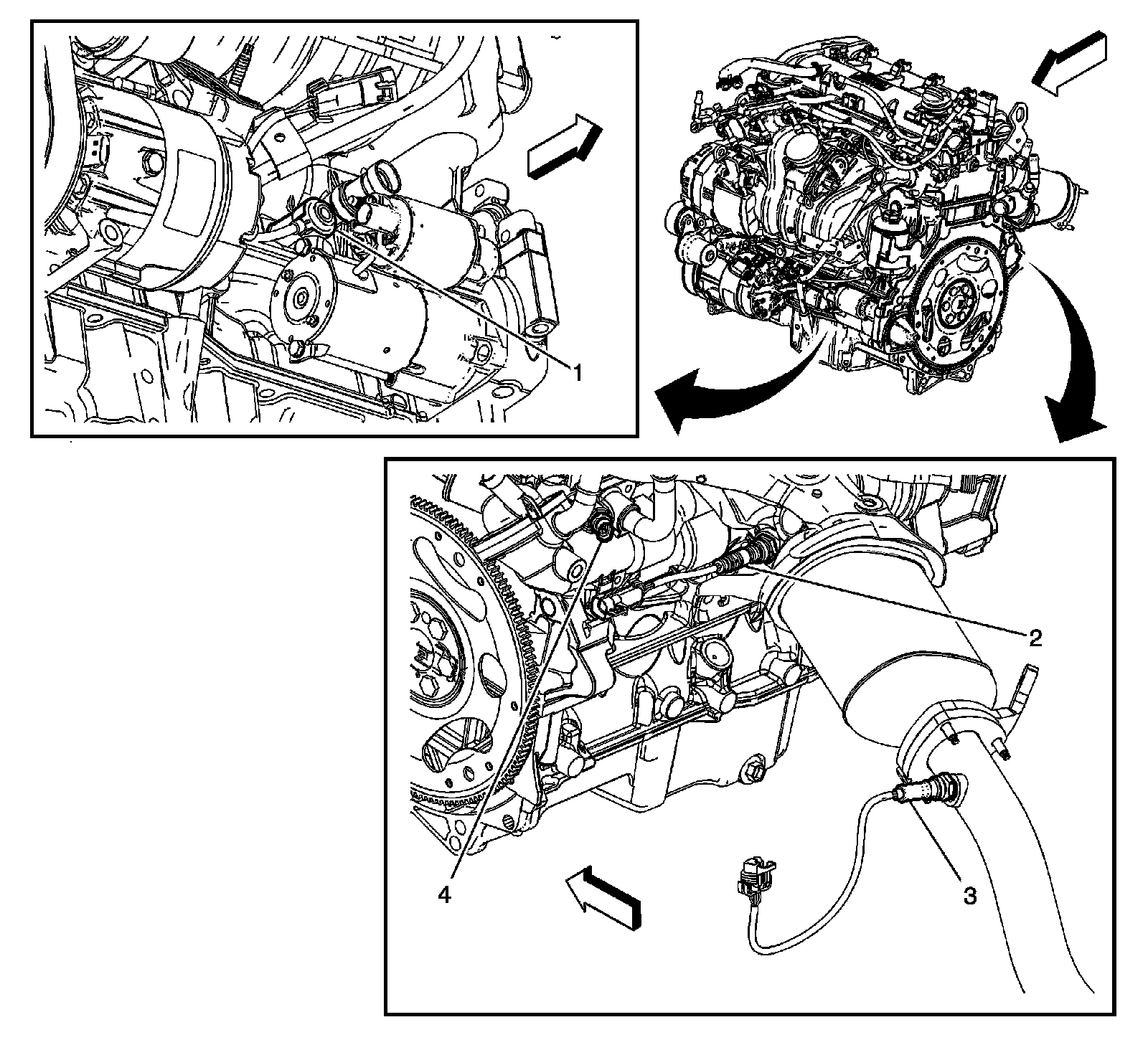

Lower Front and Rear of the Engine Components (LE5 or LE9)




1 - Knock Sensor (KS)
2 - Heated Oxygen Sensor (HO2S) 1
3 - Heated Oxygen Sensor (HO2S) 2
4 - Engine Coolant Temperature (ECT) Sensor
