Data Communication Wiring Schematics

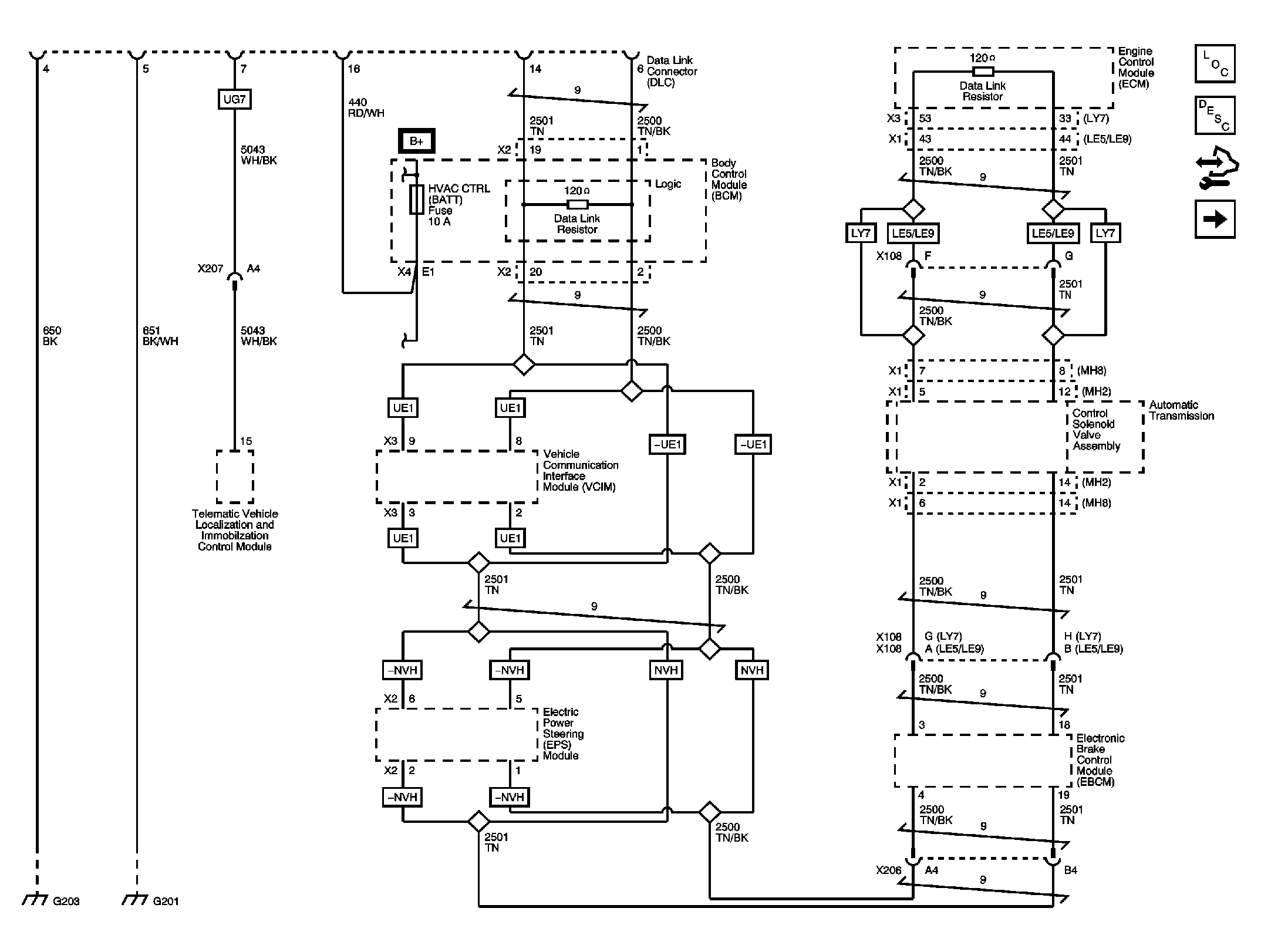

Fig 1: Power, Ground, and High Speed Serial Data Wiring Schematic
GM2400731Courtesy of GENERAL MOTORS CORP.

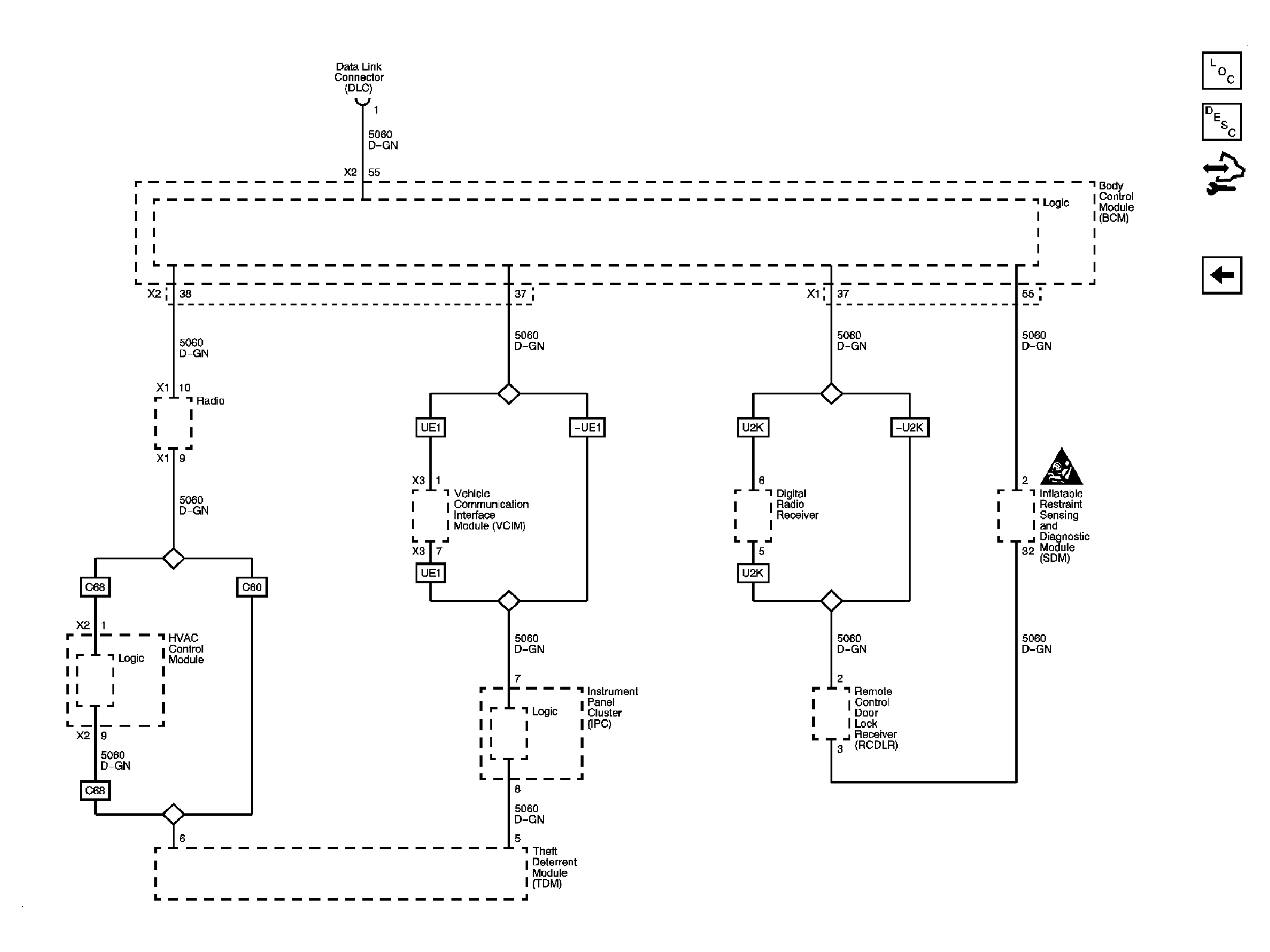

Fig 2: Low Speed Serial Data Wiring Schematic
GM2400735Courtesy of GENERAL MOTORS CORP.
