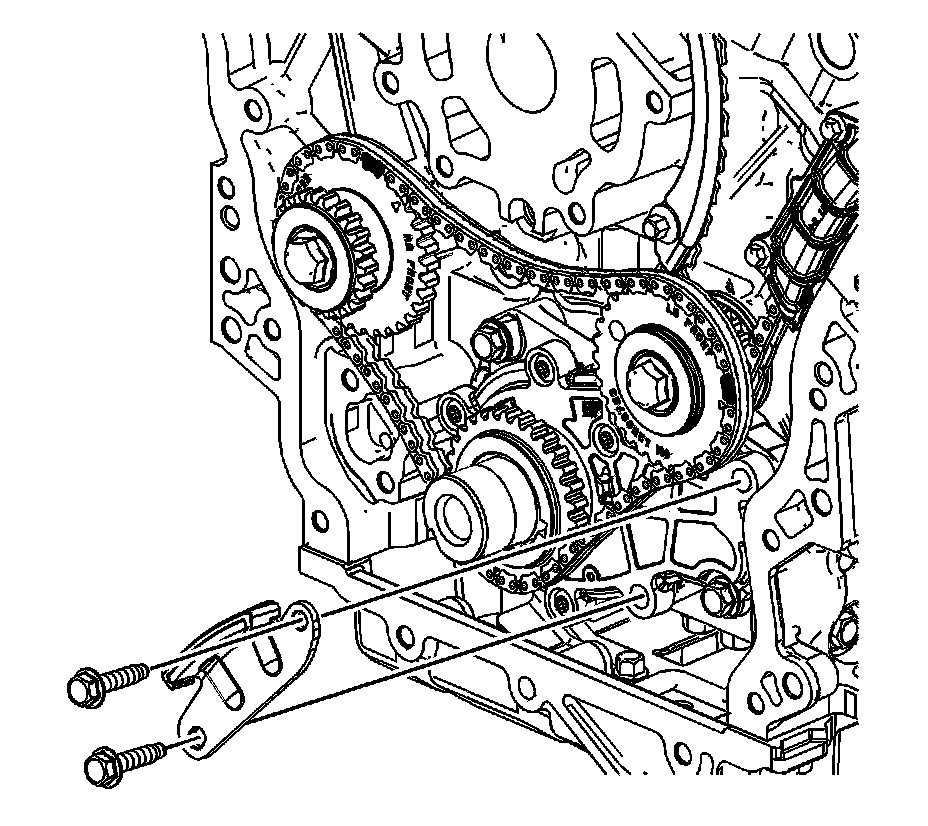

22. Primary Timing Chain Guide Removal - Lower

Primary Timing Chain Guide Removal - Lower




1. Remove the primary camshaft drive chain lower guide bolts.
2. Remove the primary camshaft drive chain lower guide.
