Combination Switch




Component Connector End Views

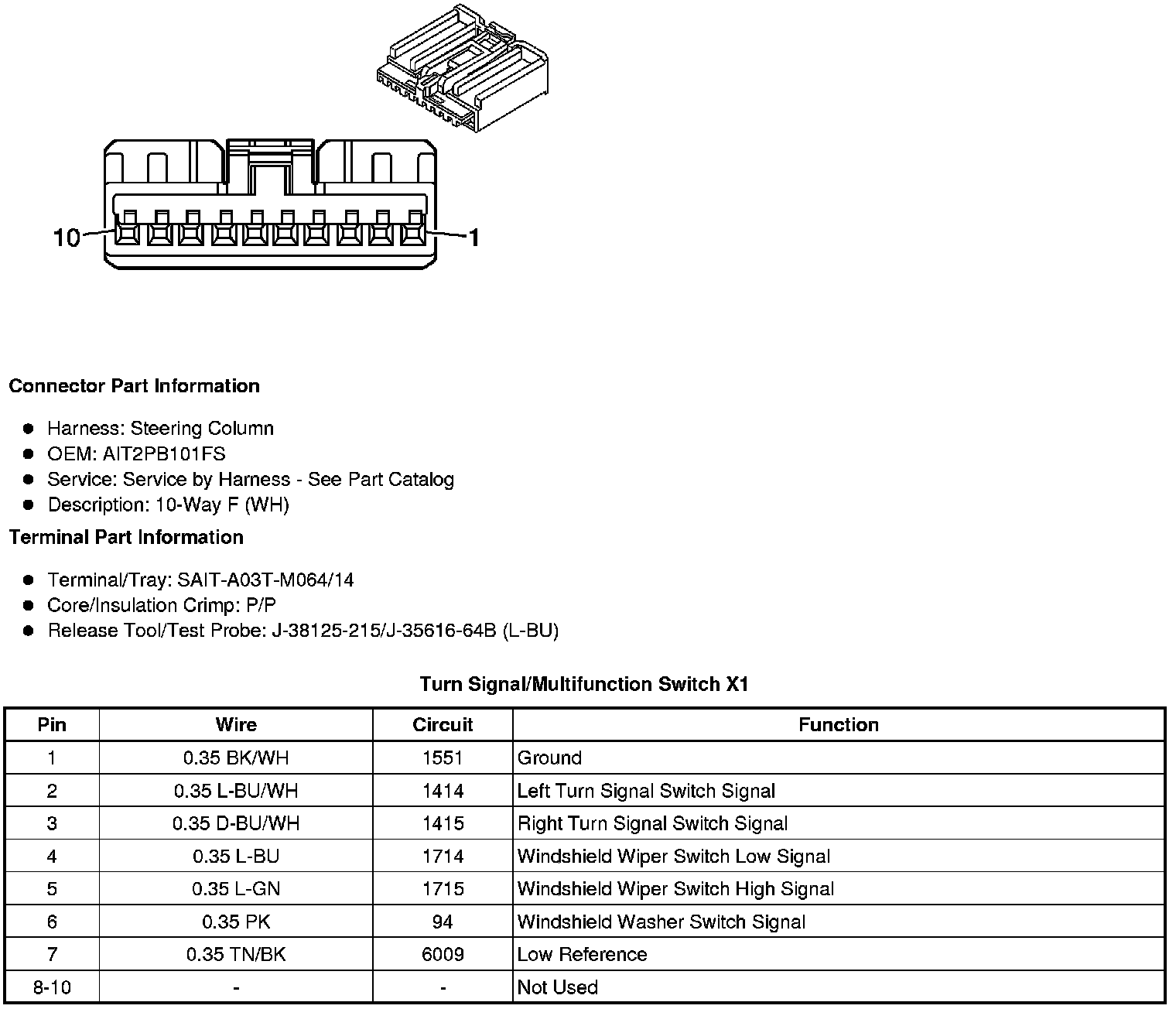

Turn Signal/Multifunction Switch X1

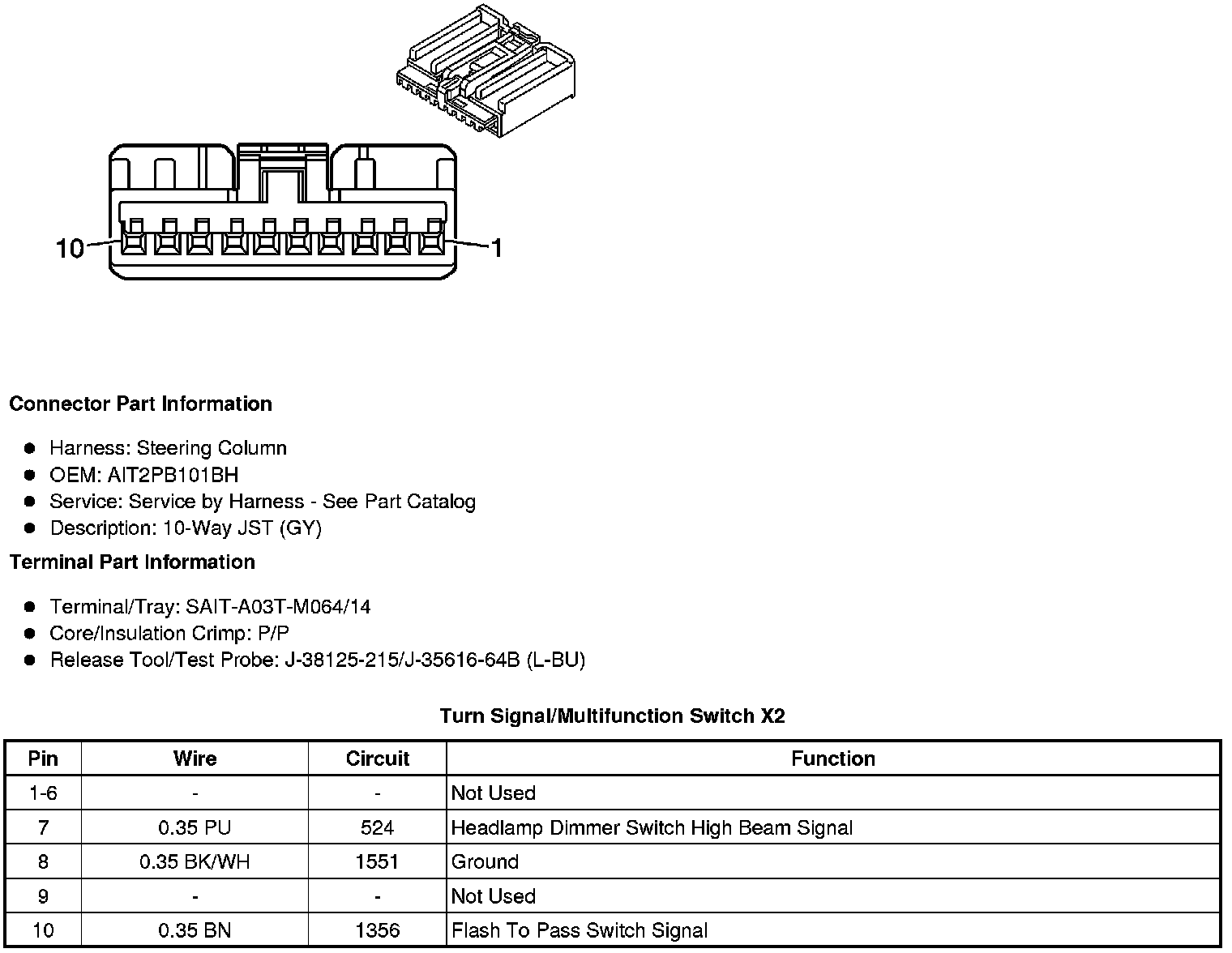

Turn Signal/Multifunction Switch X2
