Mobile Telephone Control Module Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

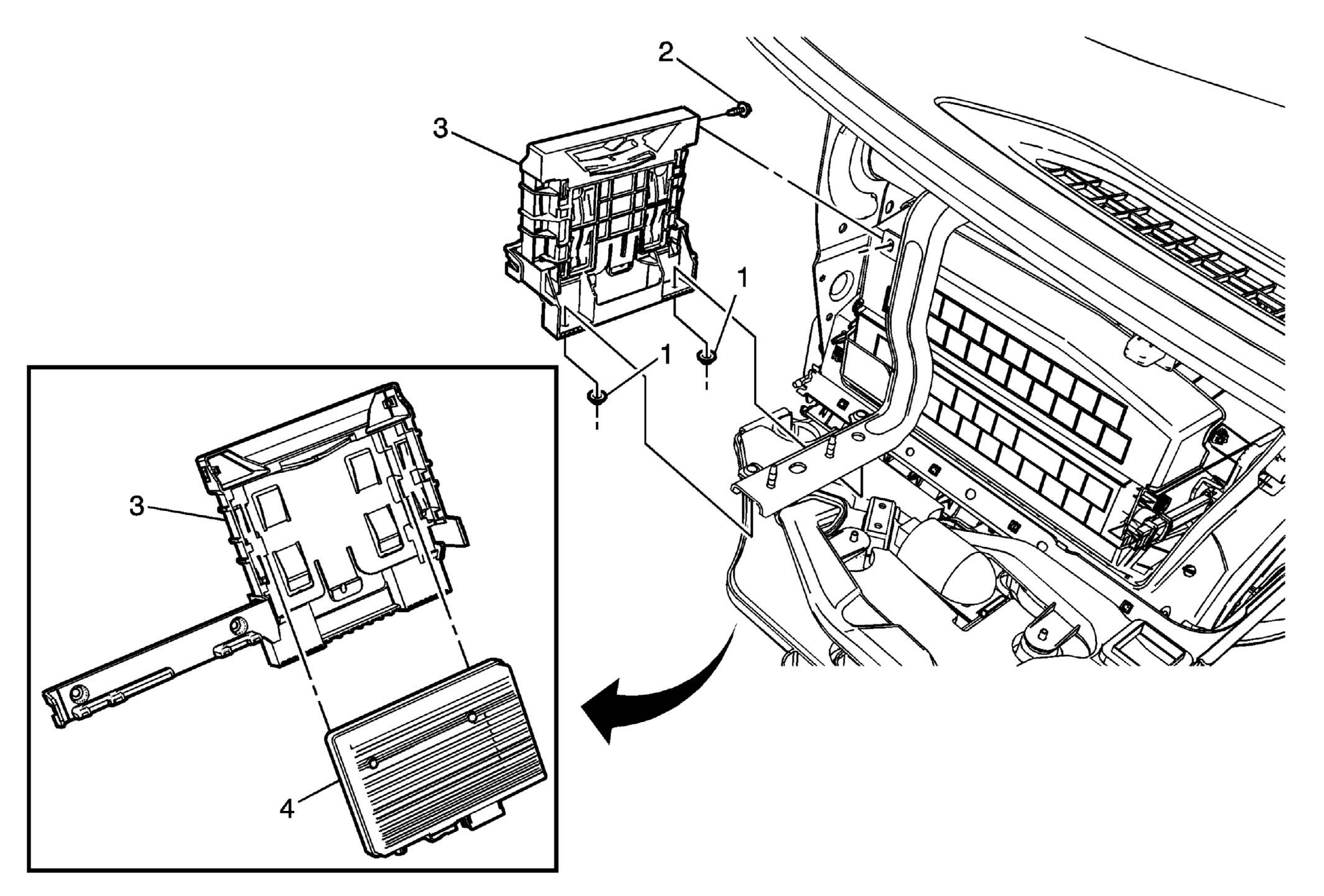

Fig 1: View Of Mobile Telephone Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement
1	Mobile Telephone Control Module Bracket Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Mobile Telephone Control Module Bracket Bolt Tighten: 2.5 N.m (22 lb in)
3	Mobile Telephone Control Module Bracket
4	Mobile Telephone Control Module Procedure Disconnect electrical connections. For programming and set up procedures, refer Control Module References
