Multimedia Player Interface Module Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

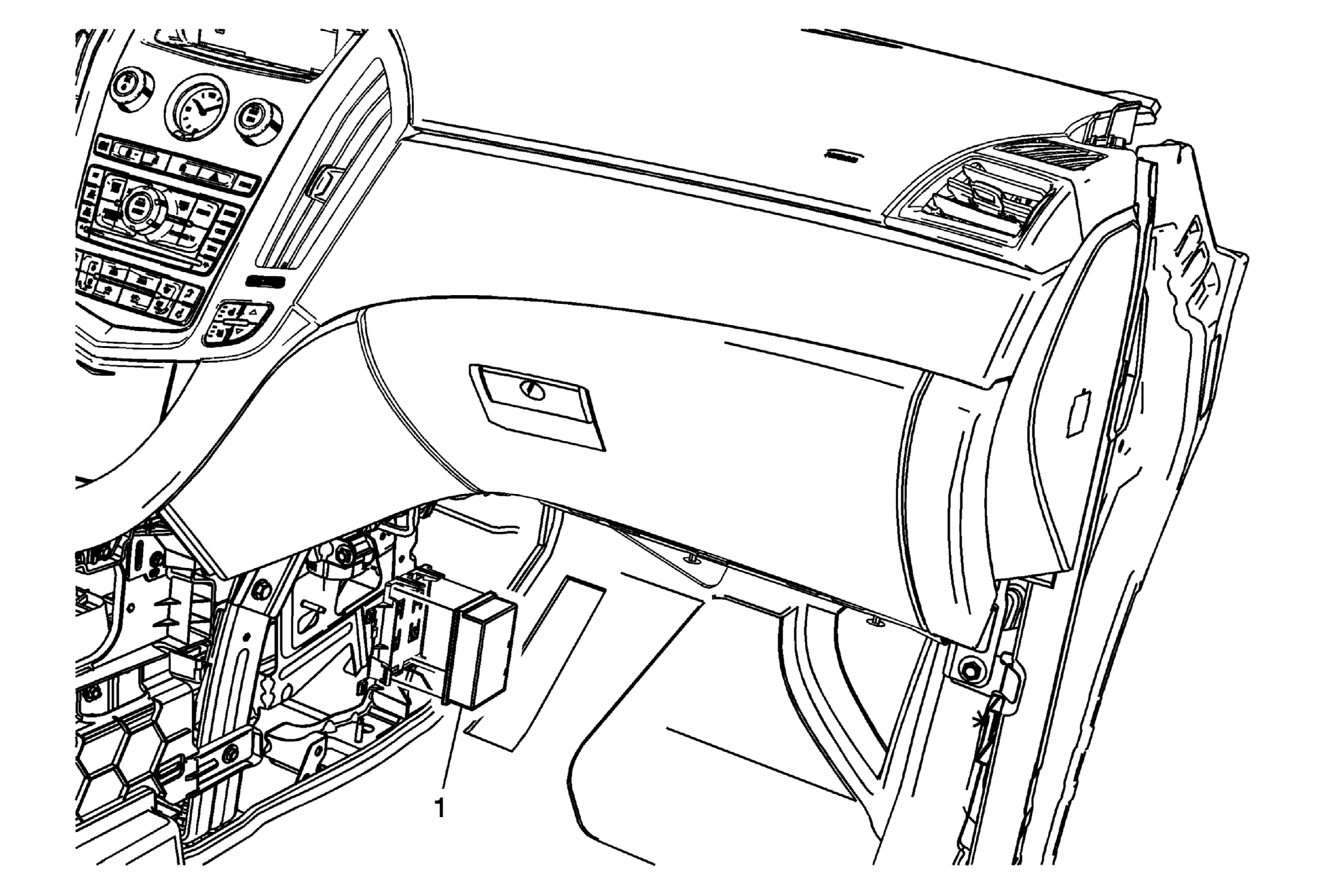

Fig 1: Locating Multimedia Player Interface Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front floor console extension. Refer to Front Floor Console Extension Replacement
1	Multimedia Player Interface Module Procedure Slide the module upwards after disengaging retaining clips. Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure:
Remove the front floor console extension. Refer to Front Floor Console Extension Replacement

Multimedia Player Interface Module

Procedure

Slide the module upwards after disengaging retaining clips.
Disconnect the electrical connectors.
