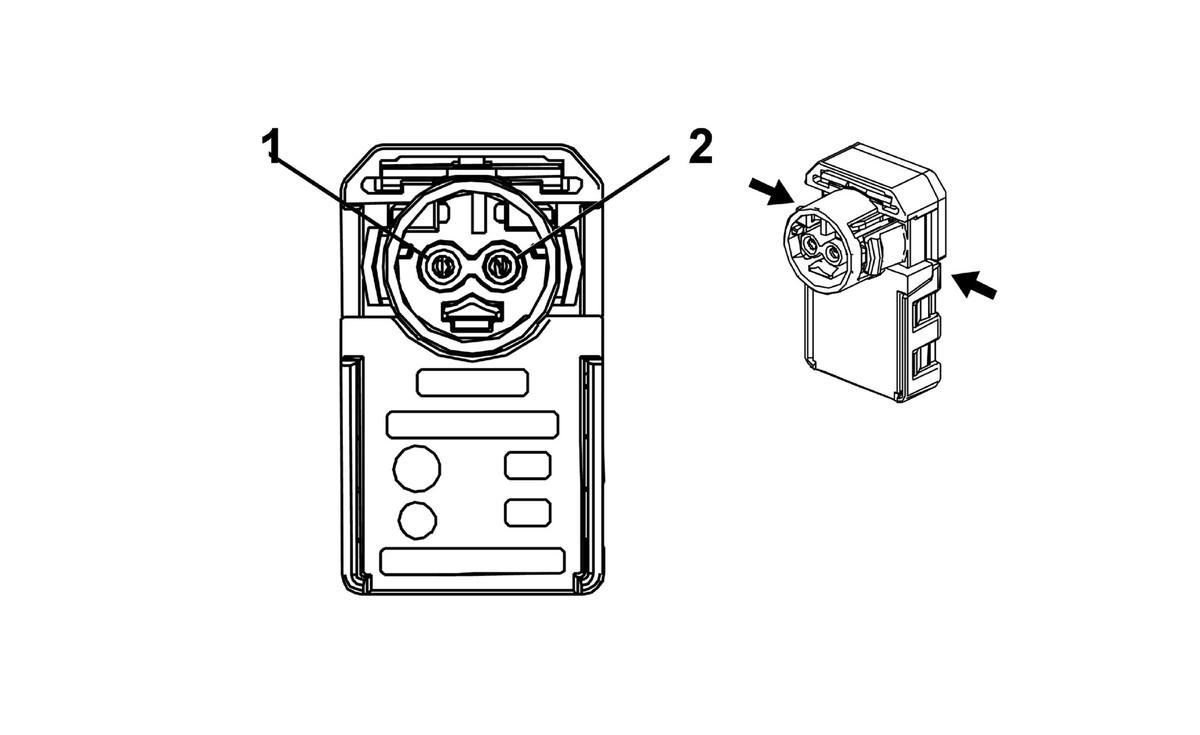

Inflatable Restraint Roof Rail Module - Driver
Courtesy of GENERAL MOTORS CORP. Inflatable Restraint Roof Rail Module - Driver
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 PU/WH |
5019 |
Roof Rail Module - Left - High Control |
| 2 |
0.35 PK |
5020 |
Roof Rail Module - Left - Low Control |
Connector Part Information
- Harness: Body
- OEM Connector: 13262034
- Service Connector: 13580445
- Description: 2-Way F (YE)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 13580445
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
