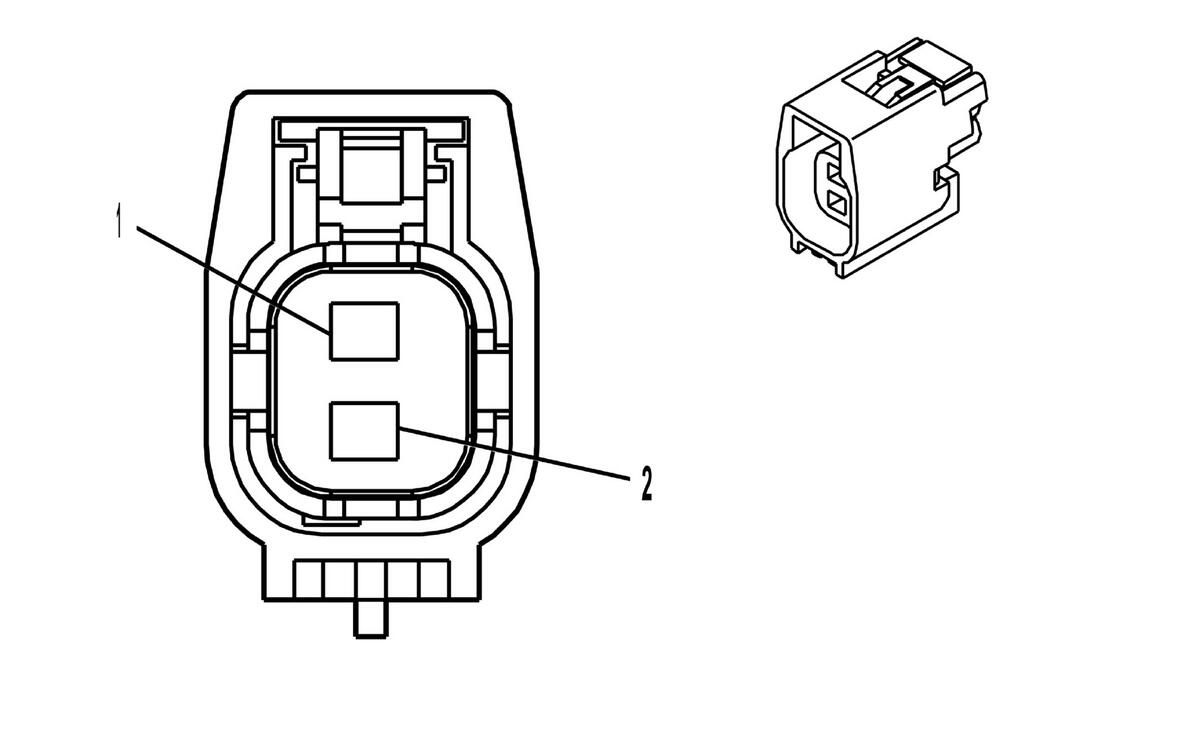

Wheel Speed Sensor (WSS) - Left Front
Courtesy of GENERAL MOTORS CORP. Wheel Speed Sensor (WSS) - Left Front
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 L-BU |
830 |
Left Front Wheel Speed Sensor Signal |
| 2 |
0.5 YE |
873 |
Low Reference |
Connector Part Information
- Harness Type: Engine
- OEM Connector: 7287-0973-30
- Service Connector: 19153615
- Description: 2-Way F GT 1.5 Series Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13578895
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 12191819/8
- Core/Insulation Crimp: E/1
|
