Window Switch - Driver X2 (without AXE)

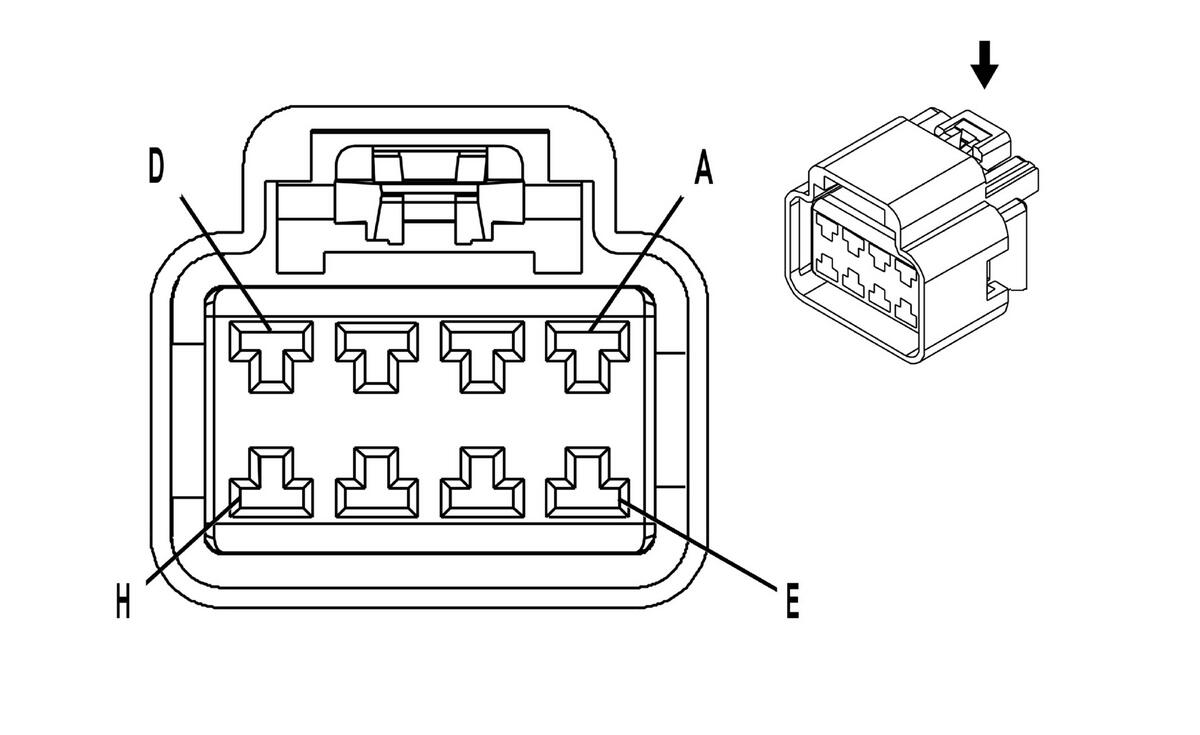

Fig 1: Window Switch - Driver X2 (without AXE) Connector End View
GM556473Courtesy of GENERAL MOTORS CORP.
Window Switch - Driver X2 (without AXE)

Pin Wire Circuit Function
A 3 BK 550 Ground
B-C - - Not Used
D 3 BN 165 Power Window Motor Left Front Down Control
E 3 D-BU 164 Power Window Motor Left Front Up Control
F 0.35 L-BU/WH 280 Power Window Master Switch Lockout Right Rear Signal
G 0.35 YE 43 Ignition Voltage
H 3 RD/WH 3340 Battery Positive Voltage
Connector Part Information
  • Harness Type: Driver Door Trim Panel
  • OEM Connector: 19177577
  • Service Connector: 19181247
  • Description: 8-Way F GT 280 Series (BK)
Terminal Part Information
  • Pins: A, D, E, H
  • Terminated Lead: 13575772
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
  • Pins: F, G
  • Terminated Lead: 13575753
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: E/A
