Windshield Washer Fluid Level Switch

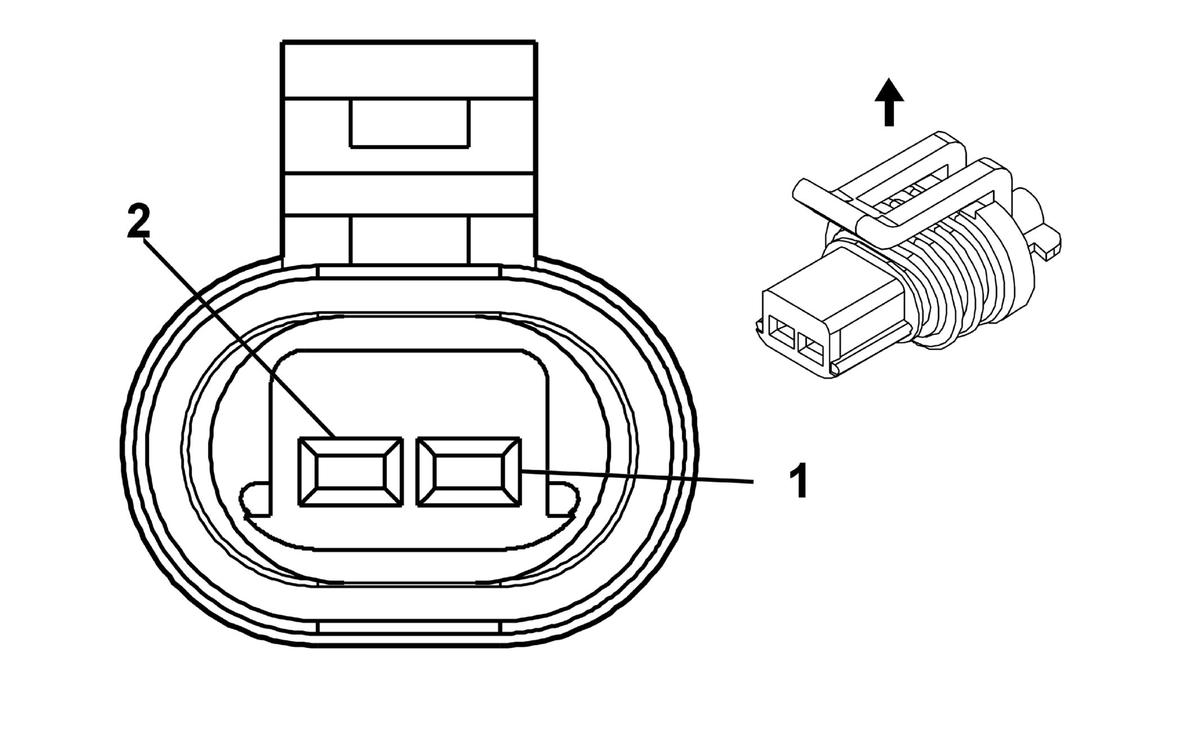

Fig 1: Windshield Washer Fluid Level Switch Connector End View
GM1940136Courtesy of GENERAL MOTORS CORP.
Windshield Washer Fluid Level Switch

Pin Wire Circuit Function
1 0.5 BK 1350 Ground
2 0.35 TN 185 Low Washer Fluid Indicator Control
Connector Part Information
  • Harness Type: Forward Lamp
  • OEM Connector: 15336024
  • Service Connector: 88987993
  • Description: 2-Way F GT 150 Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: 13575400
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 15326267/19
  • Core/Insulation Crimp: E/4
