Windshield Wiper Motor

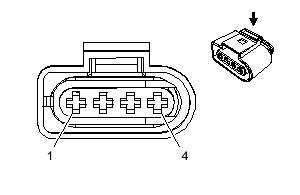

Fig 1: Windshield Wiper Motor Connector End View
GM1538775Courtesy of GENERAL MOTORS CORP.
Windshield Wiper Motor

Pin Wire Circuit Function
1 1 PU 92 Windshield Wiper Motor High Speed
2 1 D-GN 95 Windshield Washer Switch Signal
3 0.35 YE 196 Windshield Wiper Motor Park Switch Signal
4 1 BK 1650 Ground
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 638245-2
  • Service Connector: 88987987
  • Description: 4-Way F Junior Power Timer Series (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-36
  • Diagnostic Test Probe: J-35616-35 (VT)
  • Terminal/Tray: Pins: 1, 2, 4 - 4-964273-1/15
  • Terminal/Tray: Pins: 3 - 4-964286-1/16
  • Core/Insulation Crimp: E/1
