Blower Motor Control Module - Auxiliary (C69)

Luggage Compartment/Rear of Vehicle Component Views

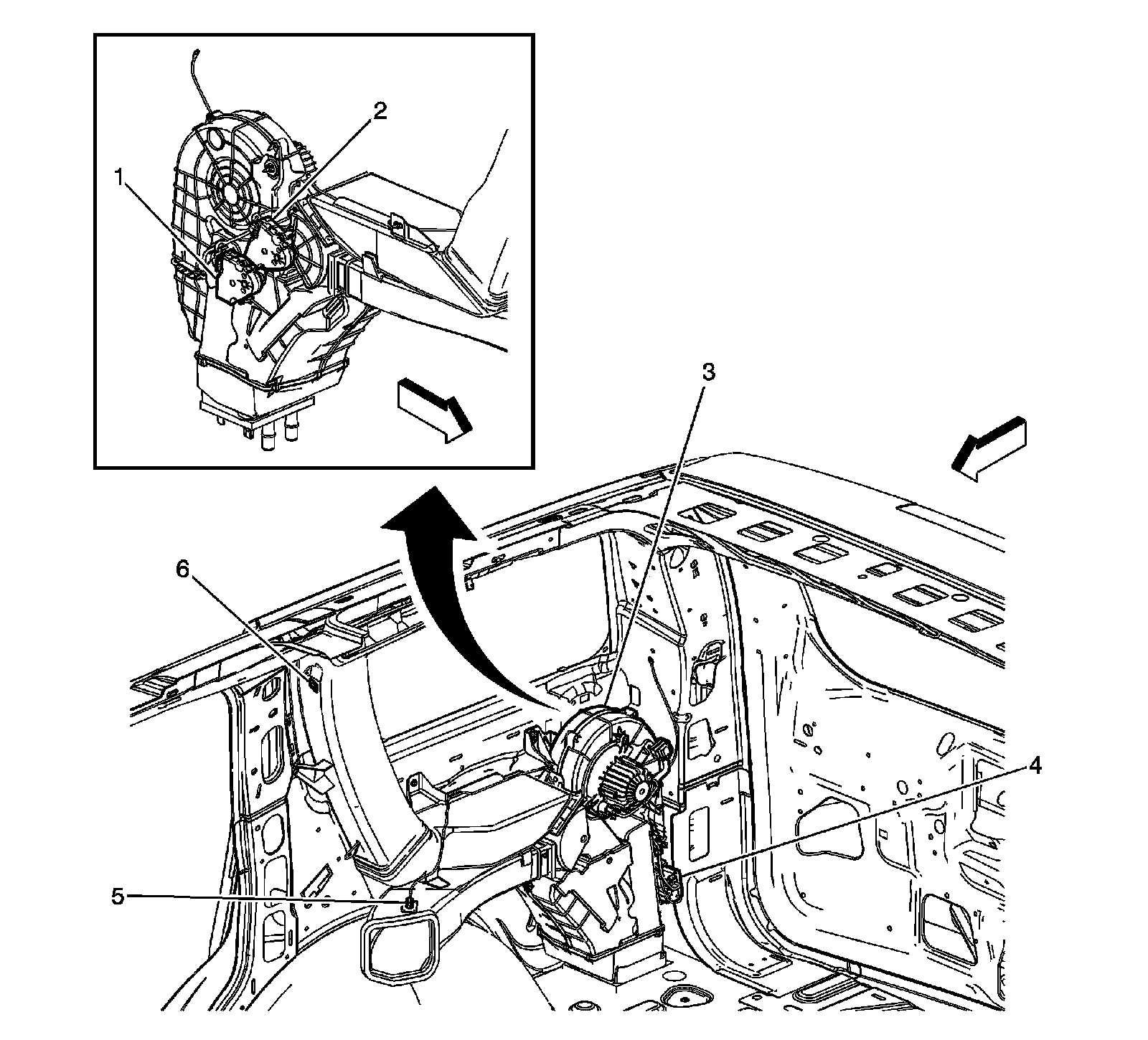

Auxiliary HVAC Components (SWB with C69)




1 - Air Temperature Actuator - Auxiliary (C69 with CJ2)
2 - Mode Actuator - Auxiliary (C69)
3 - Blower Motor - Auxiliary (C69)
4 - Blower Motor Control Module - Auxiliary (C69)
5 - Air Temperature Sensor - Lower Auxiliary (SWB with C69 or with CJ2)
6 - Air Temperature Sensor - Upper Auxiliary (SWB with C69 or with CJ2)
