Battery Replacement
Courtesy of GENERAL MOTORS COMPANY Battery Replacement

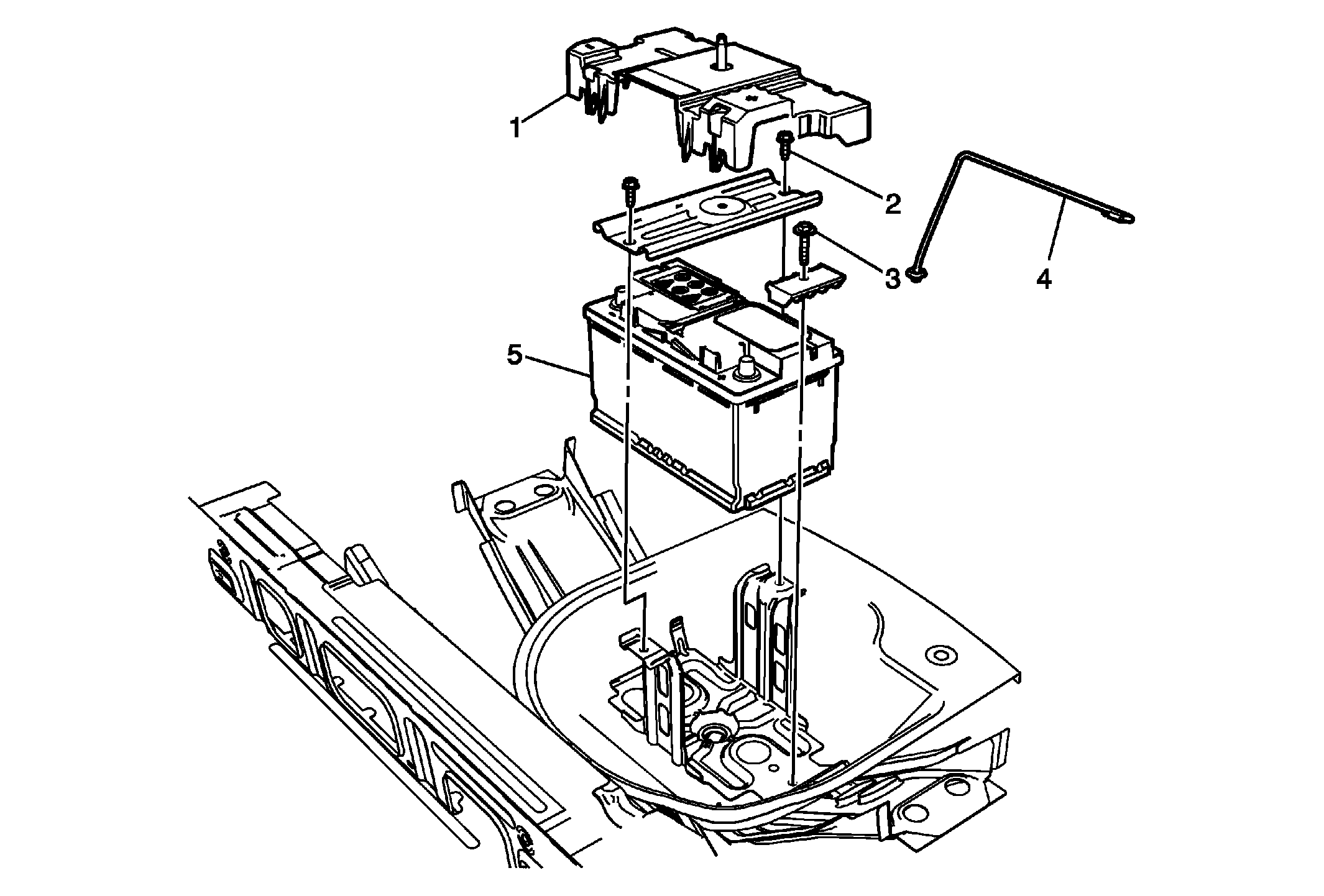

| Callout |
Component Name |
|
Preliminary Procedure
- Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
- Disconnect the positive battery cable from the battery. Refer to Battery Positive Cable Replacement
|
| 1 |
Battery Cover |
| 2 |
Battery Support Bolt (Qty: 2)
Tighten
22 N.m(16 lb ft) |
| 3 |
Battery Retainer Bolt |
| 4 |
Battery Vent Tube |
| 5 |
Battery |
