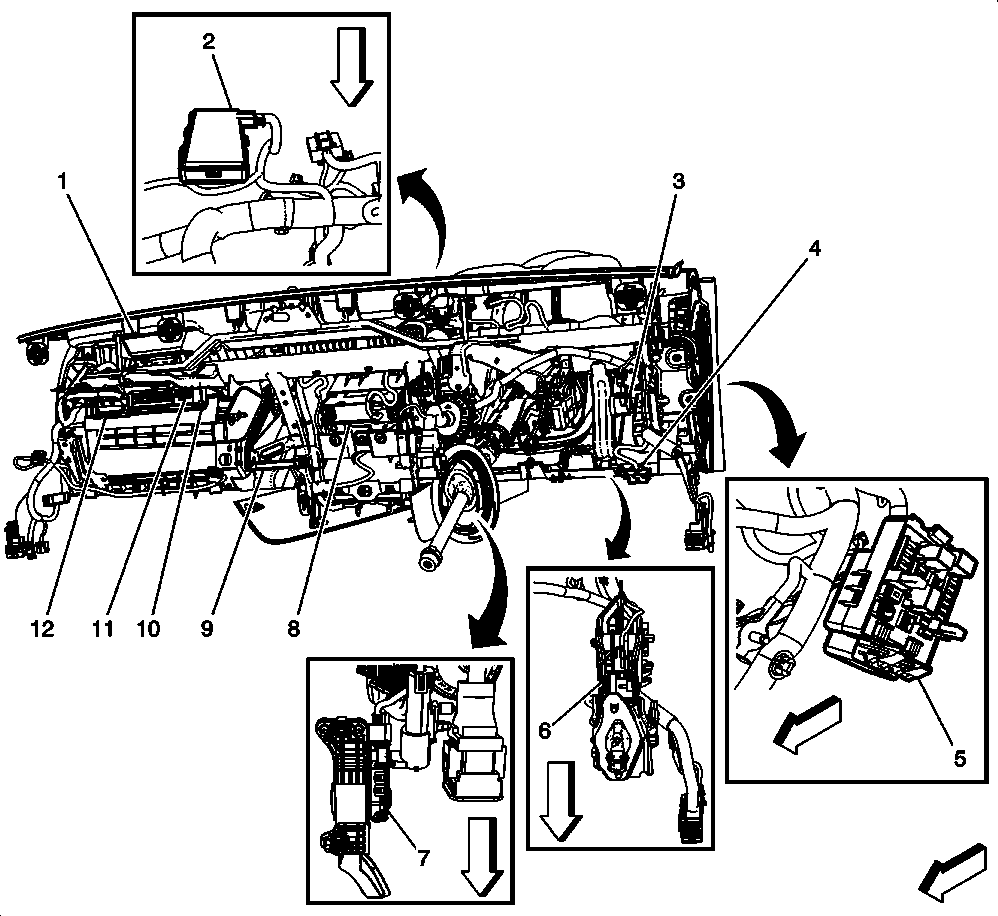

Behind the Instrument Panel Components
Behind the Instrument Panel Components
| Component Name | Callout |
|---|---|
| F105 Passenger Instrument Panel Air Bag | 1 |
| K77 Remote Control Door Lock Receiver (W/O BTV) | 2 |
| B22 Brake Pedal Position Sensor | 3 |
| X84 Data Link Connector | 4 |
| X51A Fuse Block - Instrument Panel | 5 |
| B25B Clutch Pedal Position Sensor (MV5/M10) | 6 |
| B107 Accelerator Pedal Position Sensor | 7 |
| A11 Radio | 8 |
| B39 A/C Evaporator Temperature Sensor | 9 |
| K73 Telematics Communication Interface Control Module (UE1) | 10 |
| T4S Wireless Communication Antenna - Bluetooth (UPF) | 11 |
| C3 Telematics Communication Interface Control Module Battery (UE1) | 12 |
