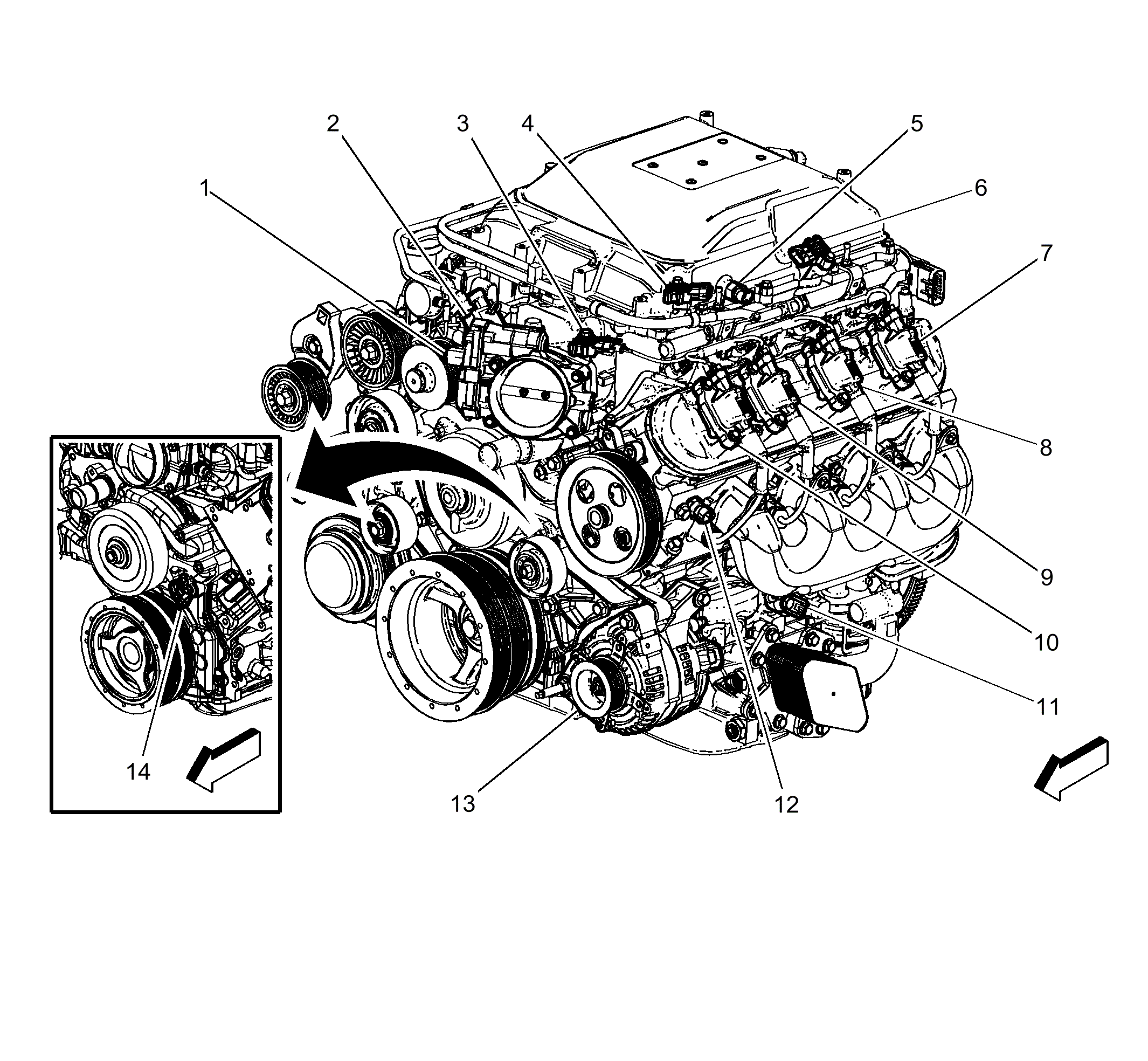

Engine Components - (LSA)
Engine Components - (LSA)
| Component Name | Callout |
|---|---|
| Q38 Throttle Body | 1 |
| Q12 Evaporative Emissions Canister Purge Solenoid Valve | 2 |
| B105 Supercharger Air Inlet Pressure Sensor | 3 |
| B74 Manifold Absolute Pressure Sensor | 4 |
| B66B Intake Air Temperature Sensor | 5 |
| B17 Barometric Pressure Sensor | 6 |
| T8G Ignition Coil 7 | 7 |
| T8E Ignition Coil 5 | 8 |
| T8C Ignition Coil 3 | 9 |
| T8A Ignition Coil 1 | 10 |
| B68A Knock Sensor 1 | 11 |
| B34 Engine Coolant Temperature Sensor | 12 |
| G13 Generator | 13 |
| B23 Camshaft Position Sensor | 14 |
