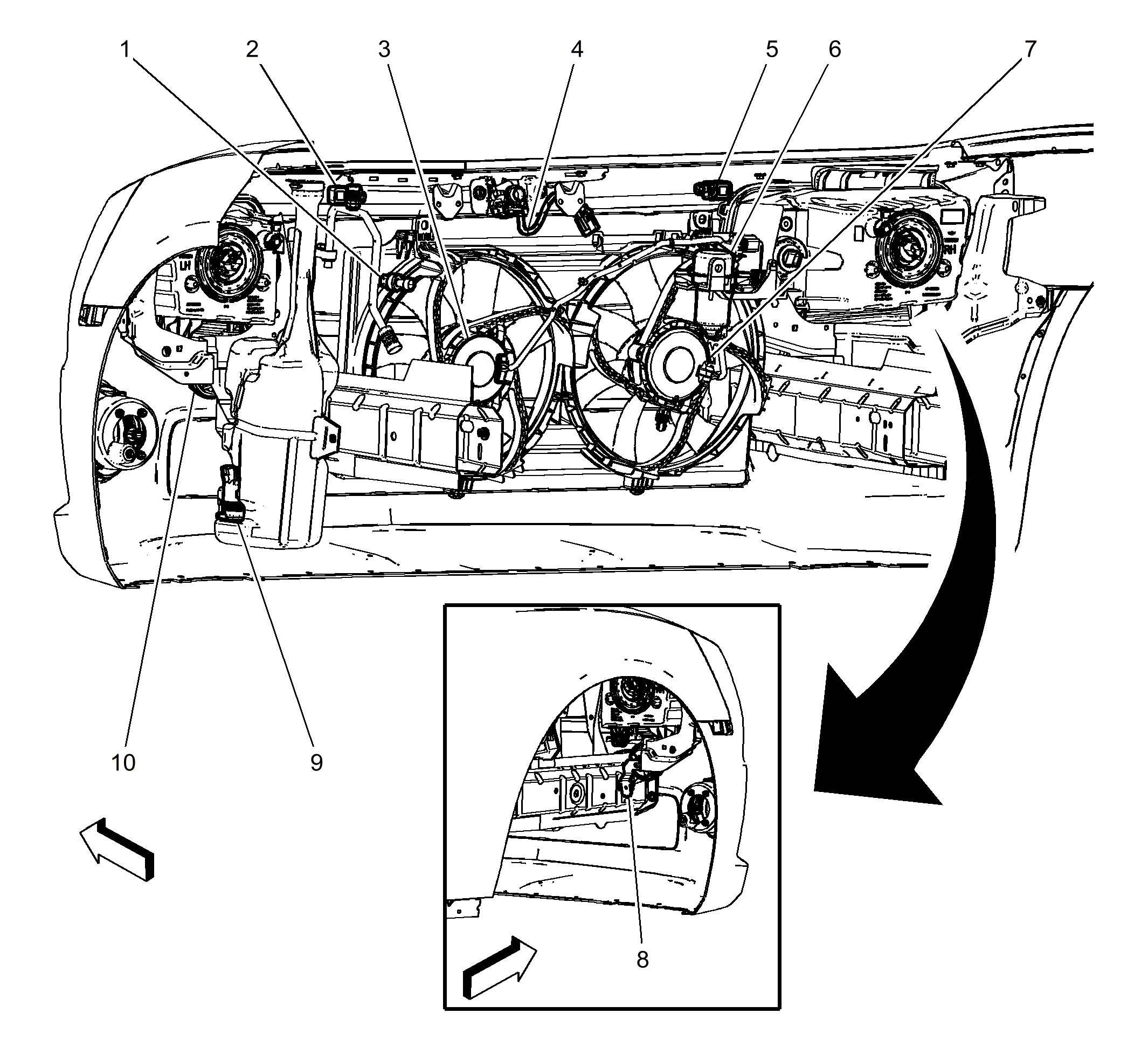

Front of Engine Compartment Components
Front of Engine Compartment Components
| Component Name | Callout |
|---|---|
| B1 A/C Refrigerant Pressure Sensor | 1 |
| B59L Front Impact Sensor- Left | 2 |
| G10L Cooling Fan Motor- Left | 3 |
| B55 Hood Ajar Switch | 4 |
| B59R Front Impact Sensor- Right | 5 |
| G6 Brake Booster Pump- Auxiliary (LFX) | 6 |
| G10R Cooling Fan Motor- Right | 7 |
| P12A Horn- High Note | 8 |
| G24 Windshield Washer Pump | 9 |
| P12B Horn- Low Note | 10 |
